Description

Price

1

LH ARM - Call your local BRP dealership

706200175

Unavailable

2

RH Arm

706200176

Unavailable

3

Cushion

706200063

Unavailable

4

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

Unavailable

6

Front Shock

706200183

Unavailable

7

Red Front Spring

706200240

Unavailable

8

Spring Stopper

706200881

Unavailable

9

Spring Seat

706000197

Unavailable

10

INNER BUSHING - Call your local BRP dealership

706200177

Unavailable

11

Hex. Flange Screw M10 X 50

207605044

Unavailable

12

Hex. Flange Elastic Nut M10

233201414

Unavailable

13

CUSHION - Call your local BRP dealership

706200169

Unavailable

14

Grease Fitting

408200700

Unavailable

15

Synthetic Grease, 400 G

293550010

Unavailable

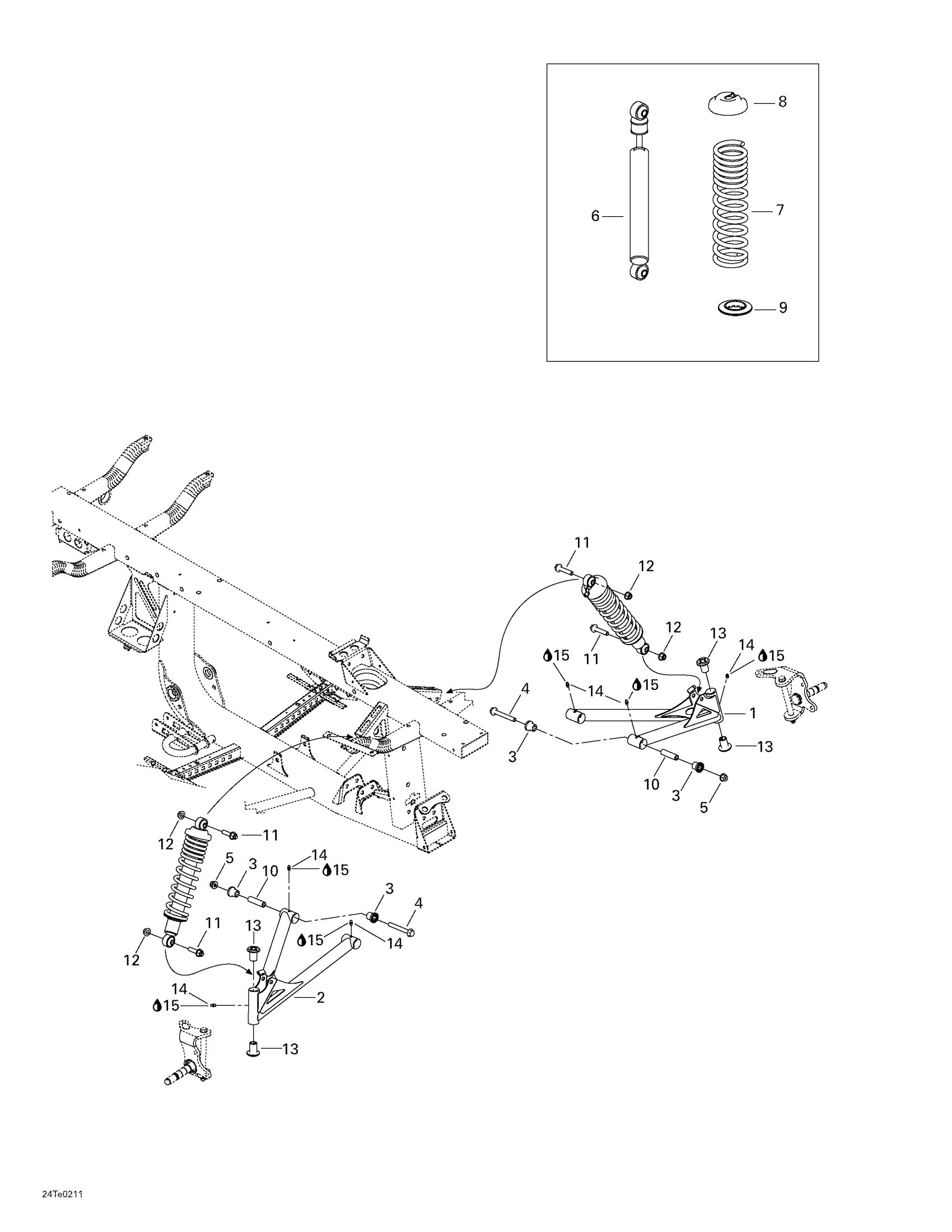

Can-Am Rally, 2003 07- Front Suspension Diagram

LH ARM - Call your local BRP dealership

RH Arm

Cushion

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

Hex. Flange Elastic Nut M10

Front Shock

Red Front Spring

Spring Stopper

Spring Seat

INNER BUSHING - Call your local BRP dealership

Hex. Flange Screw M10 X 50

Hex. Flange Elastic Nut M10

CUSHION - Call your local BRP dealership

Grease Fitting

Synthetic Grease, 400 G
