06- Hydraulic Brake

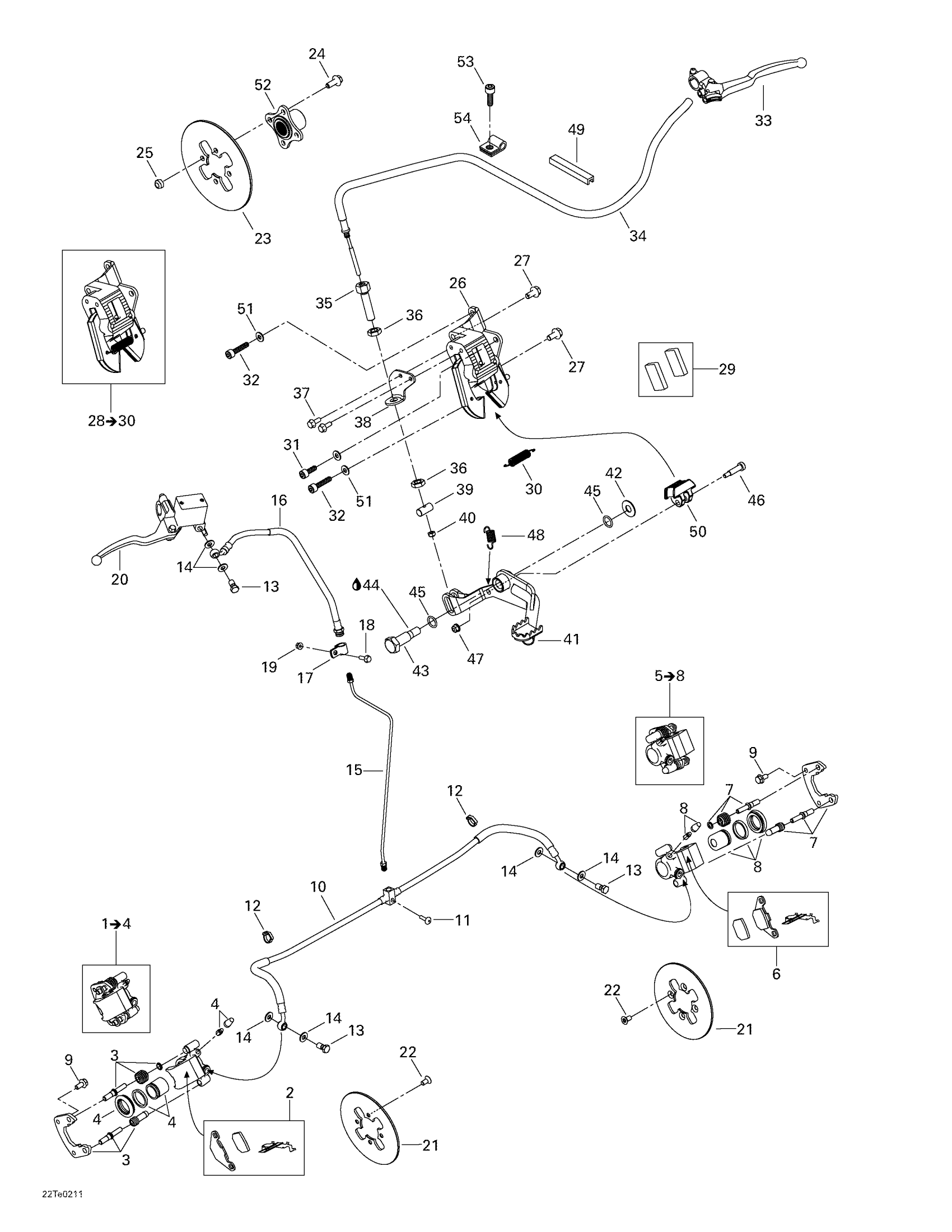

Can-Am Rally, 2003 06- Hydraulic Brake Diagram
#
1
RH Caliper Ass'y | Includes 1 - 4.
705600217
Unavailable
2
Brake Pad Kit
705600285
Unavailable
3
BOOT KIT - Call your local BRP dealership
705600286
Unavailable
4
PISTON SET - Call your local BRP dealership
705600287
Unavailable
5
LH Caliper Ass'y | Includes 5 - 8.
705600218
Unavailable
6
Brake Pad Kit
705600285
Unavailable
7
BOOT KIT - Call your local BRP dealership
705600286
Unavailable
8
PISTON SET - Call your local BRP dealership
705600287
Unavailable
9
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
10
Flexible Hose
705600221
Unavailable
11
Torx Screw M6 X 25 | XT Models
250000728
Unavailable
12
Tie-Rap 180 mm
414115200
Unavailable
13
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
14
Washer
414920600
Unavailable
15
Vertical Tube
705600220
Unavailable
16
Brake Handle Hose
705600231
Unavailable
17
Open Clamp
705600040
Unavailable
18
Hex. Flange Screw M6 X 20
207662044
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Master Cylinder
705600219
Unavailable
21
FRONT BRAKE DISC - Call your local BRP dealership
705600223
Unavailable
22
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
23
Brake Disc
705600195
Unavailable
24
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
25
Hex. Flange Elastic Nut M8
233281414
Unavailable
26
Caliper Support
705600205
Unavailable
27
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
28
Rear Caliper Ass'y | Includes 28 - 30.
705600313
Unavailable
29
BRAKE PAD KIT - Call your local BRP dealership
705600213
Unavailable
30
Spring
705600222
Unavailable
31
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
32
Socket Head Screw M8 X 35, Scotch Grip
205583544
Unavailable
33
Brake Handle
705600273
Unavailable
34
Brake Cable
705600274
Unavailable
35
Adjuster Screw
705000559
Unavailable
36
HEX. NUT M12 - Call your local BRP dealership
232120414
Unavailable
37
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
38
Cable Support
705600278
Unavailable
39
Cable Barrel
705600293
Unavailable
40
Elastic Stop Nut M6
232561414
Unavailable
41
Brake Pedal
705600214
Unavailable
42
Washer
414823700
Unavailable
43
PIVOT - Call your local BRP dealership
705600201
Unavailable
44
Synthetic Grease, 400 G
293550010
Unavailable
45
O-RING - Call your local BRP dealership
293300053
Unavailable
46
Socket Screw M6 x 25
250000112
Unavailable
47
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
48
BRAKE PEDAL SPRING - Call your local BRP dealership
705600288
Unavailable
49
Was 271000110 Protection Trim
219704353
Unavailable
50
Slider
705600202
Unavailable
51
Flat Washer 8 mm
234081410
Unavailable
52
Welded Bushing
705600196
Unavailable
53
Scotch Grip Socket Screw M8 X 20
205582044
Unavailable
54
Open Clamp
705600312
Unavailable
