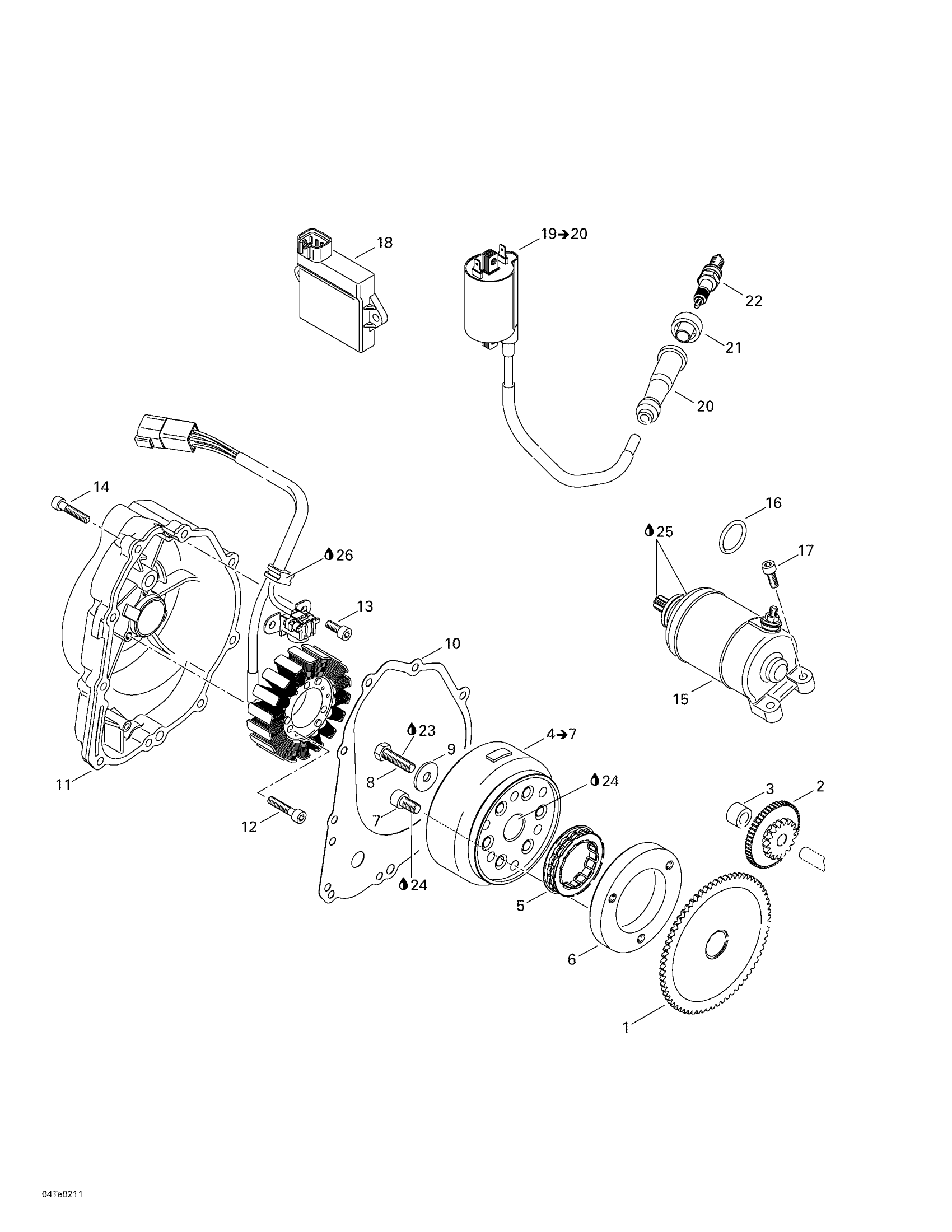

Can-Am Rally, 2003 03- Magneto Diagram

#

Description
Price

1

Free Wheal Gear 67 Ass'y

711635150

Unavailable

2

Idle Gear 54/17T

711634460

Unavailable

3

Distance Sleeve

711247930

Unavailable

4

AC Generator | Includes 4 - 7.

711295558

Unavailable

5

Sprag Clutch

711259495

Unavailable

6

Sprag Clutch Housing

711259480

Unavailable

7

Socket Screw M8 x 16

711641590

Unavailable

8

SCREW M8 X 30 - Call your local BRP dealership

420940485

Unavailable

9

Plain Washer

420227937

Unavailable

10

Gasket

711650195

Unavailable

11

Ignition Cover

711610650

Unavailable

12

Socket Head Screw M6 X 30

205063044

Unavailable

13

Socket Head Screw M6 x 16

420241237

Unavailable

14

Socket Head Screw M6 X 30

205063044

Unavailable

15

Electric Starter

711296390

Unavailable

15

BRUSH KIT (NOT SHOWN) - Call your local BRP dealership

420266300

Unavailable

16

O-Ring

420250140

Unavailable

17

Socket Head Screw M6 X 20

205062044

Unavailable

18

Electronic Module

711265634

Unavailable

19

Ignition Coil

711265418

Unavailable

20

Spark Plug Connector

711265242

Unavailable

21

Rubber Grommet

711660430

Unavailable

22

Spark Plug

219703176

Unavailable

23

Loctite 243, 10 ml

293800060

Unavailable

24

Sealant Loctite 648

219703000

Unavailable

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

Unavailable
