01- Crankshaft And Pistons

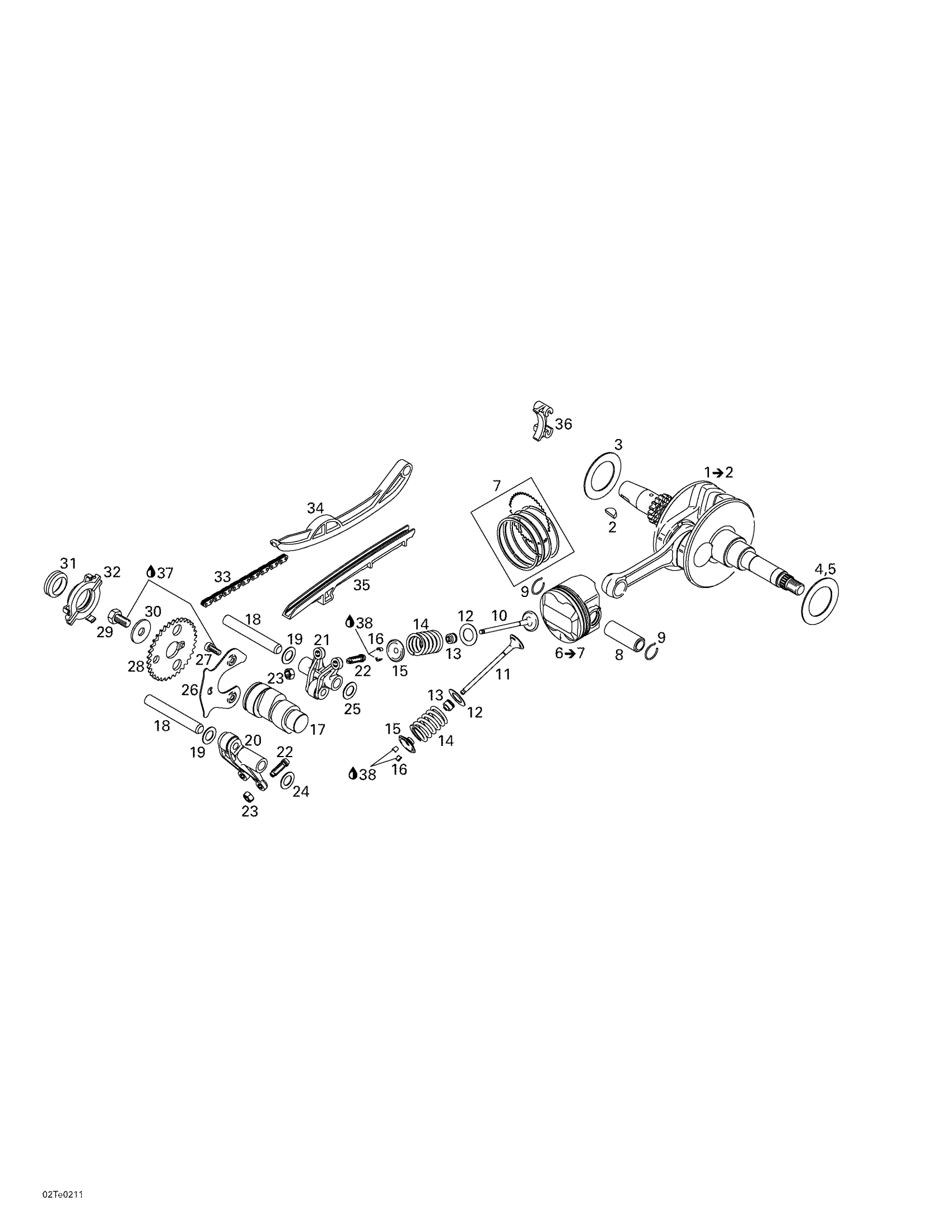

Can-Am Rally, 2003 01- Crankshaft And Pistons Diagram
#
1
Crankshaft Ass'y | Includes 1 - 2.
711296420
Unavailable
2
Woodruff Key 4 X 5
420246570
Unavailable
3
Thrust Washer
711627110
Unavailable
4
Thrust Washer
711627111
Unavailable
5
Thrust Washer
711627112
Unavailable
6
Piston Ass'y | Includes 6 - 7.
711296700
Unavailable
7
Piston Ring Set
711296704
Unavailable
8
Piston Pin
711216210
Unavailable
9
Circlip Piston
711245805
Unavailable
10
Inlet Valve 20 mm
711253880
Unavailable
11
Exhaust Valve 18 mm
711253892
Unavailable
12
Thrust Washer
711227451
Unavailable
13
Seal Valve
711650120
Unavailable
14
Valve Spring
711239360
Unavailable
15
Valve Spring Retainer
711253902
Unavailable
16
Valve Cotter
711253840
Unavailable
17
Camshaft
711220315
Unavailable
18
Pin
711229410
Unavailable
19
Thrust Washer
711627100
Unavailable
20
Rocket Arm Exhaust
711253878
Unavailable
21
Rocket Arm Inlet
711253868
Unavailable
22
Adjustment Screw M6 X 0.75
420241337
Unavailable
23
Hex Nut M6
420242913
Unavailable
24
Thrust Washer
711627100
Unavailable
25
Thrust Washer
420827590
Unavailable
26
Retaining Plate
711251040
Unavailable
27
Socket Screw M5 x 12
420241841
Unavailable
28
Timing Gear 34T
711634380
Unavailable
29
Hex. Screw M8 x 16
207181644
Unavailable
30
Plain Washer
420227937
Unavailable
31
V-Ring 20S FPM Blow By Valve
420630125
Unavailable
32
Cover
711660180
Unavailable
33
Camshaft Chain
711297932
Unavailable
34
Chain Tension Guide
711236270
Unavailable
35
Chain Guide
711236280
Unavailable
36
Chain Guide
420236351
Unavailable
37
Loctite 243, 10 ml
293800060
Unavailable
38
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
