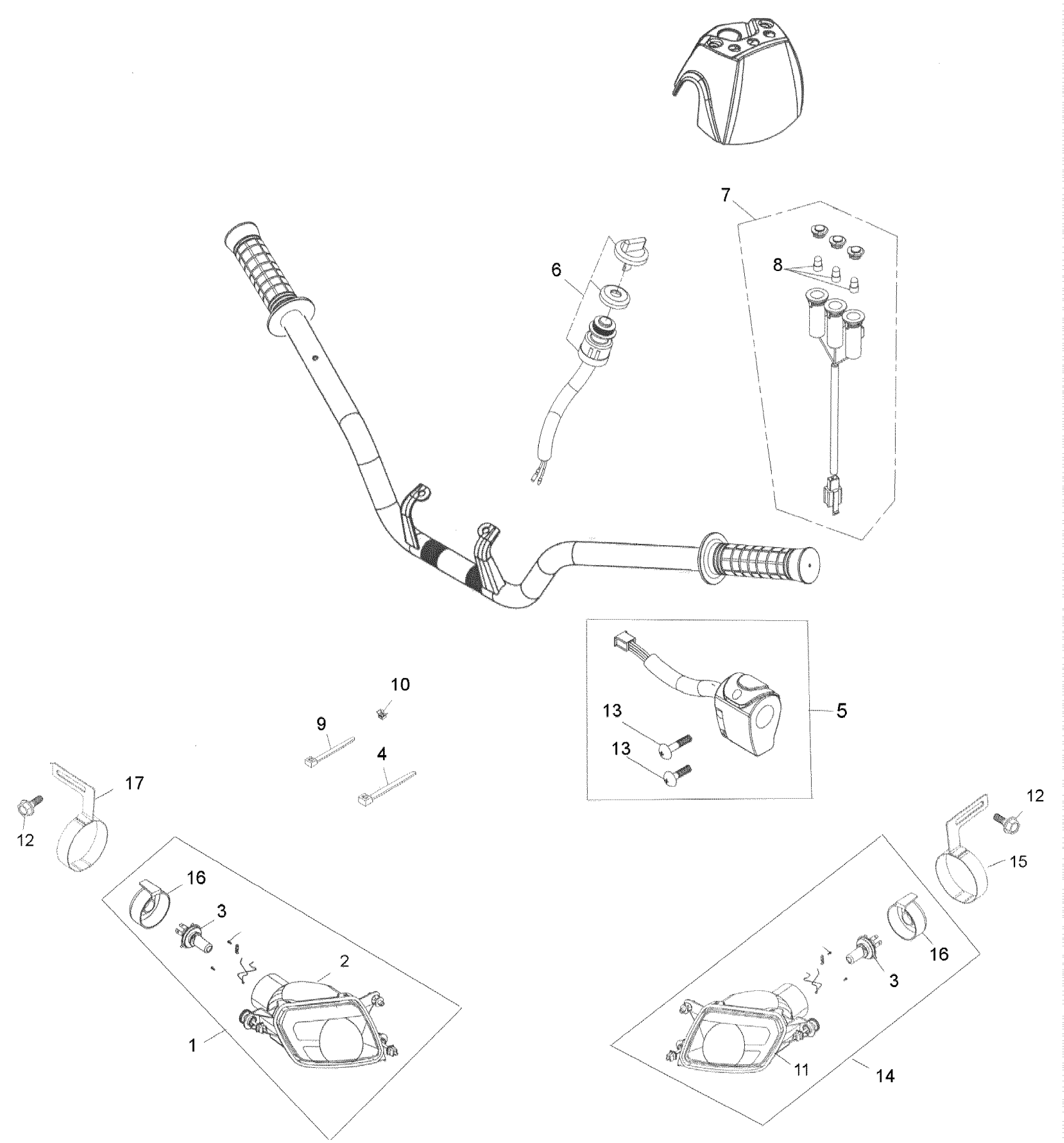

Can-Am Rally 175, 2007 Electrical Accessories Diagram

#

Description
Price

1

RH FRONT LIGHT ASSY - Call your local BRP dealership

A33100179001

$49.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

BULB - Call your local BRP dealership

A34901179000

$26.12

4

Tie-Rap 180 mm

414115200

$0.09

5

HANDLE - Call your local BRP dealership

A35200179000

$106.89

6

IGNITION SWITCH - Call your local BRP dealership

A35100179000

$57.66

6

Not Available As Spare Part - Friction Washer

Unavailable

7

PILOT LAMP - Call your local BRP dealership

A37250179000

$26.12

8

BULB - Call your local BRP dealership

A34908179000

$6.89

9

Tie-Rap 180 mm

414115200

$0.09

10

Mount Dart

293730040

$0.86

11

Not Available As Spare Part - Friction Washer

Unavailable

12

HEX.WASHER LADDER BOLT M6 X 16 - Call your local BRP dealership

A901120601610

$5.29

13

SOCKET SCREW M5 X 35 - Call your local BRP dealership

205453546

Unavailable

14

LH front Light Ass'y

A33200179001

Unavailable

15

LH HEAD LIGHT BRACKET - Call your local BRP dealership

A33154179000

$18.43

16

Not Available As Spare Part - Friction Washer

Unavailable

17

RH Head Light Bracket

A33155179000

Unavailable
