08- Drive System, Rear Europe

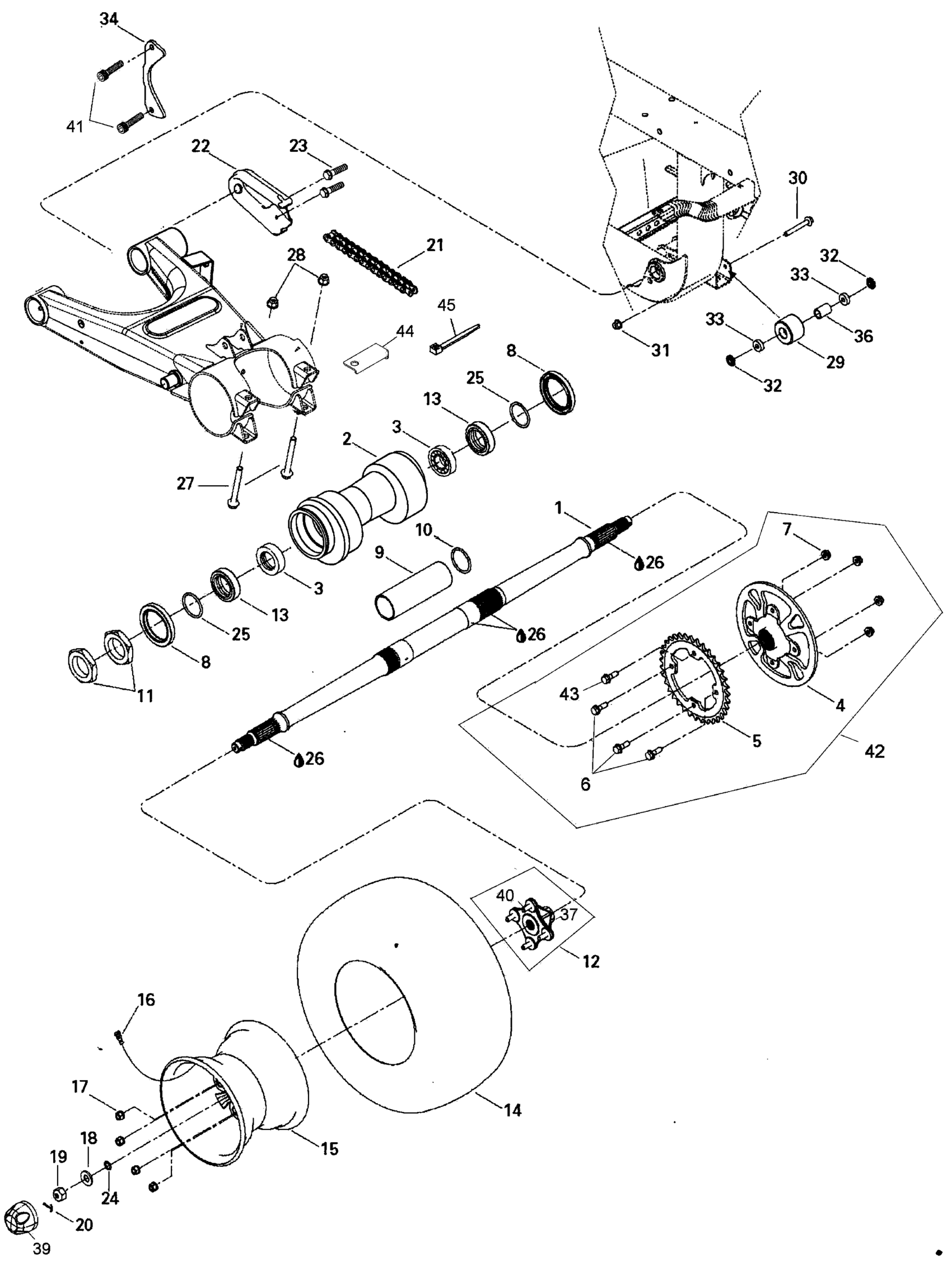

Can-Am Rally 175, 2007 08- Drive System, Rear Europe Diagram
#
1
REAR AXLE - Call your local BRP dealership
A42301179001
Unavailable
2
CHAIN TENSIONNER - Call your local BRP dealership
A52200179000
Unavailable
3
BALL BEARING - Call your local BRP dealership
A961006007LLU
Unavailable
4
Hub
A42610179001
Unavailable
5
Sprocket, 35 Teeth
705500219
Unavailable
6
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
Unavailable
7
Hex. Elastic Flange Nut M8
233281416
Unavailable
8
OIL SEAL - Call your local BRP dealership
A96500506810
Unavailable
9
SPACER - Call your local BRP dealership
705500291
Unavailable
10
RETAINER RING - Call your local BRP dealership
705500292
Unavailable
11
Nut Locking
A9407233000
Unavailable
12
Wheel Hub Ass'y
A42035179000
Unavailable
13
WEAR RING - Call your local BRP dealership
A52109179000
Unavailable
14
REAR TIRE - Call your local BRP dealership
A4281117900A
Unavailable
15
Rear Rim
705500295
Unavailable
16
Rim Valve With Cap
705400193
Unavailable
17
Steel Wheel Nut
250100042
Unavailable
18
FORMED WASHER - Call your local BRP dealership
705500481
Unavailable
19
Elastic Stop Nut M18
232591414
Unavailable
20
Cotter Pin
250400036
Unavailable
21
CHAIN - Call your local BRP dealership
705500274
Unavailable
22
SHOE SLIDER - Call your local BRP dealership
A40533179000
Unavailable
23
Hex. Flange Screw M6 X 16
207661644
Unavailable
24
O-RING - Call your local BRP dealership
293300082
Unavailable
25
O-RING - Call your local BRP dealership
293300089
Unavailable
26
Grease, Super Lube
293550030
Unavailable
27
Hex. Flange Screw M10 X 90
A9600010090
Unavailable
28
Elastic Flange Nut M10
A9035110000
Unavailable
29
ROLLER CHAIN - Call your local BRP dealership
A40537179000
Unavailable
30
Hex. Flange Screw M8 x 60
207686044
Unavailable
31
Hex. Elastic Flange Nut M8
233281416
Unavailable
32
SPACER - Call your local BRP dealership
705500398
Unavailable
33
BALL BEARING - Call your local BRP dealership
293350039
Unavailable
34
CHAIN GUIDE - Call your local BRP dealership
A40516179000
Unavailable
36
SPACER - Call your local BRP dealership
A40539179000
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
39
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
40
Wheel Stud
250300013
Unavailable
41
SCREW-HEX.FLANGE M8 X 16 - Call your local BRP dealership
A9600008016G
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
Hex. Flange Screw M8 X 25
207682544
Unavailable
44
Bracket
A37219179000
Unavailable
45
Tie Rap
A90669179000
Unavailable
