08- Drive System, Rear

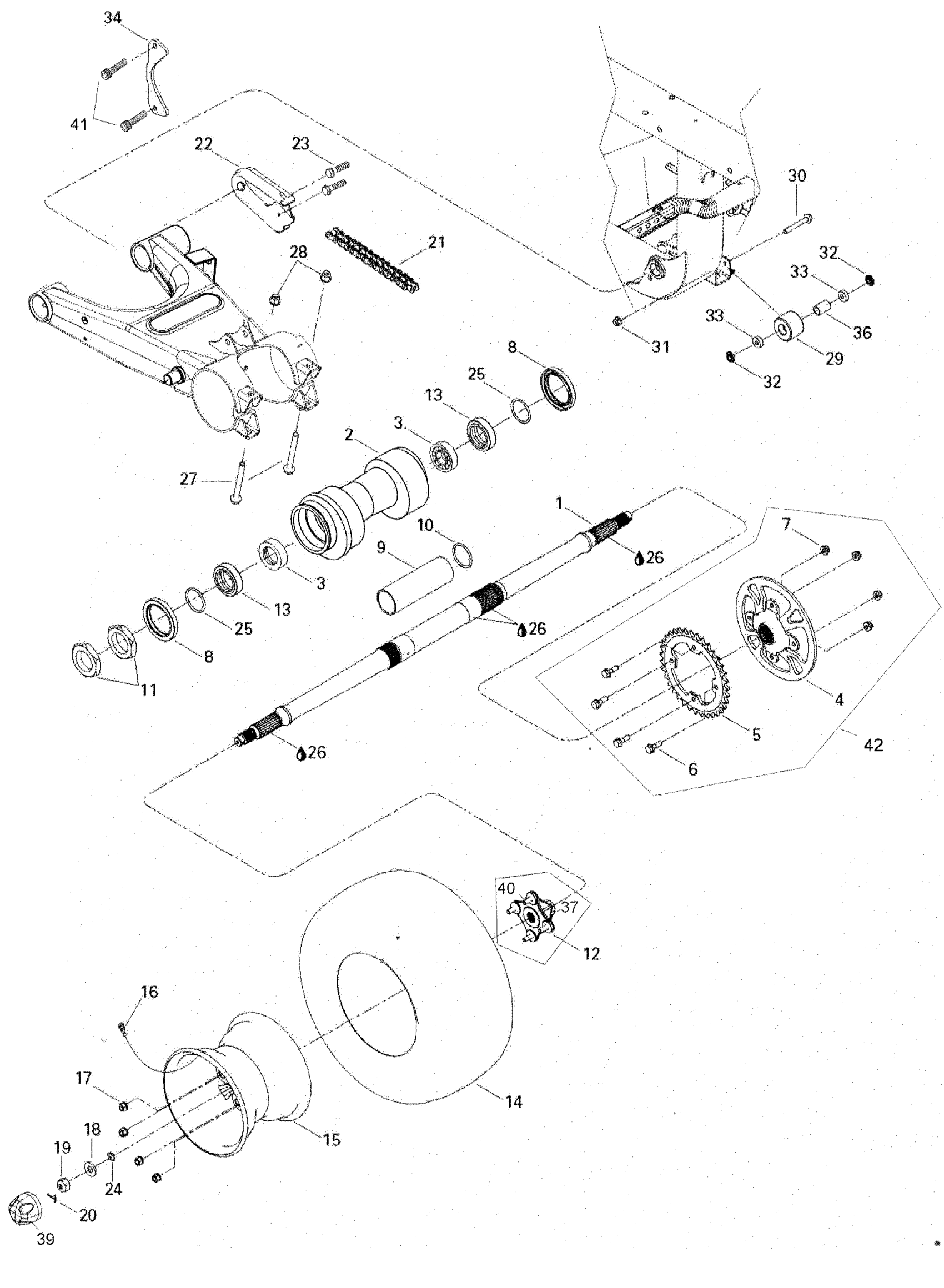

Can-Am Rally 175, 2007 08- Drive System, Rear Diagram
#
1
REAR AXLE - Call your local BRP dealership
A42301179001
Unavailable
2
CHAIN TENSIONNER - Call your local BRP dealership
A52200179000
Unavailable
3
BALL BEARING - Call your local BRP dealership
A961006007LLU
Unavailable
4
Hub
A42610179001
Unavailable
5
Sprocket, 35 Teeth
705500219
Unavailable
6
Hex. Flange Screw M8 X 25, Scotch Grip
207582586
Unavailable
7
Hex. Elastic Flange Nut M8
233281416
Unavailable
8
OIL SEAL - Call your local BRP dealership
A96500506810
Unavailable
9
SPACER - Call your local BRP dealership
705500291
Unavailable
10
RETAINER RING - Call your local BRP dealership
705500292
Unavailable
11
Locking Nut
705500293
Unavailable
12
Wheel Hub Ass'y
A42035179000
Unavailable
13
WEAR RING - Call your local BRP dealership
A52109179000
Unavailable
14
Rear Tire
705500294
Unavailable
15
Rear Rim
705500295
Unavailable
16
Rim Valve With Cap
705400193
Unavailable
17
Steel Wheel Nut
250100042
Unavailable
18
FORMED WASHER - Call your local BRP dealership
705500481
Unavailable
19
Elastic Stop Nut M18
232591414
Unavailable
20
Cotter Pin
250400036
Unavailable
21
CHAIN - Call your local BRP dealership
705500274
Unavailable
22
SHOE SLIDER - Call your local BRP dealership
A40533179000
Unavailable
23
Hex. Flange Screw M6 X 16
207661644
Unavailable
24
O-RING - Call your local BRP dealership
293300082
Unavailable
25
O-RING - Call your local BRP dealership
293300089
Unavailable
26
Grease, Super Lube
293550030
Unavailable
27
Hex. Flange Screw M10 X 90
A9600010090
Unavailable
28
Elastic Flange Nut M10
A9035110000
Unavailable
29
ROLLER CHAIN - Call your local BRP dealership
A40537179000
Unavailable
30
Hex. Flange Screw M8 x 60
207686044
Unavailable
31
Hex. Elastic Flange Nut M8
233281416
Unavailable
32
SPACER - Call your local BRP dealership
705500398
Unavailable
33
BALL BEARING - Call your local BRP dealership
293350039
Unavailable
34
CHAIN GUIDE - Call your local BRP dealership
A40516179000
Unavailable
36
SPACER - Call your local BRP dealership
A40539179000
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
39
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
40
Wheel Stud
250300013
Unavailable
41
SCREW-HEX.FLANGE M8 X 16 - Call your local BRP dealership
A9600008016G
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
