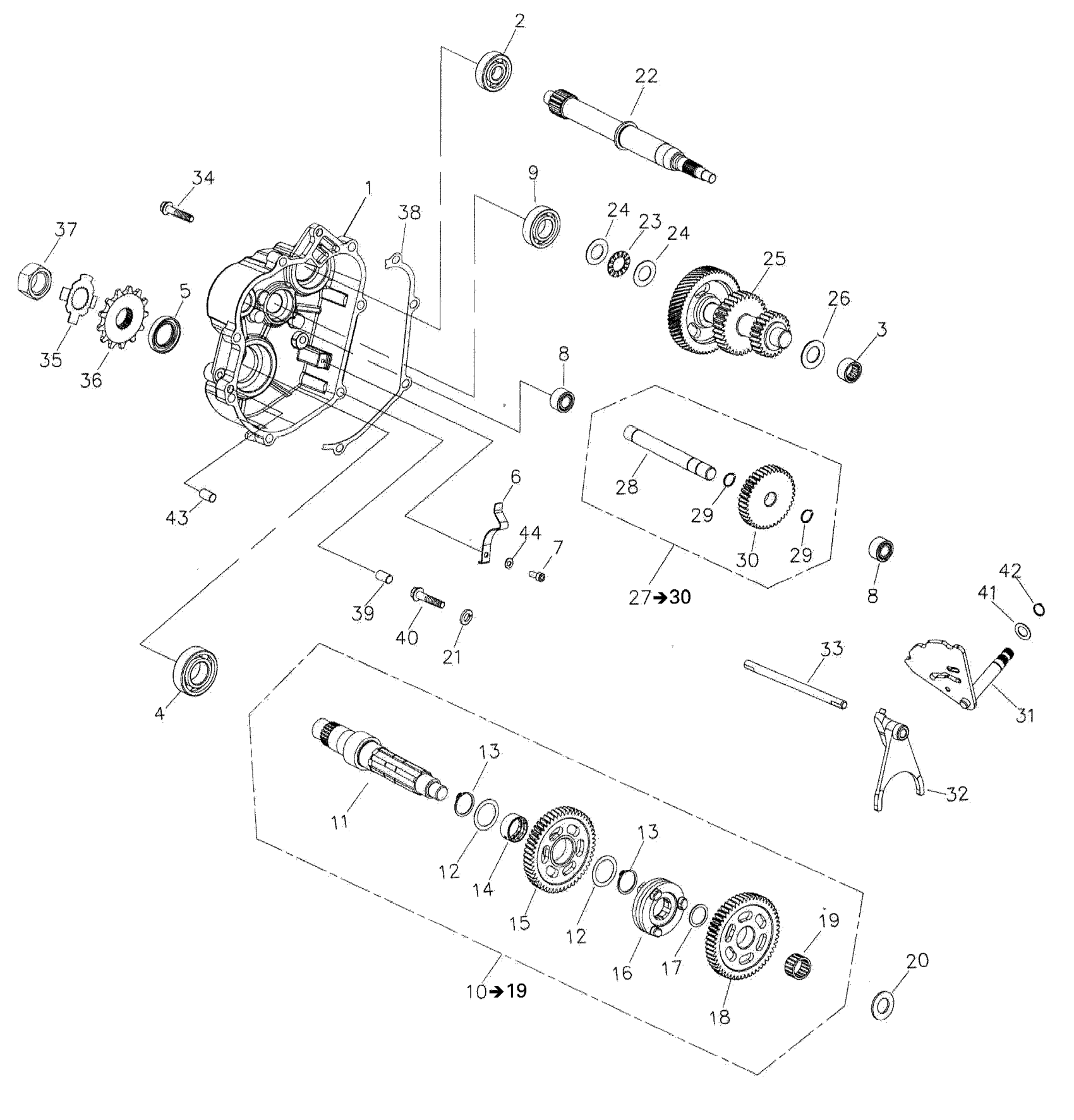

Can-Am Rally 175, 2007 Gear Shift Diagram

#

Description
Price

1

GEAR BOX COVER - Call your local BRP dealership

A21301179001

Unavailable

2

BALL BEARING - Call your local BRP dealership

A961006302C3

$20.74

3

Needle Bearing

A96200HK1812

Unavailable

4

BALL BEARING - Call your local BRP dealership

A961006205C3

Unavailable

5

Oil Seal

A9650025407

Unavailable

6

Spring

A24435179001

Unavailable

7

Socket Screw M5 x 12

420241841

Unavailable

8

Bearing_Needle - Call your local BRP dealership

A96200HK1512

$29.97

9

Ball Bearing 6003

A961006303

Unavailable

10

DRIVEN GEAR ASS'Y - Call your local BRP dealership | Includes 10 To 18

A23220179002

Unavailable

11

Driven Shaft

A23221179001

Unavailable

12

Washer

A941052635005

Unavailable

13

CIRCLIP - Call your local BRP dealership

A945112500S

Unavailable

14

Inner Bushing

A23402179001

Unavailable

15

High Gear, 51 Teeth

A23405179001

Unavailable

16

Sliding Bushing

A23461179001

Unavailable

17

Washer

A941052026010

Unavailable

18

Reverse Idle Gear, 53 Teeth

A23406179001

Unavailable

19

Bearing_Needle - Call your local BRP dealership

A96200202413

$27.66

20

PLAIN WASHER - Call your local BRP dealership

A941051528020

$8.43

21

Washer 5.3

420927574

$1.85

22

Drive Pulley Shaft

A23411179001

Unavailable

23

PLAIN BEARING - Call your local BRP dealership

A968001730A

$14.58

24

THRUST WASHER - Call your local BRP dealership

A941051730010

$13.82

25

INTERMEDIATE SHAFT ASS'Y - Call your local BRP dealership

A23211179001

Unavailable

26

Thrust Washer

A941051826010

Unavailable

27

Reverse Idle Gear A'ss'y | Includes 27 To 30

A24773179000

Unavailable

28

Reverse Idle Gear Shaft

A24775179001

Unavailable

29

Circlip

A945111800S

Unavailable

30

Idle Gear, 38 Teeth

A23407179001

Unavailable

31

Shift Shaft Ass'y

A24630179001

Unavailable

32

SHIFT FORK - Call your local BRP dealership

A24211179000

$43.82

33

Guide Pin

A24241179000

Unavailable

34

HEX.WASHER FACE BOLT M8 X 40 - Call your local BRP dealership

A960000804010G

Unavailable

35

LOCK WASHER - Call your local BRP dealership

A23415179001

Unavailable

36

SPROCKET, 13 TEETH - Call your local BRP dealership

A23801179000

Unavailable

37

Ecrou Hex.M20 *Nut-Hex.M20

420242656

$17.66

38

GASKET - Call your local BRP dealership

A21395179001

$39.20

39

Dowel Pin

A9430110140

$4.60

40

Hex. Flange Screw M8 X 45

A960000804510G

Unavailable

41

WASHER - Call your local BRP dealership

A941051222010

$7.66

42

CIRCLIP - Call your local BRP dealership

A945111200S

$3.82

43

CENTER PIN 8 X 12 - Call your local BRP dealership

A9430708120

$7.66

44

Not Available As Spare Part - Friction Washer

Unavailable
