Description

Price

1

LH ARM - Call your local BRP dealership

706200175

Unavailable

2

RH Arm

706200176

Unavailable

3

Cushion

706200063

Unavailable

4

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

A9600010080

Unavailable

5

Elastic Flange Nut M10

A9035110000

Unavailable

6

Front Shock

A51411179000

Unavailable

7

Front Spring

A51401179000

Unavailable

8

Spring Stopper

A51402179000

Unavailable

9

Spring Seat

A51421179000

Unavailable

10

INNER BUSHING - Call your local BRP dealership

706200177

Unavailable

11

Hex. Flange Screw M10 X 50

A9600010050

Unavailable

12

Elastic Flange Nut M10

A9035110000L

Unavailable

13

CUSHION - Call your local BRP dealership

706200169

Unavailable

14

Grease Fitting

408200700

Unavailable

15

Synthetic Grease, 400 G

293550010

Unavailable

16

GREASE VALVE CAP - Call your local BRP dealership

A9650206000

Unavailable

17

Front Shock Ass'y

A51400179000

Unavailable

18

Spring Seat Stopper

A51422179000

Unavailable

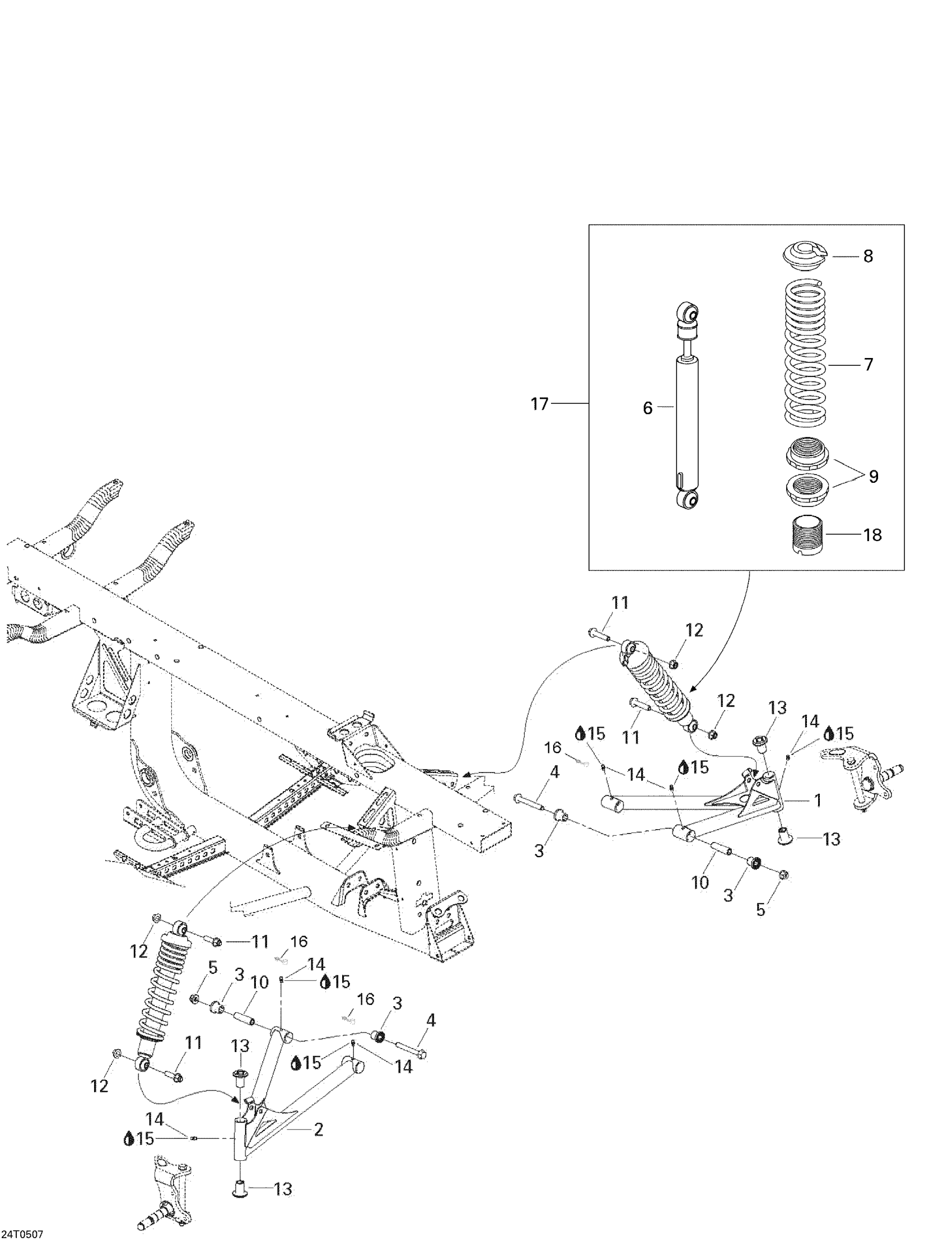

Can-Am Rally 175, 2005 07- Front Suspension Diagram

LH ARM - Call your local BRP dealership

RH Arm

Cushion

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

Elastic Flange Nut M10

Front Shock

Front Spring

Spring Stopper

Spring Seat

INNER BUSHING - Call your local BRP dealership

Hex. Flange Screw M10 X 50

Elastic Flange Nut M10

CUSHION - Call your local BRP dealership

Grease Fitting

Synthetic Grease, 400 G

GREASE VALVE CAP - Call your local BRP dealership

Front Shock Ass'y

Spring Seat Stopper
