09- Body And Accessories

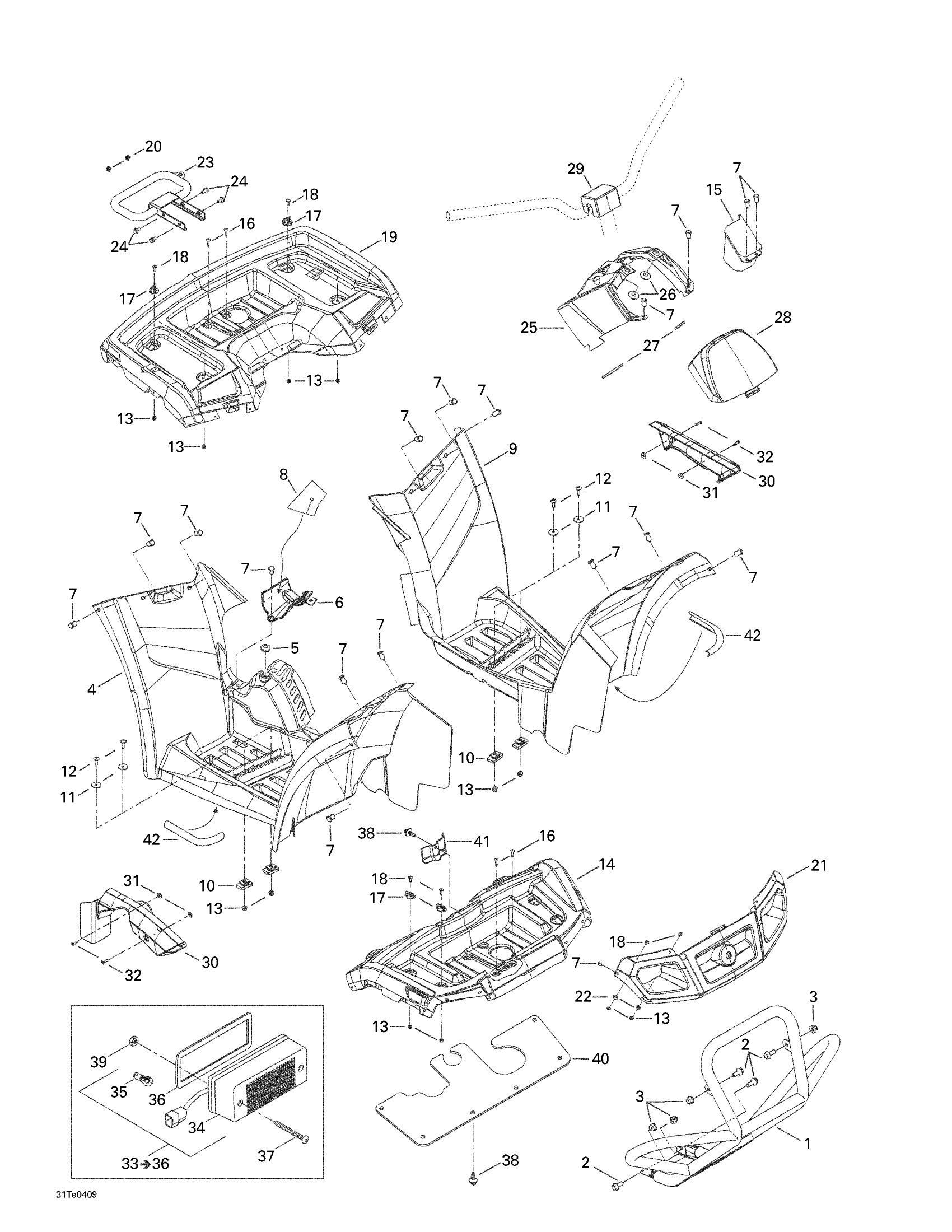

Can-Am Rally 175, 2004 09- Body And Accessories Diagram
#
1
Front Bumper
705000346
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
RH Foot-Well, Laurentian Green B-241
705000899
Unavailable
Viper Red, RH Foot-Well
705000515
Unavailable
RH Foot-Well, Yellow B-190
705000516
Unavailable
5
Grommet
293720062
Unavailable
6
Chain Cover
705000410
Unavailable
7
Tuflok Plastic Rivet
293150230
Unavailable
8
Reflective Sheet
705000563
Unavailable
9
LH Foot-Well, Laurentian Green B-241
705000900
Unavailable
Viper Red, LH Foot-Well
705000521
Unavailable
LH Foot-Well, Yellow B-190
705000522
Unavailable
10
Rubber Stopper
705000407
Unavailable
11
Washer M6
250200029
Unavailable
12
Hex. Flange Screw M6 X 30 | International
210263050
Unavailable
13
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Front Fender- Luggage Rack, green(b-204
705000867
Unavailable
15
Cup
705000451
Unavailable
16
Torx Screw M6 X 25 | XT Models
250000728
Unavailable
17
HOOK - Call your local BRP dealership
705000560
Unavailable
18
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
19
Rear Fender, green, b-204)
705000351
Unavailable
20
Jack Nut M5
250100035
Unavailable
21
Viper Red, Front Fascia
705000868
Unavailable
Front Fascia, Yellow B-190
705000869
Unavailable
Front Fascia, Laurentian Green B-241
705000901
Unavailable
22
Flat Washer
224060201
Unavailable
23
Rear Bumper
705000353
Unavailable
24
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
25
Dash Board, Laurentian Green B-241
705000902
Unavailable
Viper Red, Dash Board
705000527
Unavailable
Dash Board, Yellow B-190
705000528
Unavailable
26
Oval Washer
705005156
Unavailable
27
Windshield Latch
570023800
Unavailable
28
Console Cover, Laurentian Green B-241
705000903
Unavailable
Viper Red, Console Cover
705000530
Unavailable
Console Cover, Yellow B-190
705000531
Unavailable
29
COVER - Call your local BRP dealership
705000371
Unavailable
30
RH Cover
705000564
Unavailable
LH Cover
705000565
Unavailable
31
Spacer
293900049
Unavailable
32
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
33
Tail Light Housing
710000102
Unavailable
34
TAIL LIGHT LENS, RED - Call your local BRP dealership
710000055
Unavailable
35
Bulb
520000758
Unavailable
36
GASKET - Call your local BRP dealership
710000129
Unavailable
37
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
38
Black, Dart
293730011
Unavailable
39
Hex. Flange Elastic Nut M5
233251414
Unavailable
40
Deflector
705000632
Unavailable
41
Deflector
705000883
Unavailable
42
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
