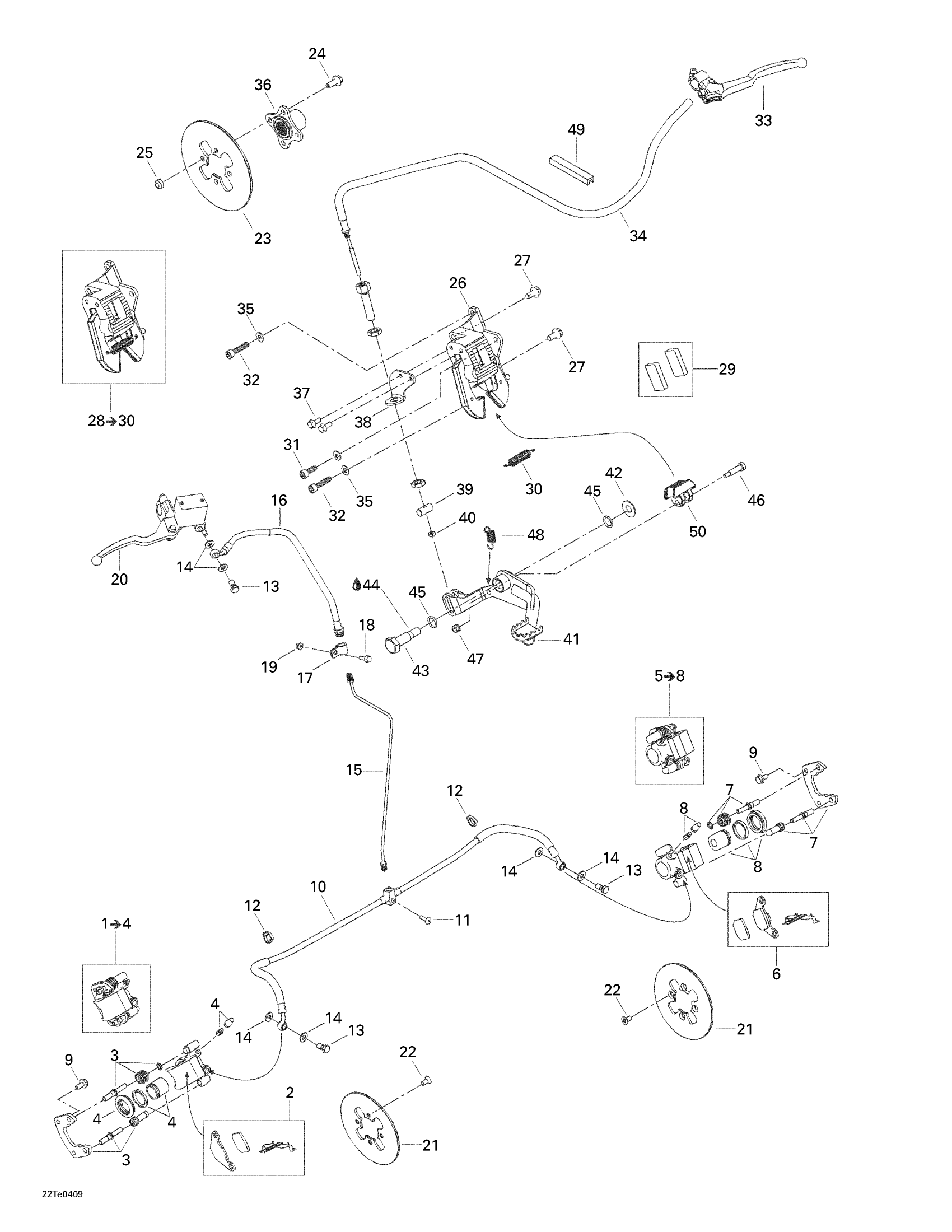

Can-Am Rally 175, 2004 06- Hydraulic Brake Diagram

#

Description
Price

1

RH Caliper Ass’y | Includes 1 To 4

705600364

Unavailable

2

Brake Pad Kit

705600341

Unavailable

3

BOOT KIT - Call your local BRP dealership

705600286

Unavailable

4

PISTON SET - Call your local BRP dealership

705600287

Unavailable

5

LH Caliper Ass’y | Includes 2 To 5

705600365

Unavailable

6

Brake Pad Kit

705600341

Unavailable

7

BOOT KIT - Call your local BRP dealership

705600286

Unavailable

8

PISTON SET - Call your local BRP dealership

705600287

Unavailable

9

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

10

Flexible Hose

705600221

Unavailable

11

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

12

Tie-Rap 180 mm

414115200

Unavailable

13

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

14

Washer

414920600

Unavailable

15

Vertical Tube

705600220

Unavailable

16

Brake Handle Hose

705600231

Unavailable

17

Hose Retainer 13 mm

705600232

Unavailable

18

Hex. Flange Screw M6 X 20

207662044

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

MASTER CYLINDER - Call your local BRP dealership

705600335

Unavailable

21

FRONT BRAKE DISC - Call your local BRP dealership

705600223

Unavailable

22

Torx Screw M8 X 16, Scotch Grip

235381646

Unavailable

23

Brake Disc

705600332

Unavailable

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

25

Hex. Flange Elastic Nut M8

233281414

Unavailable

26

CALIPER SUPPORT - Call your local BRP dealership

705600333

Unavailable

27

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

28

Rear Caliper Ass’y | Includes 28 - 30.

705600314

Unavailable

29

BRAKE PAD KIT - Call your local BRP dealership

705600213

Unavailable

30

Spring

705600222

Unavailable

31

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

32

Socket Head Screw M8 X 35, Scotch Grip

205583544

Unavailable

33

Brake Handle

705600273

Unavailable

34

Brake Cable

705600353

Unavailable

35

Flat Washer 8 mm

234081410

Unavailable

36

Welded Bushing

705600196

Unavailable

37

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

38

Cable Support

705600359

Unavailable

39

Cable Barrel

705600293

Unavailable

40

Elastic Stop Nut M6

232561414

Unavailable

41

Brake Pedal

705600214

Unavailable

42

Washer

414823700

Unavailable

43

PIVOT - Call your local BRP dealership

705600201

Unavailable

44

Synthetic Grease, 400 G

293550010

Unavailable

45

O-RING - Call your local BRP dealership

293300053

Unavailable

46

Socket Screw M6 x 25

250000112

Unavailable

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

48

BRAKE PEDAL SPRING - Call your local BRP dealership

705600288

Unavailable

49

Was 271000110 Protection Trim

219704353

Unavailable

50

Slider

705600202

Unavailable
