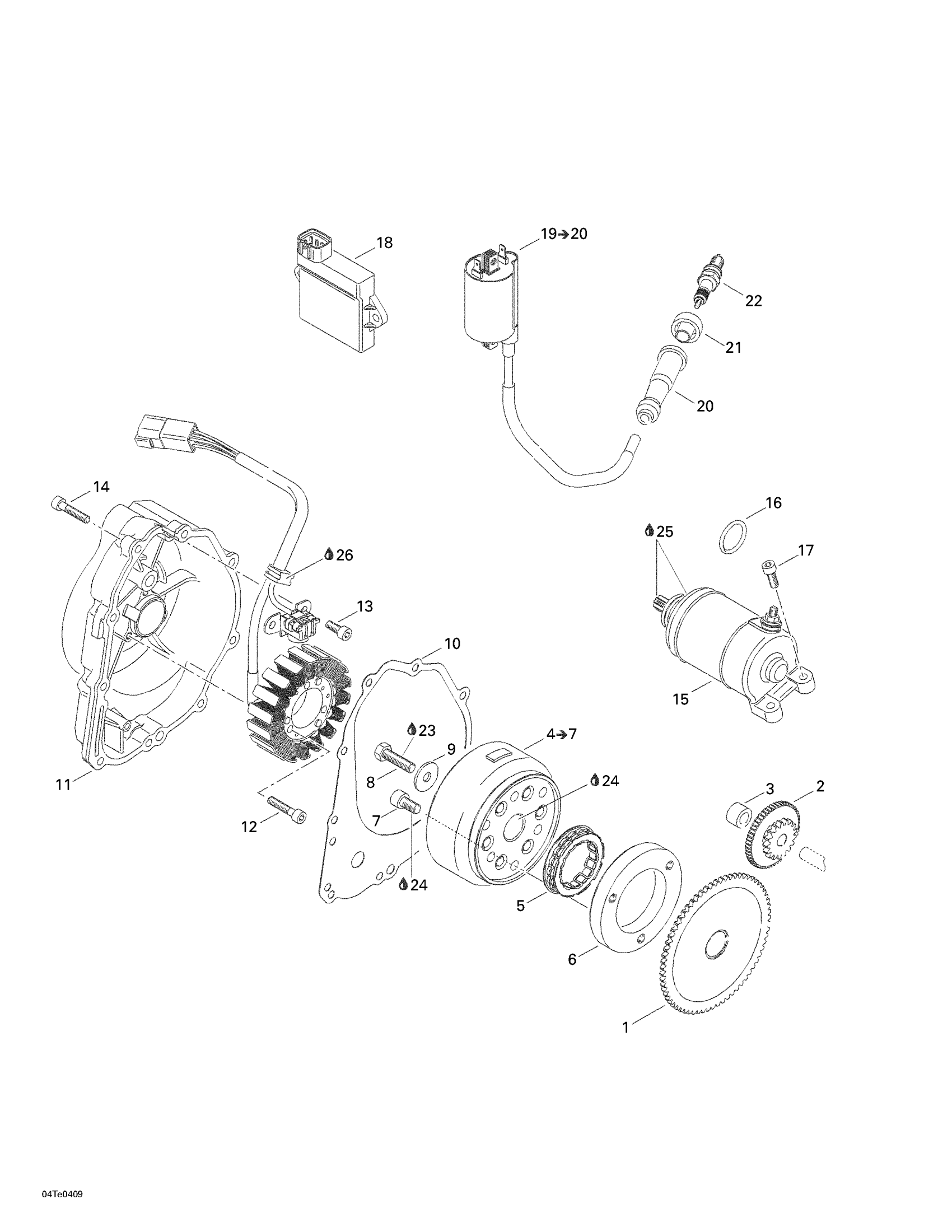

Can-Am Rally 175, 2004 03- Magneto Diagram

#

Description
Price

1

FREE WHEEL GEAR, 67 TEETH - Call your local BRP dealership

420635150

Unavailable

2

IDLE GEAR 54/17T - Call your local BRP dealership

420634460

Unavailable

3

DISTANCE SLEEVE - Call your local BRP dealership

420247930

Unavailable

4

AC GENERATOR - Call your local BRP dealership | Includes 4 - 7.

420295558

Unavailable

5

SPRAG CLUTCH - Call your local BRP dealership

420259495

Unavailable

6

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420259480

Unavailable

7

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

8

SCREW M8 X 30 - Call your local BRP dealership

420940485

Unavailable

9

Plain Washer

420227937

Unavailable

10

GASKET - Call your local BRP dealership

420650195

Unavailable

11

Ignition Cover

420610650

Unavailable

12

Socket Head Screw M6 X 30

205063044

Unavailable

13

Socket Head Screw M6 x 16

420241237

Unavailable

14

Socket Head Screw M6 X 30

205063044

Unavailable

15

ELECTRIC STARTER - Call your local BRP dealership

420296390

Unavailable

15

BRUSH KIT (NOT SHOWN) - Call your local BRP dealership

420266300

Unavailable

16

O-Ring

420250140

Unavailable

17

Socket Head Screw M6 X 20

205062044

Unavailable

18

ELECTRONIC BOX - Call your local BRP dealership

420265634

Unavailable

19

Ignition Coil Ass’y

420265418

Unavailable

20

SPARK PLUG CONNECTOR CAP - Call your local BRP dealership

420265242

Unavailable

21

RUBBER GROMMET - Call your local BRP dealership

420660430

Unavailable

22

Spark Plug

219703176

Unavailable

23

Loctite 243, 10 ml

293800060

Unavailable

24

Sealant Loctite 648

219703000

Unavailable

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

Unavailable
