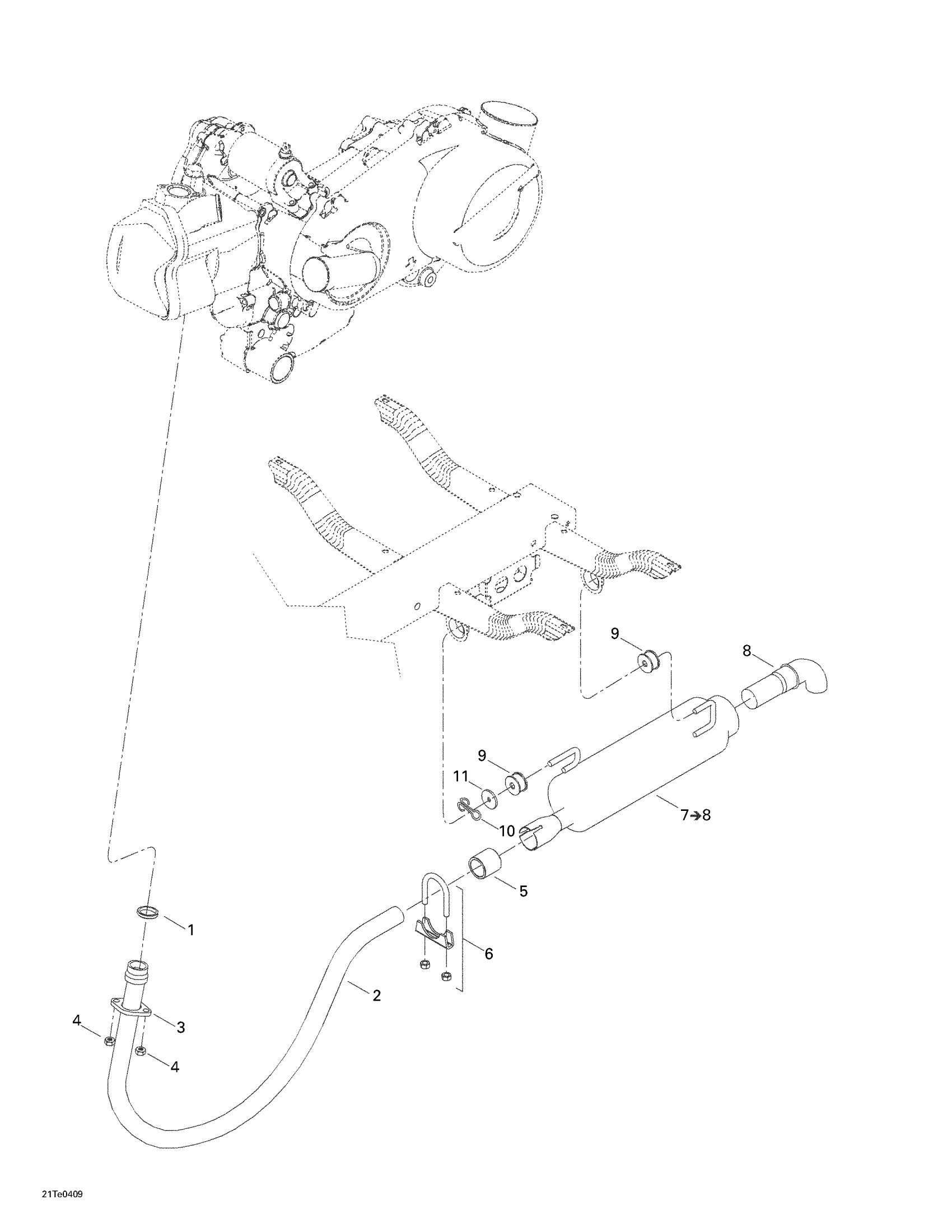

Can-Am Rally 175, 2004 Exhaust System Diagram

#

Description

Price

1

PIPE GASKET - Call your local BRP dealership

707600239

Unavailable

2

Tuned Pipe

707600199

Unavailable

3

Seal Ring

707600174

Unavailable

4

Hex. Flange Nut M8

233081416

$1.15

5

PIPE GASKET - Call your local BRP dealership

707600175

Unavailable

6

U-CLAMP - Call your local BRP dealership

293650148

Unavailable

7

TUNED PIPE ASSY - Call your local BRP dealership

707600161

Unavailable

8

Tube End

707600200

Unavailable

9

Anti-Vibration Rubber

707600702

$8.57

10

Cotter Pin

211400017

$0.33

11

Flat Washer

250200035

Unavailable
