01- Crankcase, Water Pump And Oil Pump

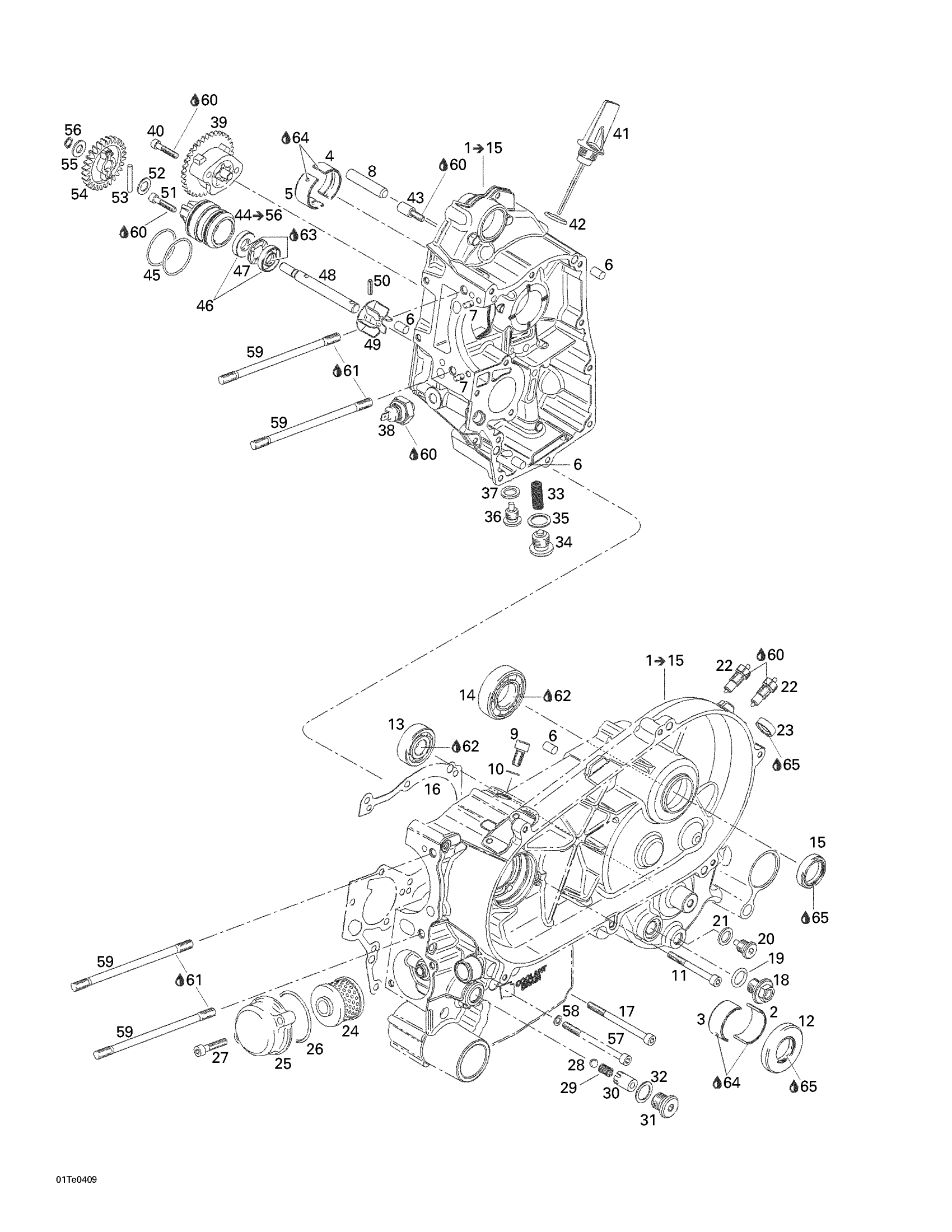

Can-Am Rally 175, 2004 01- Crankcase, Water Pump And Oil Pump Diagram
#
1
Crankcase Ass'y | Includes 1 - 15.
420296691
Unavailable
2
PLAIN BEARING - Call your local BRP dealership
420233710
Unavailable
3
Bushing_Half - Call your local BRP dealership
420233712
Unavailable
4
PLAIN BEARING - Call your local BRP dealership
420233715
Unavailable
5
Plain Bearing
420233717
Unavailable
6
Center Pin 8 X 12
420632010
Unavailable
7
Drive Pin 5 X 10
420929650
Unavailable
8
Location Pin 10 M6x50
420229302
Unavailable
9
Socket Head Screw M8 X 16
205081660
Unavailable
10
Sealing Ring
420950141
Unavailable
11
ALLEN SCREW M6 X 60 - Call your local BRP dealership
420240373
Unavailable
12
Oil Seal
420831178
Unavailable
13
Bearing_Ball - Call your local BRP dealership
420232293
Unavailable
14
BALL BEARING - Call your local BRP dealership
420232768
Unavailable
15
OIL SEAL - Call your local BRP dealership
420250950
Unavailable
16
CRANKCASE GASKET - Call your local BRP dealership
420650745
Unavailable
17
ALLEN SCREW, M6 X 80 - Call your local BRP dealership
420241503
Unavailable
18
Plug Screw M14 X 1.5
420241662
Unavailable
19
O-Ring
420650350
Unavailable
20
Plug screw
420841924
Unavailable
21
Copper Washer
420250640
Unavailable
22
Position Switch
420241856
Unavailable
23
OIL SEAL - Call your local BRP dealership
420250992
Unavailable
24
OIL FILTER - Call your local BRP dealership
715500367
Unavailable
25
Oil Filter Cover
420211500
Unavailable
26
O-Ring
420430920
Unavailable
27
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership
420241941
Unavailable
28
Ball 8.5 mm
420432680
Unavailable
29
SPRING, COMPRESSION - Call your local BRP dealership
420239280
Unavailable
30
PRESSURE RETAINER VALVE HOUSING - Call your local BRP dealership
420256483
Unavailable
31
Plug Screw M16 X 1.5
420240234
Unavailable
32
O-Ring
420430622
Unavailable
33
Oil Sieve
420256490
Unavailable
34
Plug Screw M16 X 1.5
420240235
Unavailable
35
O-Ring
420430622
Unavailable
36
Magnetic Drain Plug M12
420241787
Unavailable
37
Copper Washer
420250640
Unavailable
38
OIL PRESSURE SWITCH M10 X 1 - Call your local BRP dealership
420956166
Unavailable
39
OIL PUMP ASS'Y - Call your local BRP dealership
420295630
Unavailable
40
TAPTITE SCREW M5 X 25 - Call your local BRP dealership
420241275
Unavailable
41
OIL DIPSTICK - Call your local BRP dealership
420256465
Unavailable
42
O-Ring
420230890
Unavailable
43
SCREW M6 - Call your local BRP dealership
420240940
Unavailable
44
WATER PUMP ASS'Y - Call your local BRP dealership
420293419
Unavailable
45
O-RING - Call your local BRP dealership
420430900
Unavailable
46
Oil Seal
420230195
Unavailable
47
DISTANCE SHIM - Call your local BRP dealership
420260710
Unavailable
48
Water Pump Shaft
420220355
Unavailable
49
WATER IMPELLER - Call your local BRP dealership
420222482
Unavailable
50
Spring Pin
420229280
Unavailable
51
TAPTITE SCREW M5 X 25 - Call your local BRP dealership
420241275
Unavailable
52
Thrust Washer
420827590
Unavailable
53
Needle Pin
420232431
Unavailable
54
WATER PUMP GEAR, 28 TEETH - Call your local BRP dealership
420634430
Unavailable
55
Flat Washer
420827405
Unavailable
56
Retaining Ring
420245570
Unavailable
57
ALLEN SCREW, M6 X 80 - Call your local BRP dealership
420241503
Unavailable
58
Seal Washer
420230415
Unavailable
59
STUD M8 X 151 - Call your local BRP dealership
420640240
Unavailable
60
Loctite 243, 10 ml
293800060
Unavailable
61
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
62
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
63
Dow Corning 111, 150 g
413707000
Unavailable
64
Molykote G-N, 50 g
420297433
Unavailable
65
Grease, Super Lube
293550030
Unavailable
