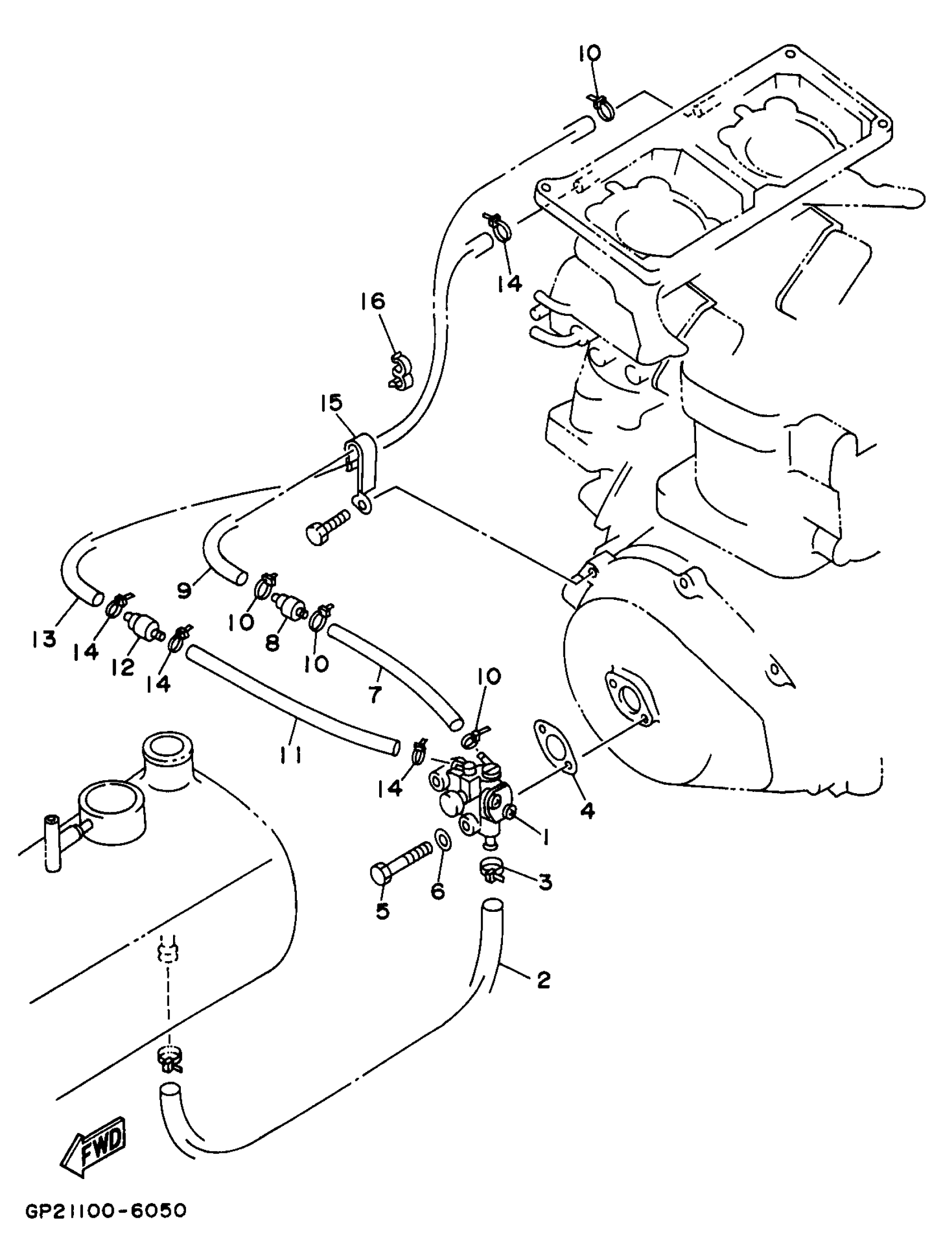

Yamaha RA760U (WAVE RAIDER 760) 1996 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

62T-13200-13-00

Unavailable

2

HOSE (L700)

90445-117F2-00

$22.86

3

CLAMP

90465-10098-00

$1.68

4

. GASKET, PUMP CASE

6R8-13116-A0-00

$2.95

5

BOLT(J52)

97080-06035-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$1.84

7

HOSE(62T)

90446-07M48-00

Unavailable

8

VALVE, CHECK

6R3-13183-10-00

$39.61

9

HOSE(62T)

90446-07M48-00

Unavailable

10

CLAMP

90465-10098-00

$1.68

11

HOSE(62T)

90446-07M48-00

Unavailable

12

VALVE, CHECK

6R3-13183-10-00

$39.61

13

HOSE(62T)

90446-07M48-00

Unavailable

14

CLAMP

90465-10098-00

$1.68

15

CLAMP

90465-08M37-00

Unavailable

16

CLAMP

90464-07M20-00

Unavailable
