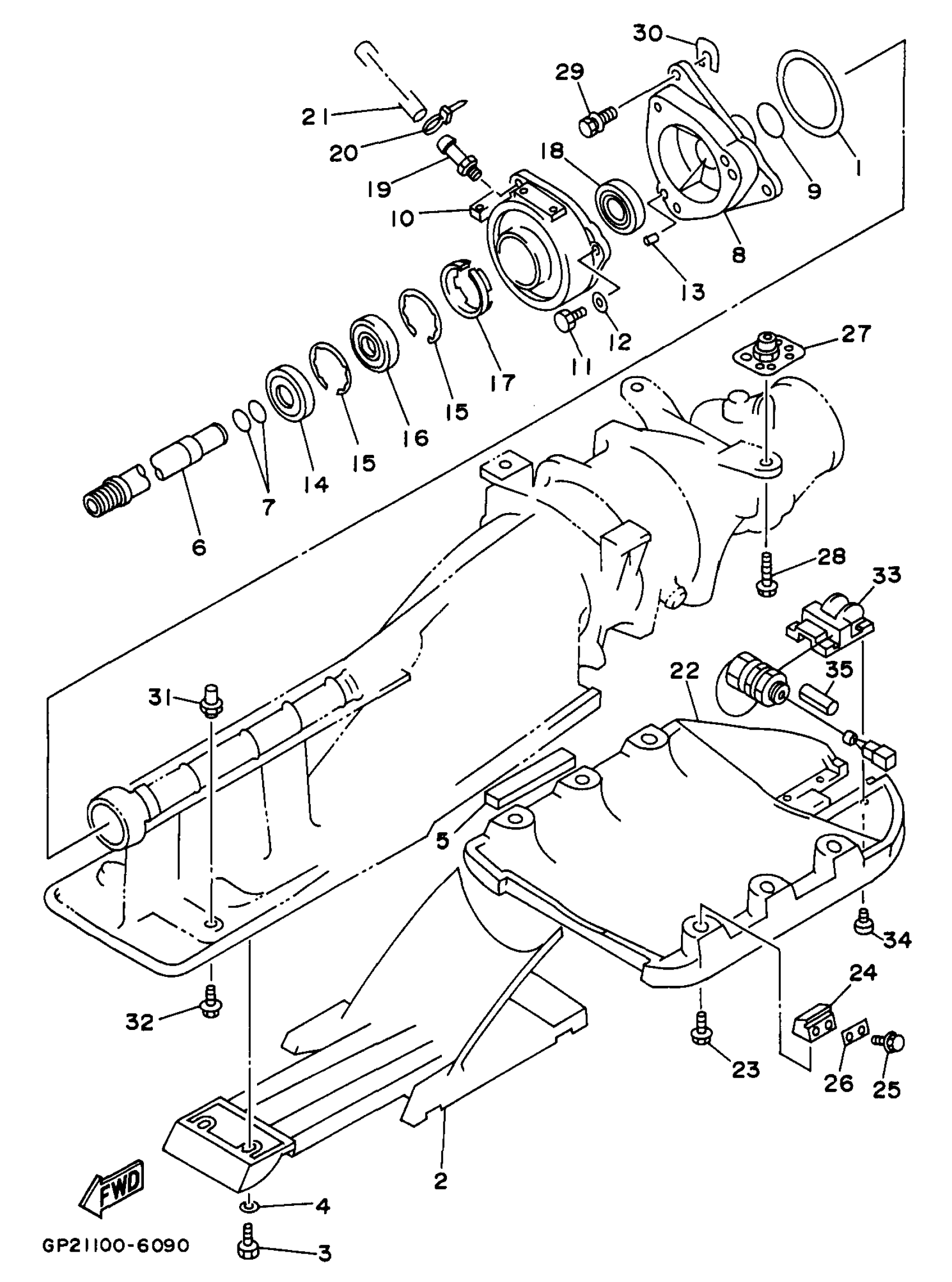

Yamaha RA760U (WAVE RAIDER 760) 1996 JET UNIT 2 Diagram

#

Description
Price

1

SEAL

6K8-45127-00-00

$15.49

2

SCREEN, INTAKE

63N-51333-02-94

Unavailable

3

BOLT (FJ0)

97080-06018-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

. FELT, PACKING

63N-51368-00-00

Unavailable

6

SHAFT,COUPLER

6R8-51323-10-00

Unavailable

7

O-RING(6R7)

93210-17MA4-00

$4.65

8

HOUSING, BEARING

62G-45331-01-94

Unavailable

9

O-RING

93210-35M72-00

$11.39

10

HOUSING, BEARING

61X-G5332-00-00

$134.54

11

BOLT (62G)

97095-08025-00

$6.12

12

.. WASHER, PLATE

92990-08600-00

$2.17

13

PIN, DOWEL (614)

93606-12019-00

$3.05

14

OIL SEAL(62T)

93101-25M55-00

$24.36

15

CIRCLIP

93430-47M04-00

$5.18

16

BEARING(62G)

93306-205U6-00

$55.29

17

SPACER

63M-51348-00-00

Unavailable

18

OIL SEAL

93101-24001-00

Unavailable

19

NIPPLE, HOSE

61L-45378-00-00

$11.35

20

CLAMP

90465-10098-00

$1.68

21

HOSE (L445)

90445-09M21-00

Unavailable

22

PLATE 2

GJ1-U273B-00-00

Unavailable

23

BOLT, WITH WASHER

90119-08829-00

$3.88

24

PACKING

GJ1-62733-00-00

$44.99

25

BOLT, WITH WASHER

90119-08907-00

$5.45

26

PACKING 1

GJ1-62663-00-00

Unavailable

27

NUT

90179-10925-00

$5.00

28

BOLT, WITH WASHER

90119-109U8-00

Unavailable

29

BOLT, WITH WASHER

90119-08907-00

$5.45

30

SHIM (T=0.5)

GD0-67249-A0-00

$4.99

30

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

30

SHIM (0.5)

GD0-U7249-00-05

$1.94

30

SHIM (0.5)

GD0-U7249-00-05

$1.94

31

NUT(FJ0)

90179-06947-00

Unavailable

32

BOLT, WITH WASHER

90119-06896-00

$5.03

33

SENSOR SPEED

GJ1-U8K31-03-00

$131.73

34

SCREW(617)

98780-05012-00

Unavailable

35

GR0MMET

GJ1-6822E-00-00

Unavailable
