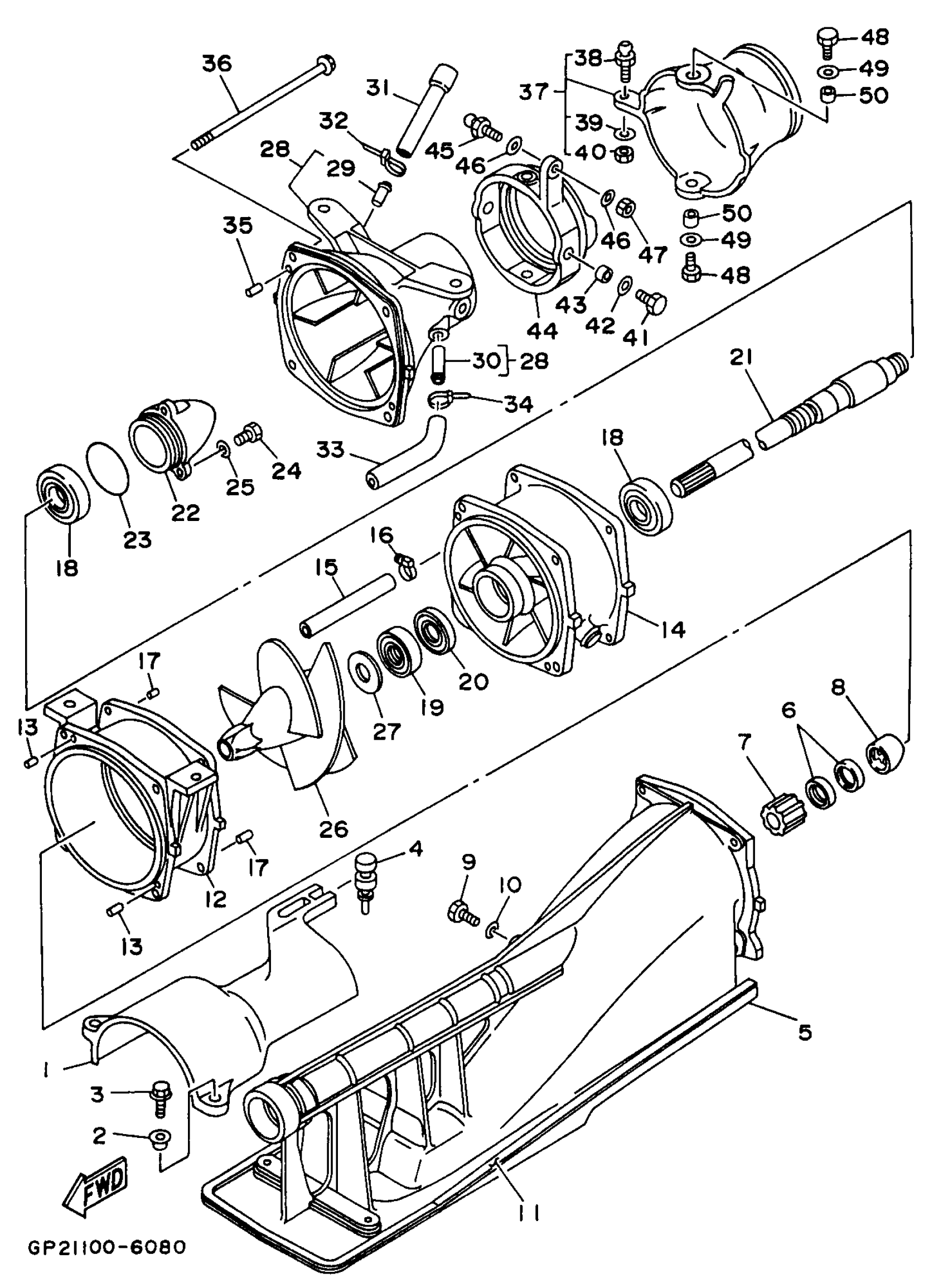

Yamaha RA760U (WAVE RAIDER 760) 1996 JET UNIT 1 Diagram
#
1
COVER
62T-51381-00-00
Unavailable
2
COLLAR
90387-06M60-00
Unavailable
3
BOLT, HEXAGON W/W DEEP RECESS
97E95-06525-00
Unavailable
4
GROMMET(6R7)
90480-06M46-00
$12.49
5
DUCT, INTAKE
62T-51311-03-94
Unavailable
6
OIL SEAL(6R8)
93102-18M35-00
Unavailable
7
BUSHING, DRIVE SHAFT
6R8-45318-00-00
Unavailable
8
SPACER
6R8-51348-02-94
Unavailable
9
BOLT
90101-06M27-00
Unavailable
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
. FELT, PACKING
6R8-51367-01-00
Unavailable
12
HOUSING, IMPELLER
6R8-51312-03-94
Unavailable
13
PIN, DOWEL (614)
93606-12019-00
$4.24
14
DUCT, IMPELLER
62T-51315-01-00
Unavailable
15
HOSE
90445-14M17-00
Unavailable
16
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
17
PIN, DOWEL (614)
93606-12019-00
$4.24
18
BEARING (6K8)
93306-205U1-00
Unavailable
19
OIL SEAL(6R7)
93102-25M34-00
Unavailable
20
OIL SEAL(6R7)
93101-25M50-00
Unavailable
21
SHAFT, DRIVE
6R8-45511-00-00
Unavailable
22
CAP
62T-51326-00-00
Unavailable
23
. O-RING
93210-46M16-00
Unavailable
24
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
25
WASHER, PLAIN (646)
92990-06600-00
$2.80
26
IMPELLER
62T-51321-B0-00
Unavailable
27
SPACER
62T-51348-00-00
Unavailable
28
NOZZLE
62T-51318-01-94
Unavailable
29
. NIPPLE
6K8-51129-00-00
Unavailable
30
. NIPPLE
62T-51129-00-00
Unavailable
31
PIPE 1
62T-51673-00-00
Unavailable
32
CLAMP
90465-10098-00
Unavailable
33
HOSE (L380)
90445-14M25-00
Unavailable
34
CLAMP
90465-10098-00
Unavailable
35
PIN, DOWEL (614)
93606-12019-00
$4.24
36
BOLT(6R8)
90101-06M04-00
Unavailable
37
NOZZLE, DEFLECTOR
62T-51313-02-00
Unavailable
38
. BOLT, JOINT
63M-42316-00-00
Unavailable
39
WASHER, PLATE(6R8)
90201-08M04-00
Unavailable
40
. NUT
95380-08700-00
Unavailable
41
BOLT, HEXAGON
97095-08018-00
Unavailable
42
.. WASHER, PLATE
92990-08600-00
Unavailable
43
COLLAR
90387-08M08-00
Unavailable
44
RING,TRIM
64X-51190-00-94
Unavailable
45
. BOLT, JOINT
6R7-42316-00-00
Unavailable
46
WASHER, PLATE
90201-06M31-00
Unavailable
47
NUT(650)
95380-06700-00
Unavailable
48
BOLT, HEXAGON
97095-08020-00
Unavailable
49
.. WASHER, PLATE
92990-08600-00
Unavailable
50
COLLAR(6R7)
90387-08M06-00
Unavailable
