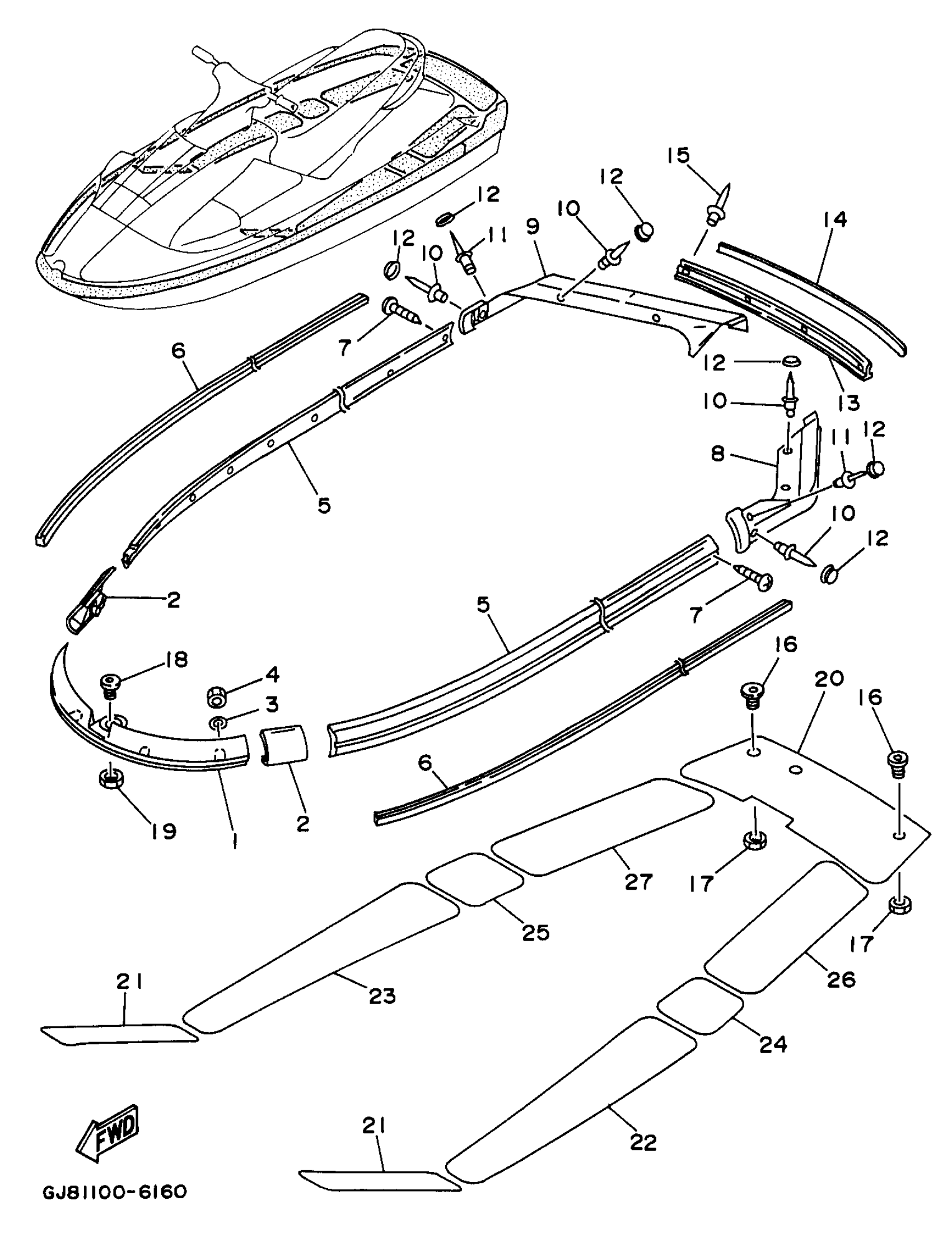

Yamaha RA760U (WAVE RAIDER 760) 1996 GUNWALE - MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GJ1-U2501-20-00

Unavailable

2

J0INT, GUNWALE

GJ1-6252A-10-00

Unavailable

3

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

4

NUT, SELF-LOCKING

95720-06300-00

$1.82

5

GUNWALE, SIDE 1

GJ1-U2552-20-00

Unavailable

6

INNER GUNWALE

GJ1-U2519-10-00

Unavailable

7

SCREW,TAPPING

90169-059U1-00

$1.05

8

GUNWALE, STERN 1

GH1-6251D-30-00

Unavailable

9

GUNWALE, STERN 2

GH1-6251E-30-00

Unavailable

10

RIVET, BLIND

90267-489U8-00

$0.99

11

RIVET, BLIND

90267-48835-00

$2.50

12

CAP, HEAD

GJ3-U354D-00-00

Unavailable

13

COVER, GUNWALE 1

GJ1-U252C-20-00

Unavailable

14

COVER, GUNWALE 2

GJ1-U252D-10-00

Unavailable

15

RIVET, BLIND

90267-489U8-00

$0.99

16

ROPE HOLE

FN8-61651-01-00

$5.00

17

NUT

EU0-61652-00-00

$11.48

18

ROPE HOLE

GH1-61651-01-00

Unavailable

19

NUT

EU0-61652-00-00

$11.48

20

MAT, UPPER

GJ1-63581-30-00

Unavailable

21

MAT, STEP 1(BLACK)

GJ1-U351H-09-00

Unavailable

22

MAT, STEP 3(BLACK)

GJ1-U351K-09-00

Unavailable

23

MAT, STEP 4(BLACK)

GJ1-U351M-09-00

Unavailable

24

MAT, STEP 5(BLACK)

GJ1-U351N-09-00

Unavailable

25

MAT, STEP 6(BLACK)

GJ1-U351P-09-00

Unavailable

26

MAT, STEP 7

GH1-6351R-40-00

Unavailable

27

MAT, STEP 8

GH1-6351S-40-00

Unavailable
