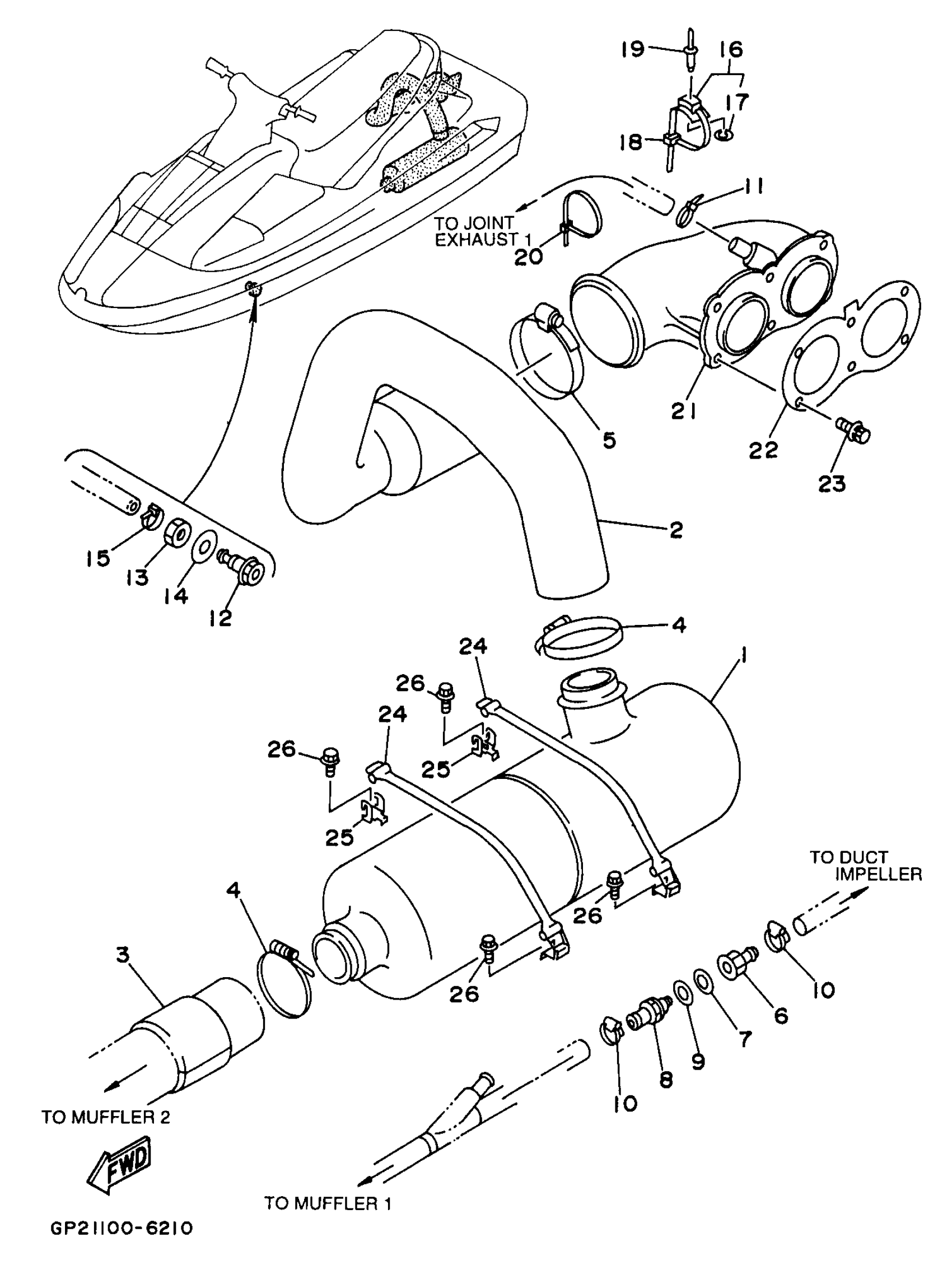

Yamaha RA760U (WAVE RAIDER 760) 1996 EXHAUST 2 Diagram
#
Description
Price
1
WATER LOCK
GH1-U7550-00-00
Unavailable
2
HOSE
GP2-U7555-00-00
Unavailable
3
PACKING, HOSE 1
GH6-67577-01-00
Unavailable
4
BAND, HOSE 68
90601-168U7-00
Unavailable
5
BAND, HOSE 95
90601-195UD-00
Unavailable
6
THROUGH HULL CONNECTION 3/8-12
90604-80795-00
Unavailable
7
GASKET(GJ1)
90430-16910-00
Unavailable
8
THROUGH HULL CONNECTION 3/8-12
90604-80796-00
Unavailable
9
GASKET(GJ1)
90430-16910-00
Unavailable
10
BAND, HOSE 18
90601-118UF-00
Unavailable
11
BAND
90601-200U1-00
Unavailable
12
PILOT, WATER
GJ1-6753B-02-00
Unavailable
13
. NUT
95380-14700-00
Unavailable
15
CLAMP
90465-10098-00
Unavailable
16
CLAMP COMP (EU0)
90600-91736-00
Unavailable
17
. WASHER, PLAIN
90201-05925-00
Unavailable
18
BAND
90601-200U2-00
Unavailable
19
RIVET, BLIND
90267-48802-00
Unavailable
20
BAND
90601-20008-00
Unavailable
21
EXHAUST, THRU-HALL COMP.
GJ1-U7560-00-00
Unavailable
22
PACKING
GJ1-U7525-00-00
Unavailable
23
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
24
HOOK C
GJ1-U7570-00-00
Unavailable
25
HOOK A
EW2-65772-00-00
Unavailable
26
BOLT,FLANGE (EW2)
90105-06900-00
Unavailable
