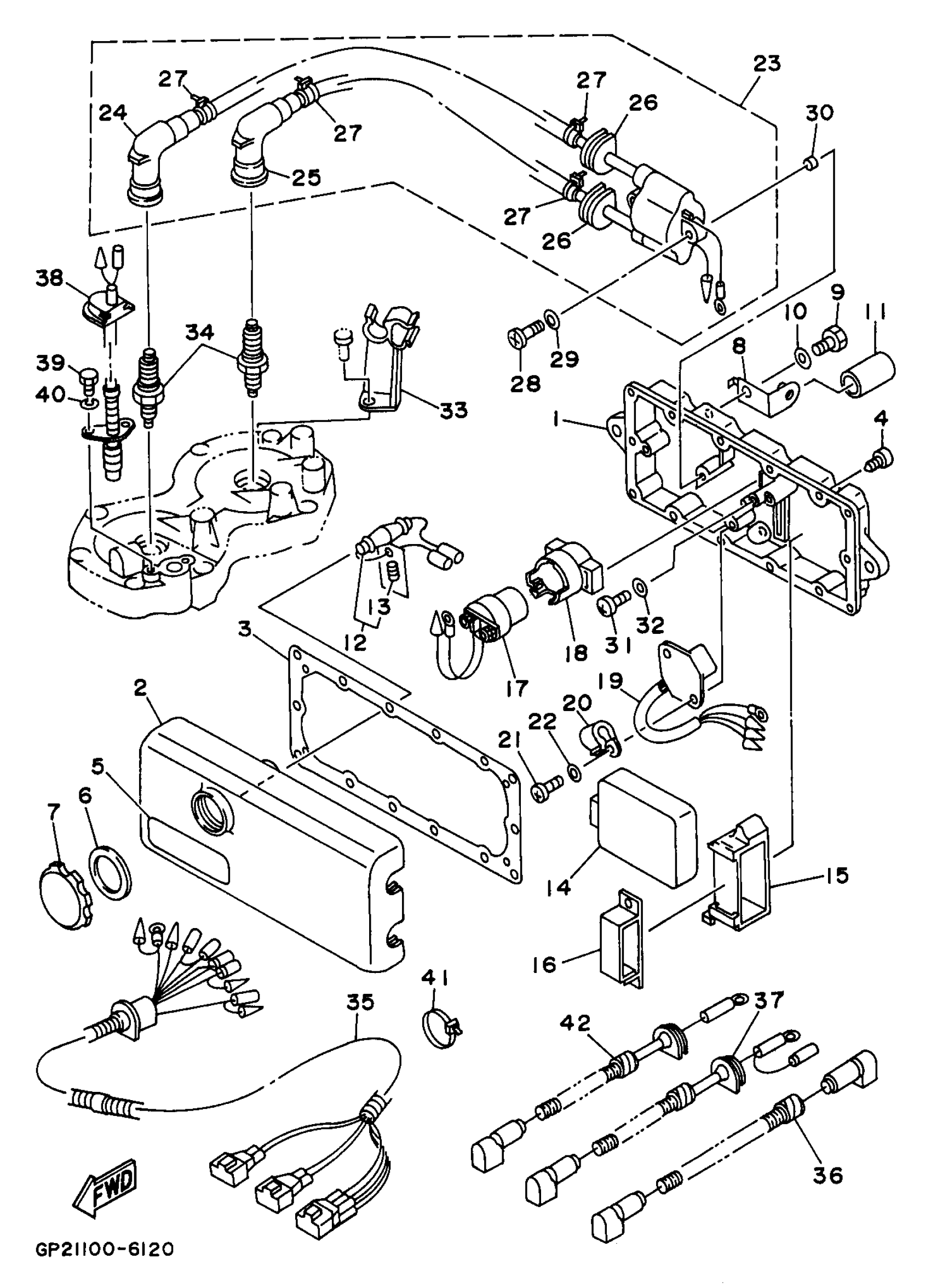

Yamaha RA760U (WAVE RAIDER 760) 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

64X-8552A-01-8P

Unavailable

2

COVER, CASE

6M6-8552E-01-00

Unavailable

3

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

4

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

5

MARK 3

6R7-83623-40-00

Unavailable

6

GASKET

6M6-81844-00-00

Unavailable

7

CAP

6M6-8132W-00-00

Unavailable

8

BRACKET

64X-85542-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-08016-00

Unavailable

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

HOSE 4

64X-82366-00-00

Unavailable

12

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

13

FUSE (10A)

1E6-82151-00-00

$7.99

14

C.D.I. UNIT ASSY

64X-85540-01-00

Unavailable

15

BAND

64X-85546-00-00

Unavailable

16

CLAMP

90464-06M29-00

Unavailable

17

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

18

HOLDER, RELAY

6M6-81952-01-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

20

CLAMP

90465-08028-00

Unavailable

21

SCREW, PAN HEAD

98580-06016-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

IGNITION COIL ASSY

64X-85570-01-00

Unavailable

24

. CAP, PLUG

62E-82371-10-00

Unavailable

25

. CAP, PLUG

62E-82371-10-00

Unavailable

26

GROMMET

90480-06M43-00

Unavailable

27

CLAMP

90465-10098-00

Unavailable

28

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

COLLAR(6R8)

90387-06M30-00

Unavailable

31

SCREW, PAN HEAD

98580-06016-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

CLAMP, CORD

62T-82361-00-00

Unavailable

34

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

35

EXTENSION, WIRE LEAD

62T-82553-01-00

Unavailable

36

WIRE,LEAD

62T-82117-01-00

Unavailable

37

WIRE, LEAD

62T-82117-11-00

Unavailable

38

THERMO SWITCH ASSEMBLY

64X-82560-00-00

Unavailable

39

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

CLAMP (6E5)

90465-13M11-00

Unavailable

42

WIRE, LEAD

6M6-82117-21-00

Unavailable
