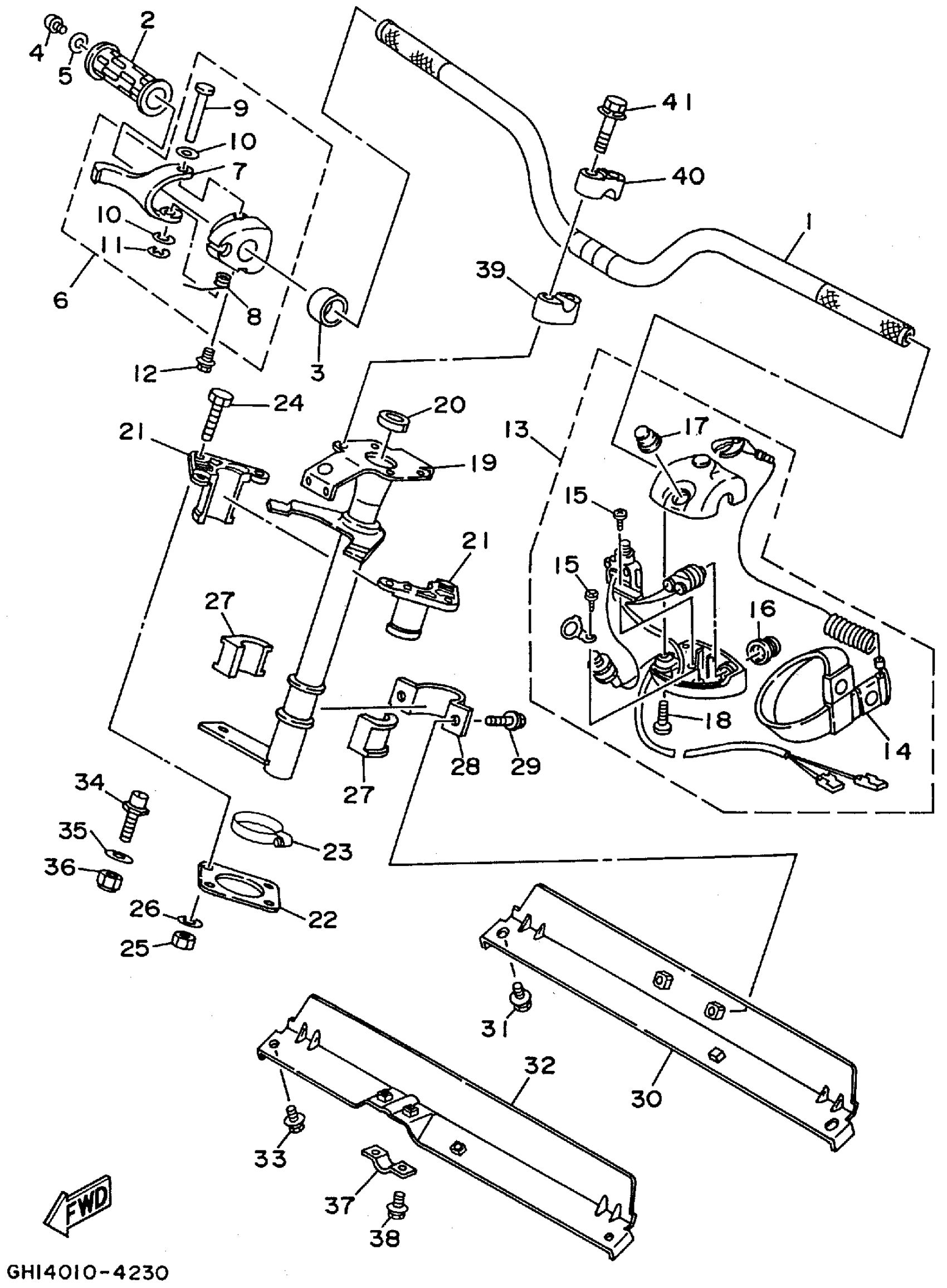

Yamaha RA700T (WAVE RAIDER) 1995 STEERING 1 Diagram

#

Description
Price

1

HANDLE

GH1-61552-00-00

Unavailable

2

GRIP, HANDLE 1

EW2-61553-00-00

Unavailable

3

SPACER(1LX)

90560-22281-00

$13.99

4

SCREW,TRASS HEAD (FJ0)

90149-05959-00

$7.49

5

WASHER, PLATE

90201-05800-00

Unavailable

6

THROTTLE LEVER ASSY

EW2-67250-02-00

Unavailable

7

. LEVER, THROTTLE

EW2-67255-00-00

Unavailable

8

. SPRING

EW2-67256-00-00

Unavailable

9

. SHAFT

EW2-67257-01-00

Unavailable

10

WASHER, PLAIN (646)

92990-05600-00

$0.80

11

CIRCLIP (EU0)

99080-04600-00

Unavailable

12

SCREW, WITH WASHER

90159-05900-00

Unavailable

13

SWITCH BOX ASSY

GA7-68310-01-00

Unavailable

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

Unavailable

15

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

16

. STOP BUTTON COMP

FK7-68312-02-00

Unavailable

17

. START BUTTON COMP

FK7-68313-02-00

Unavailable

18

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

19

COLUMN, STEERING

GP2-61541-00-00

Unavailable

20

PACKING, STEERING COLUMN

GH1-61469-00-00

Unavailable

21

BEARING, COLUMN

GH1-6141B-00-00

Unavailable

22

SEAL, RUBBER

GH1-6143C-30-00

Unavailable

23

BAND, HOSE 42

90601-14271-00

Unavailable

24

BOLT(JF7)

97080-06030-00

Unavailable

25

NUT, SELF-LOCKING

95720-06300-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

BEARING, STEERING

GH1-6141D-01-00

Unavailable

28

JOINT, BEARING

EU0-61588-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08903-00

Unavailable

30

BRACKET, BEARING

GH1-61433-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08903-00

Unavailable

32

BRACKET, STOPPER CABLE

GH1-61467-01-00

Unavailable

33

BOLT, WITH WASHER

90119-08903-00

Unavailable

34

PIN, STOPPER

FN8-6131B-00-00

Unavailable

35

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

36

NUT, NYLON (FN8)

95720-10300-00

Unavailable

37

STOPPER, CABLE

GH1-61468-01-00

Unavailable

38

BOLT, WITH WASHER

90119-06908-00

Unavailable

39

HOLDER, HANDLE UPPER

EU0-23814-02-00

Unavailable

40

HOLDER, HANDLE UPPER

EU0-23814-32-00

Unavailable

41

BOLT, WITH WASHER

90119-08925-00

Unavailable
