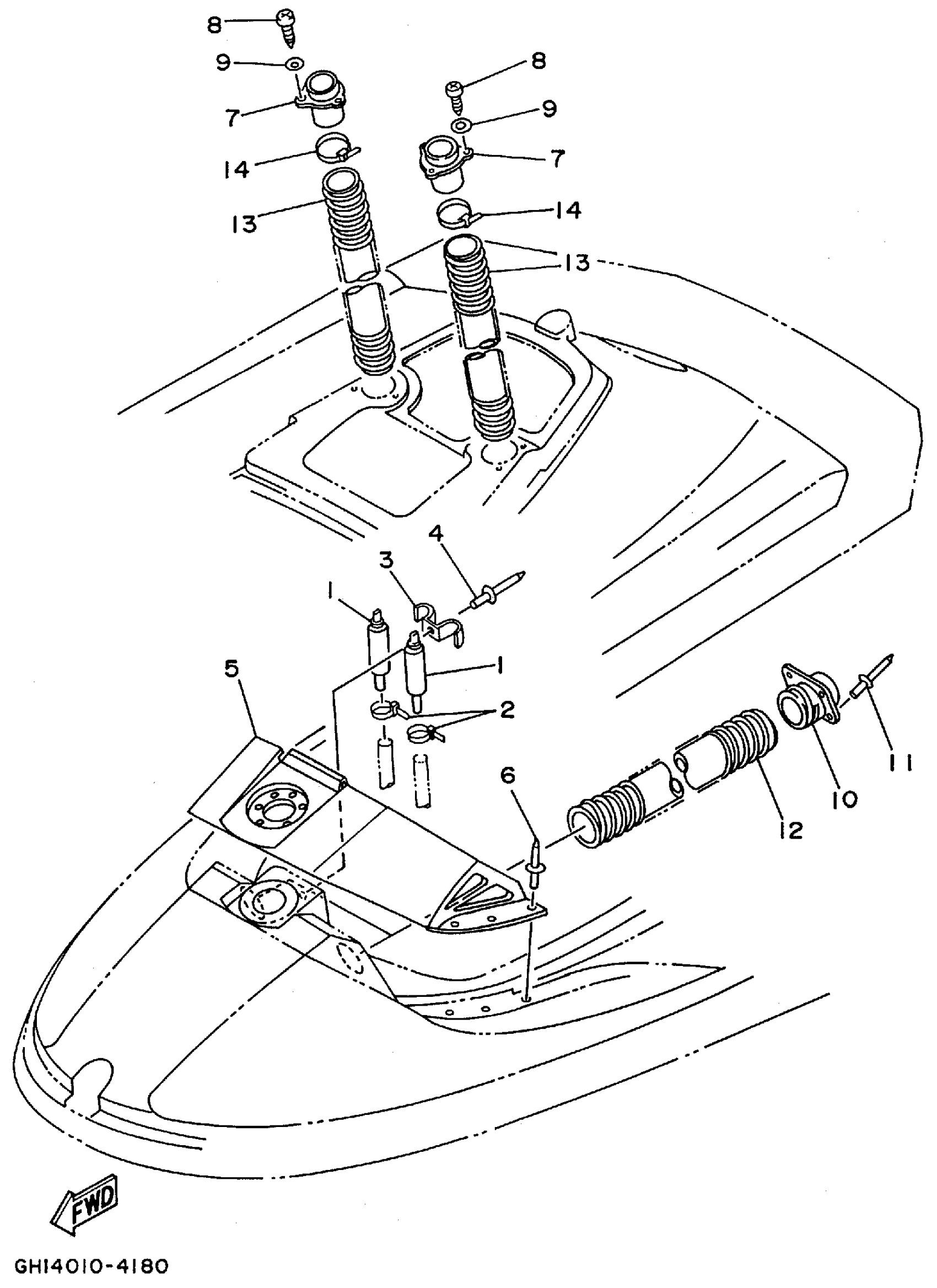

Yamaha RA700T (WAVE RAIDER) 1995 SEAT UNDER LOCKER 2 Diagram

#

Description
Price

1

AIR, VENT ASSY

EW2-62150-00-00

$20.99

2

CLAMP

90465-10098-00

$1.68

3

PLATE, GUIDE

GH1-6215G-00-00

Unavailable

4

RIVET (EU0)

90267-48938-00

$5.00

5

COVER, BOW

GH1-6521B-10-00

Unavailable

6

RIVET, BLIND

90267-489U6-00

$1.37

7

VENTILATOR, OUTLET

GH1-62139-00-00

Unavailable

8

SCREW, TAPPING

97780-40116-00

$3.57

9

WASHER, PLAIN (646)

92990-04600-00

$0.91

10

BASE, AIR INTAKE

GH1-62127-00-00

Unavailable

11

RIVET, BLIND

90267-48802-00

$1.98

12

HOSE, VENTILATOR 1

GH1-6213F-01-00

Unavailable

13

HOSE, VENTILATOR 2

GH1-6213G-00-00

Unavailable

14

NYLON CLIP 1(GD0)

90601-20016-00

$9.03
