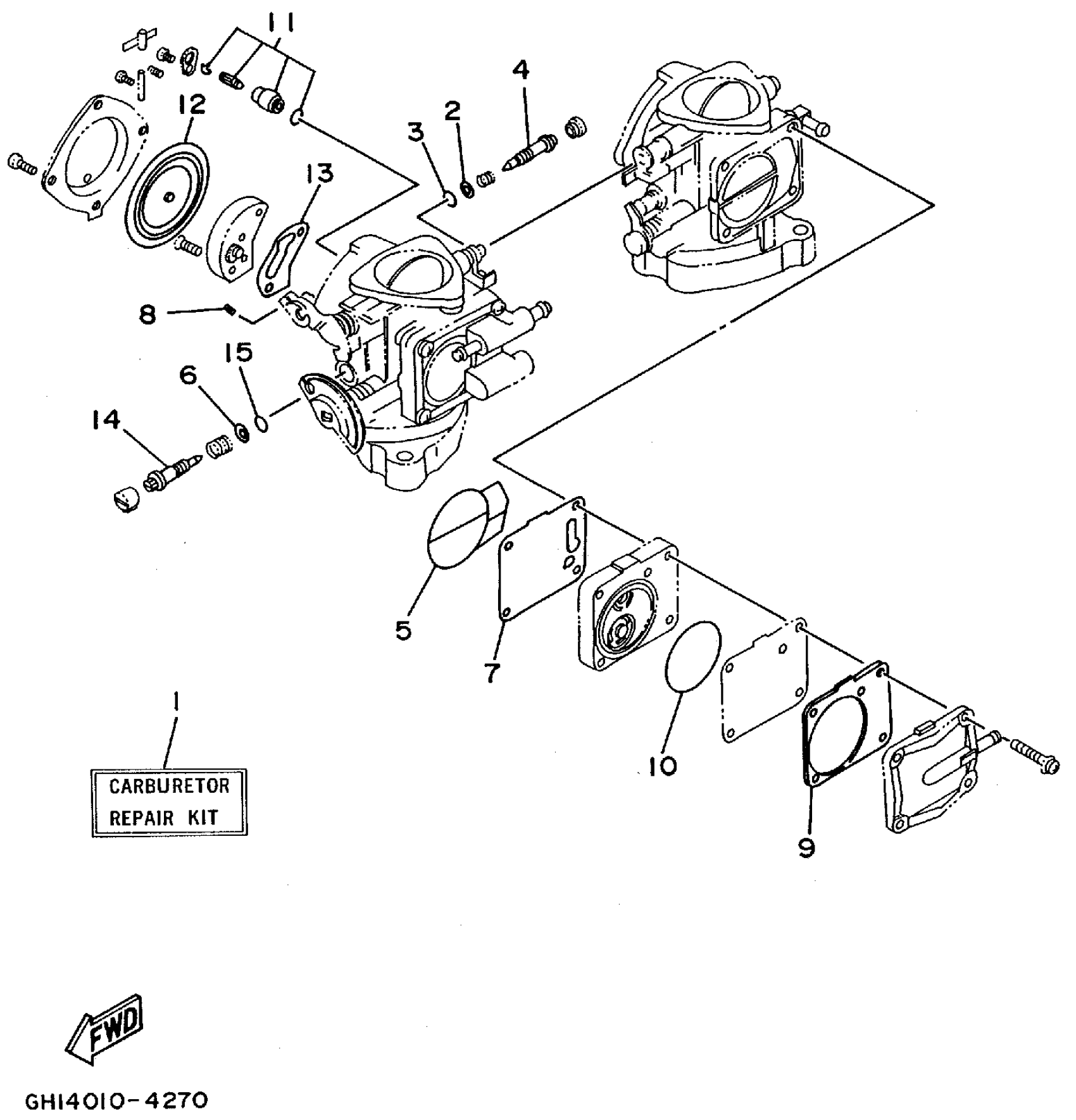

Yamaha RA700T (WAVE RAIDER) 1995 REPAIR KIT 2 Diagram

#

Description
Price

1

CARBURETOR REPAIR KIT

62T-W0093-00-00

$144.77

2

WASHER,NEEDLE

812-14235-00-00

$2.44

3

. O-RING

6K8-14562-00-00

$1.78

4

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.09

5

. O-RING

6K8-14564-00-00

$8.73

6

. WASHER

6K8-14537-00-00

$3.13

7

. DIAPHRAGM

6K8-24411-20-00

$30.39

8

. VALVE, CHECK

6K8-24421-10-00

$25.07

9

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$13.99

10

. O-RING

6K8-14563-00-00

Unavailable

11

NEEDLE

61X-14916-16-00

$22.25

12

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

13

. GASKET

6K8-14536-11-00

$8.35

14

. SCREW, PILOT

6K8-14923-10-00

Unavailable

15

O-RING

583-14561-00-00

$4.55
