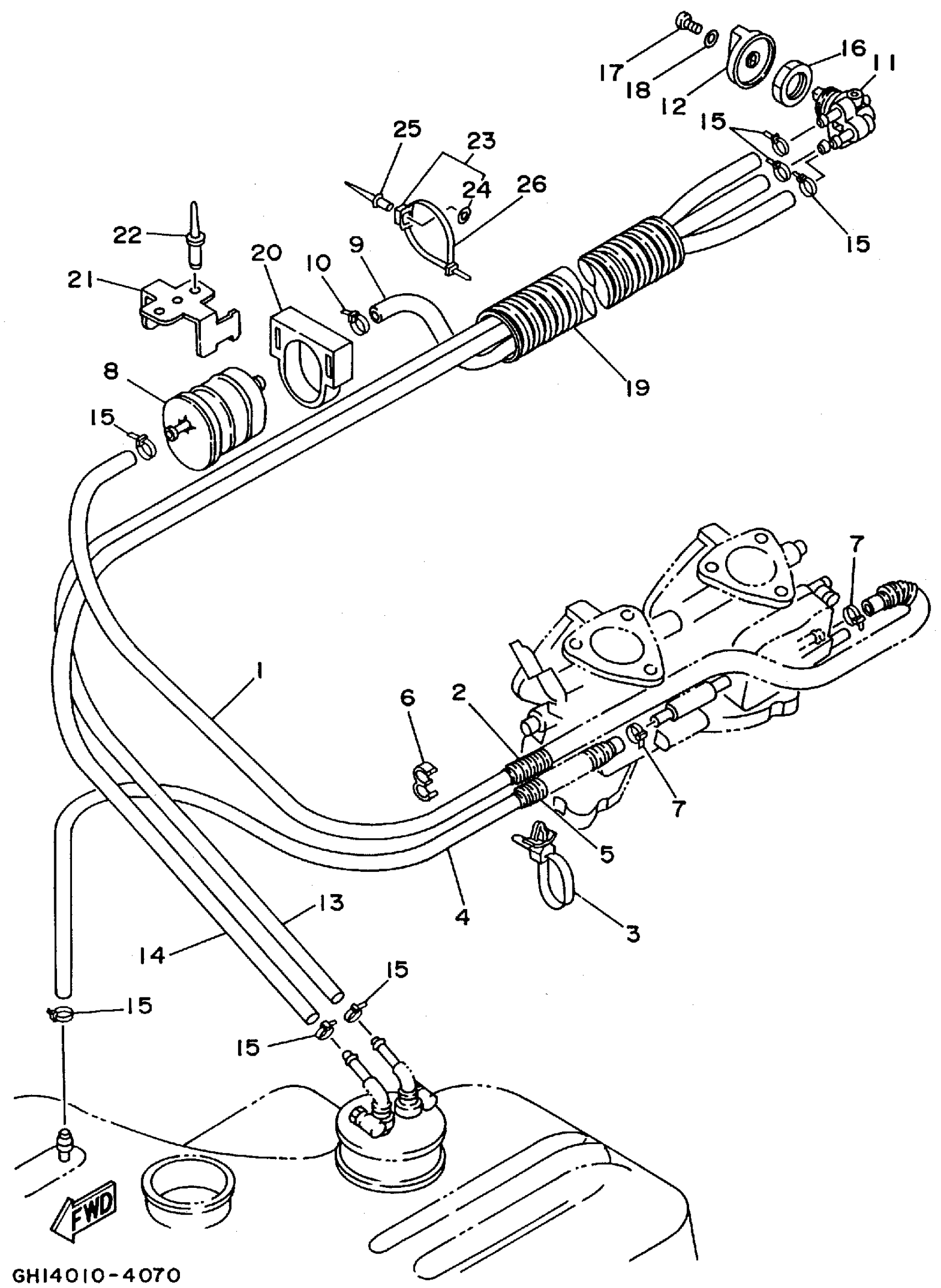

Find the part on the Fuel diagram for your 1995 Yamaha Wave Raider (RA700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Raider (RA700T) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

2

HOSE(6TC)

90446-14M51-00

1

$6.08

In stock

3

CLAMP(62T)

90465-12M56-00

1

$7.15

In stock

4

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

5

HOSE

90446-14M28-00

1
Out of stock

6

CLAMP(6M7)

90464-09M31-00

1

$6.23

In stock

7

CLAMP

90465-10098-00

1

$2.24

In stock

8

FILTER ASSY

6K8-24560-21-00

1

$25.83

In stock

9

HOSE (L1700)

90445-10M87-00

1
Out of stock

10

CLAMP

90465-10098-00

1

$2.24

In stock

11

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

12

LEVER, COCK

6K8-24524-10-00

1

$10.68

In stock

13

HOSE (L1700)

90445-10M87-00

1
Out of stock

14

HOSE (L1700)

90445-10M87-00

1
Out of stock

15

CLAMP

90465-10098-00

1

$2.24

In stock

16

NUT

90170-22M11-00

1
Out of stock

17

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

18

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

19

TUBE

GH1-6773D-00-00

1
Out of stock

20

HOLDER

EU0-67817-00-00

1

$17.99

In stock

21

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

22

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

23

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

24

. WASHER, PLAIN

90201-05925-00

1
Out of stock

25

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

26

BAND (EU0)

90601-20009-00

1

$6.46

In stock
