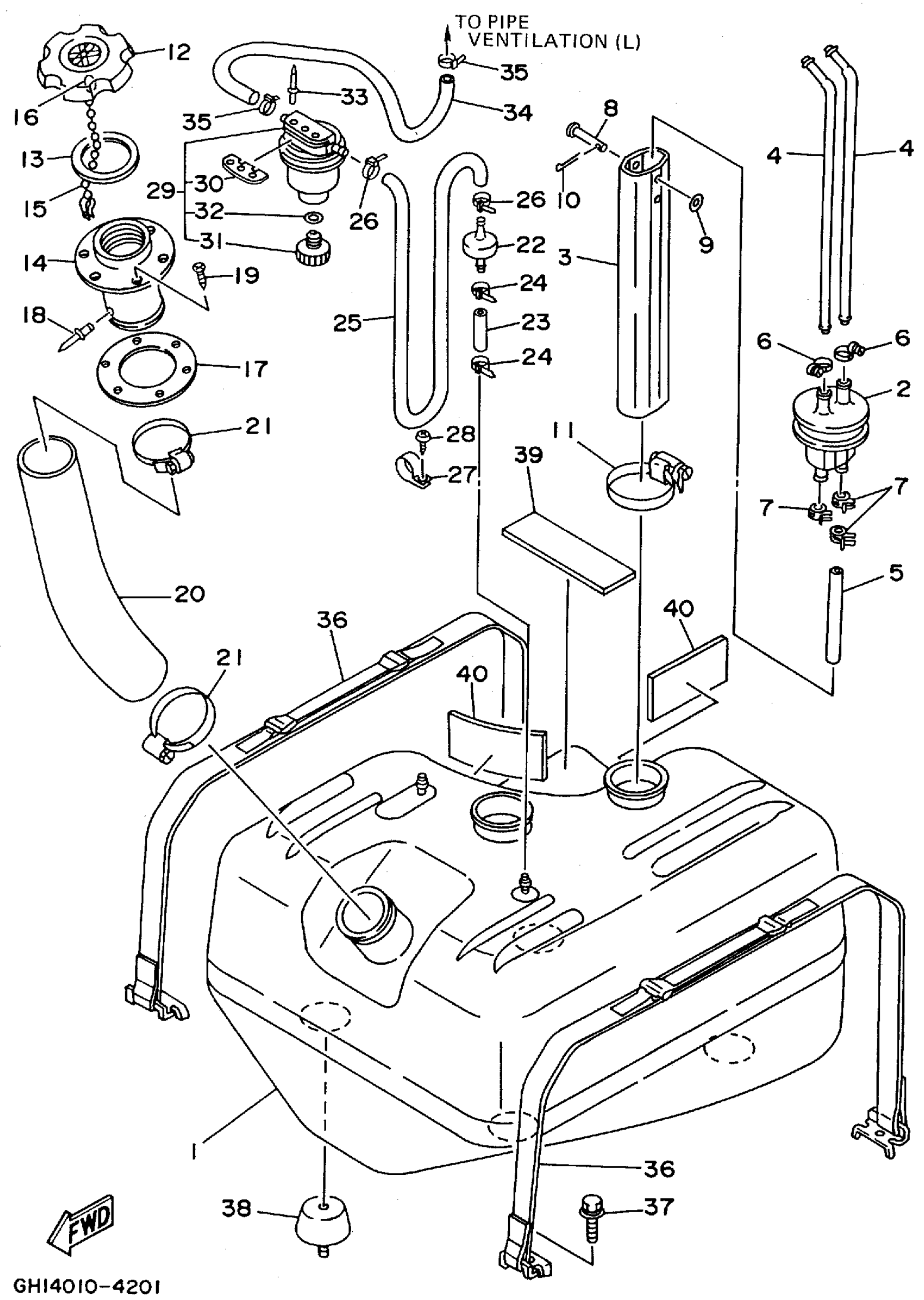

Yamaha RA700T (WAVE RAIDER) 1995 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

GH1-67711-01-00

Unavailable

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

PIPE, FILLER

EW2-67716-02-00

$24.98

4

PIPE, SUCTION 3

FN8-67714-02-00

Unavailable

5

HOSE (L198)

90445-11293-00

$6.69

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIN (FJ0)

91790-05040-00

$2.53

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

PIN. COTTER

91490-16010-00

$2.36

11

BAND, HOSE 62

90601-162U5-00

$6.17

12

CAP, FUEL FILLER

GA7-67831-01-00

Unavailable

13

PACKING 1

EU0-67832-00-00

$7.40

14

SOCKET

FN8-67833-00-00

Unavailable

15

. CHAIN BALL

EU0-67835-00-00

$5.18

16

COUPLING

EU0-67839-00-00

$6.36

17

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

18

. RIVET, BLIND

90267-40935-00

$1.28

19

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable

20

HOSE

GH1-67844-00-00

Unavailable

21

BAND, HOSE 55

90601-155U4-00

$5.87

22

CHECK VALVE

EU0-67767-31-00

$20.93

23

HOSE

90699-50100-00

$26.99

24

CLAMP

90465-10098-00

$1.68

25

HOSE

90699-50135-00

Unavailable

26

CLAMP

90465-10098-00

$1.68

27

CLIP, NYLON 17

90600-91728-00

$5.45

28

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

29

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

30

. PLATE, FILTER

EW2-62142-00-00

$44.99

31

. PLUG, DRAIN

70R-24543-00-00

$9.08

32

. O-RING

70R-24489-00-00

$5.00

33

RIVET, BLIND

90267-48940-00

$10.99

34

HOSE (L180)

90445-094K7-00

Unavailable

35

CLAMP

90465-10098-00

$1.68

36

BELT, TANK 1

GH1-67743-02-00

Unavailable

37

BOLT, WITH WASHER

90119-08903-00

Unavailable

38

DAMPER,FUEL TANK

GH1-6782B-01-00

Unavailable

39

MAT 1

GH1-6759B-00-00

Unavailable

40

MAT 2

GH1-6759C-00-00

$20.99
