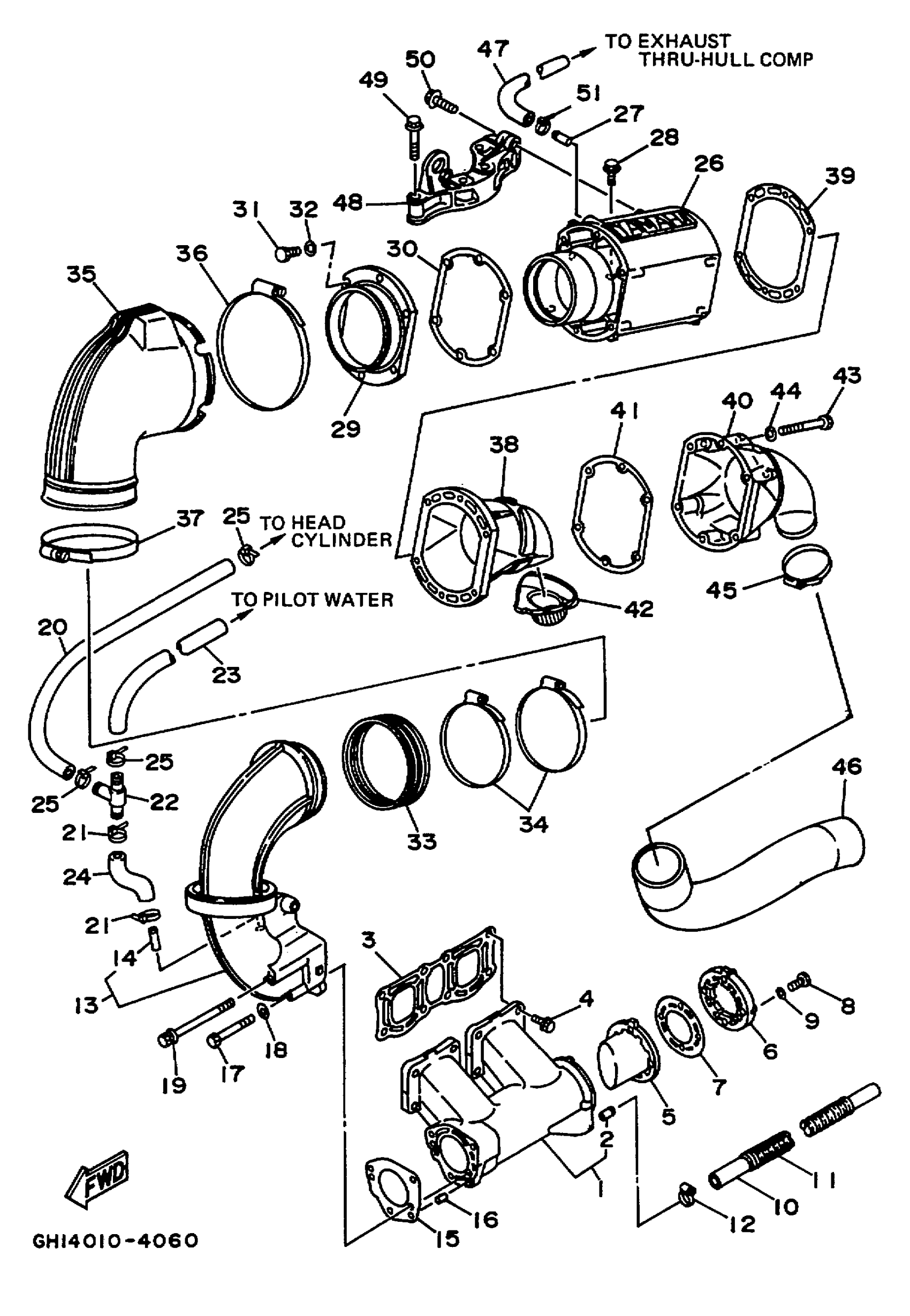

Yamaha RA700T (WAVE RAIDER) 1995 EXHAUST 1 Diagram
#
1
MUFFLER 1
62T-14711-10-94
Unavailable
2
. NIPPLE
6K8-51129-00-00
Unavailable
3
GASKET, EXHAUST PIPE
62T-14613-01-00
Unavailable
4
BOLT, FLANGE
90105-10M60-00
Unavailable
5
INNER COVER, EXHAUST
62T-41111-00-8S
Unavailable
6
PROTECTOR, MUFFLER 1
62T-14718-00-8S
Unavailable
7
. GASKET, MUFFLER DAMPER 1
62T-14739-00-00
Unavailable
8
BOLT(JF7)
97080-06030-00
$5.49
9
WASHER, PLAIN (646)
92990-06600-00
$2.80
10
HOSE (L380)
90445-14M25-00
$24.99
11
HOSE(61L)
90446-20M31-00
$7.49
12
HOSE CLAMP ASSY(62T)
90450-14M05-00
$17.99
13
RING, JOINT
62T-14712-00-9M
Unavailable
14
. NIPPLE
6K8-51129-00-00
Unavailable
15
GASKET, MUFFLER DAMPER 2
62T-14749-02-00
Unavailable
16
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
17
BOLT (6K8)
97013-08075-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
BOLT, WITH WASHER
90119-08M11-00
Unavailable
20
HOSE (L380)
90445-14M25-00
$24.99
21
CLAMP
90465-10098-00
Unavailable
22
PIPE, JOINT 4
62T-24378-00-00
Unavailable
23
HOSE (L1300)
90445-14M22-00
Unavailable
24
HOSE
90445-14M11-00
Unavailable
25
CLAMP
90465-10098-00
Unavailable
26
MUFFLER 2
62T-14721-00-8S
Unavailable
27
PIPE, JOINT
62T-14485-10-00
Unavailable
28
BOLT, FLANGE
90105-10M60-00
Unavailable
29
OUTER COVER, EXHAUST
62T-41113-00-8S
Unavailable
30
GASKET, EXHAUST OUTER COVER
62T-41114-01-00
Unavailable
31
BOLT
90101-06M27-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
$2.80
33
JOINT, EXHAUST 2
62T-14625-00-00
Unavailable
34
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
35
JOINT,EXHAUST L
62T-14615-09-00
Unavailable
36
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
37
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
38
INNER COVER,EXHAUST
62T-41121-00-8S
Unavailable
39
. GASKET, EXHAUST INNER COVER
62T-41122-00-00
Unavailable
40
OUTER COVER, EXHAUST
62T-41123-00-8S
Unavailable
41
. GASKET, EXHAUST OUTER COVER
62T-41124-00-00
Unavailable
42
. SEAL, RUBBER 1
62T-15761-00-00
Unavailable
43
BOLT(62J)
97013-06070-00
Unavailable
44
WASHER, PLAIN (646)
92990-06600-00
$2.80
45
HOSE CLAMP ASSY(62T)
90450-70M03-00
Unavailable
46
PIPE, OUTLET
62T-14752-30-00
Unavailable
47
HOSE (L1390)
90445-21M00-00
Unavailable
48
STAY, MUFFLER 1
62T-14771-00-00
Unavailable
49
BOLT, WITH WASHER
90119-10M72-00
Unavailable
50
BOLT, WASHER BASED
90105-10M45-00
Unavailable
51
CLAMP
90465-10098-00
Unavailable
