1995 Yamaha Wave Raider (RA700T) Engine Hatch Diagram

← All diagrams

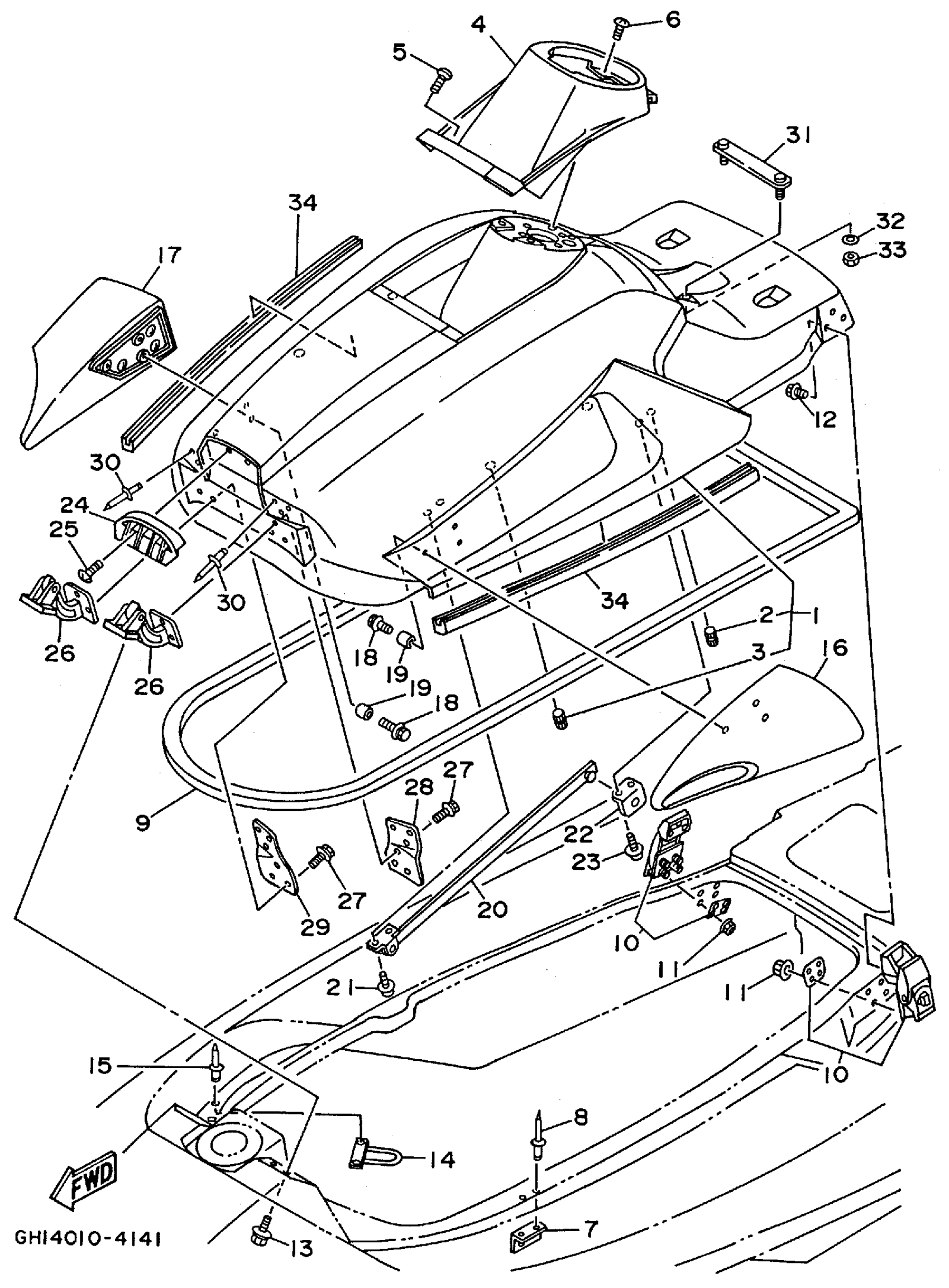

Find the part on the Engine Hatch diagram for your 1995 Yamaha Wave Raider (RA700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Raider (RA700T) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GH1-6516A-00-P0

1
Out of stock

2

NUT

90179-069U4-00

1
Out of stock

3

. NUT

90179-08927-00

1
Out of stock

4

COVER, ENGINE HATCH

GH1-6516N-10-00

1
Out of stock

5

SCREW(GH1)

90149-05903-00

1

$2.48

In stock

6

SCREW

90149-05984-00

1

$2.77

In stock

7

BRACKET, HATCH SUPPORT

FN8-62884-00-00

1
Out of stock

8

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

9

PACKING

GH1-62664-00-00

1
Out of stock

10

HATCH LOCK ASSY

FX1-62840-02-00

1
Out of stock

11

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

12

BOLT, WITH WASHER

90119-05936-00

1
Out of stock

13

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

14

GUIDE, CABLE

GH1-61557-00-00

1
Out of stock

15

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

16

MIRROR, PORT

GH1-6596B-10-00

1
Out of stock

17

MIRROR, STARBOARD

GH1-6596C-10-00

1
Out of stock

18

BOLT, HEX (MIRROR)

90119-06924-00

1
Out of stock

19

COLLAR

90387-06915-00

1
Out of stock

20

SUPPORT, HATCH

GH1-62891-01-00

1
Out of stock

21

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

22

FIX, PLATE

FN8-62892-00-00

1
Out of stock

23

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

24

UNIVERSAL, AIR INTAKE

GH1-62128-10-00

1

$80.99

In stock

25

SCREW

90149-04902-00

1
Out of stock

26

HINGE, HATCH

GH1-6517G-04-00

1
Out of stock

27

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

28

PLATE,HINGE (LH)

GH1-6517J-01-00

1
Out of stock

29

PLATE, HINGE (RH)

GH1-6517K-01-00

1
Out of stock

30

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

31

STAY, SEAT 1

GH1-6378C-00-00

1
Out of stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

34

TRIM

GH1-65162-01-00

1
Out of stock
