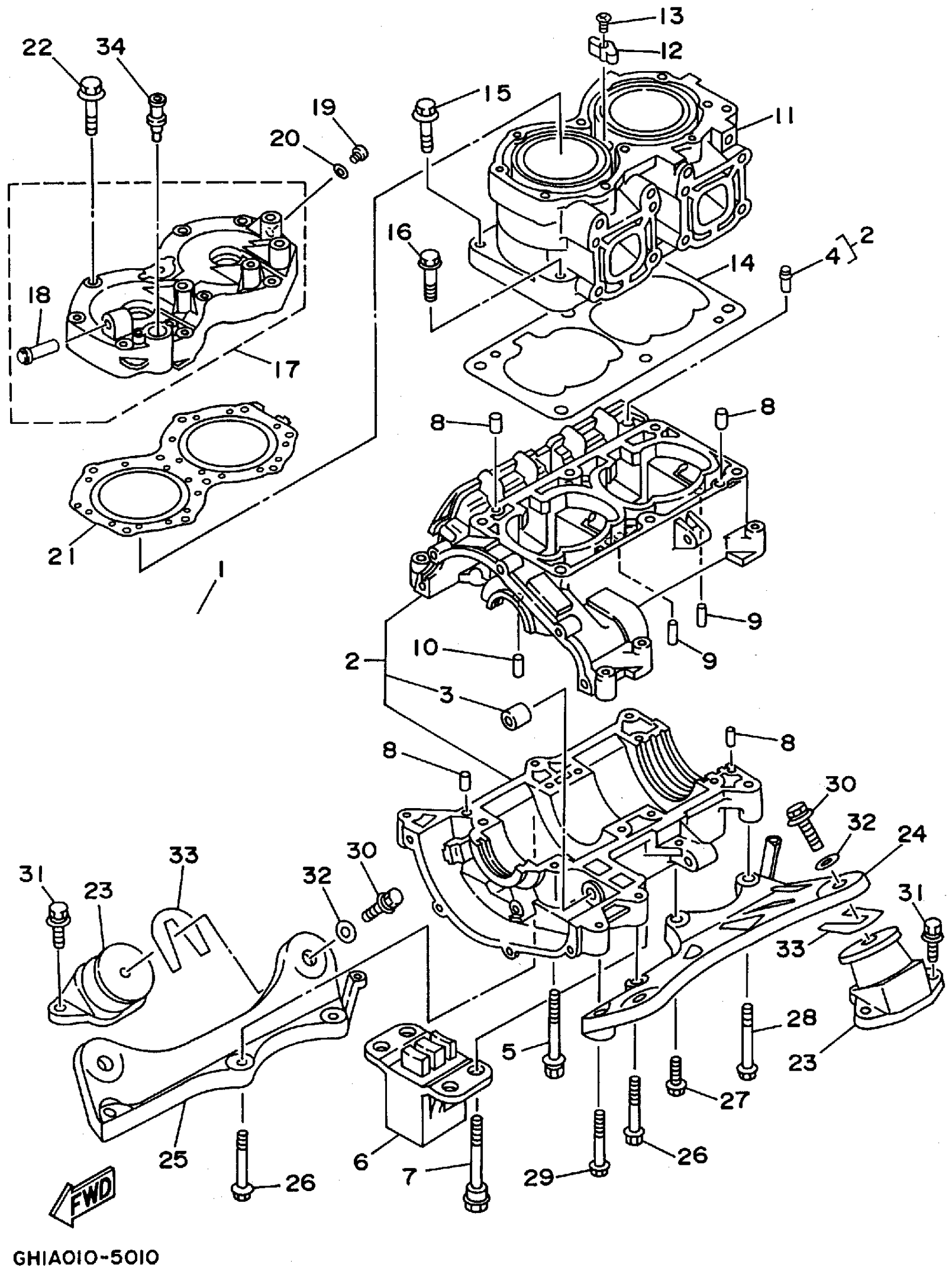

Yamaha RA700T (WAVE RAIDER) 1995 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

62T-W0090-03-8S

$3,365.66

2

CRANKCASE ASSY

62T-15100-00-00

$792.52

3

. BUSH, SOLID

90380-12M29-00

Unavailable

4

NIPPLE

62T-14251-10-00

$4.31

5

BOLT, WITH WASHER

90119-08M55-00

$3.03

6

STOPPER, UPPER MOUNT

62T-44532-10-00

Unavailable

7

BOLT

90109-08M56-00

$3.88

8

PIN, DOWEL (614)

93606-12019-00

$3.50

9

PIN (2H7)

93603-10049-00

Unavailable

10

PIN, DOWEL (8H1)

93604-07141-00

$1.29

11

CYLINDER 1

62T-11311-00-8S

$855.21

12

ANODE

6E5-11325-00-00

$4.52

13

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

14

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

15

BOLT, WITH WASHER

90119-10M56-00

$10.04

16

BOLT (6F5)

90119-10M07-00

Unavailable

17

HEAD, CYLINDER 1

62T-11111-00-8S

$361.18

18

. NIPPLE

6K8-51129-00-00

$9.87

19

PLUG, STRAIGHT SCREW

90340-08002-00

$11.42

20

GASKET

90430-08003-00

$1.60

21

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$56.00

22

BOLT, WITH WASHER

90119-08019-00

$5.00

23

MOUNT RUBBER

6M6-44517-A2-94

$86.17

24

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$129.84

25

BRACKET, REAR UPPER 1

6R7-21425-01-00

$137.30

26

BOLT, WITH WASHER

90119-10M23-00

$10.04

27

BOLT, WITH WASHER

90119-10M00-00

$8.56

28

BOLT, WITH WASHER

90119-10M03-00

$8.94

29

BOLT, WITH WASHER

90119-10M01-00

$8.94

30

BOLT, WITH WASHER

90119-08904-00

$3.02

31

BOLT, WITH WASHER

90119-08038-00

$4.72

32

PLATE

EU0-67324-00-00

$10.99

33

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

33

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

33

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

33

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

33

SHIM (T=2.0)

EU0-67354-E0-00

$3.88

34

PLUG, WATER CHECK

6E0-28193-01-94

Unavailable
