- RA700S (WAVE RAIDER) 1994
SEAT (UNDER L0CKER 1)

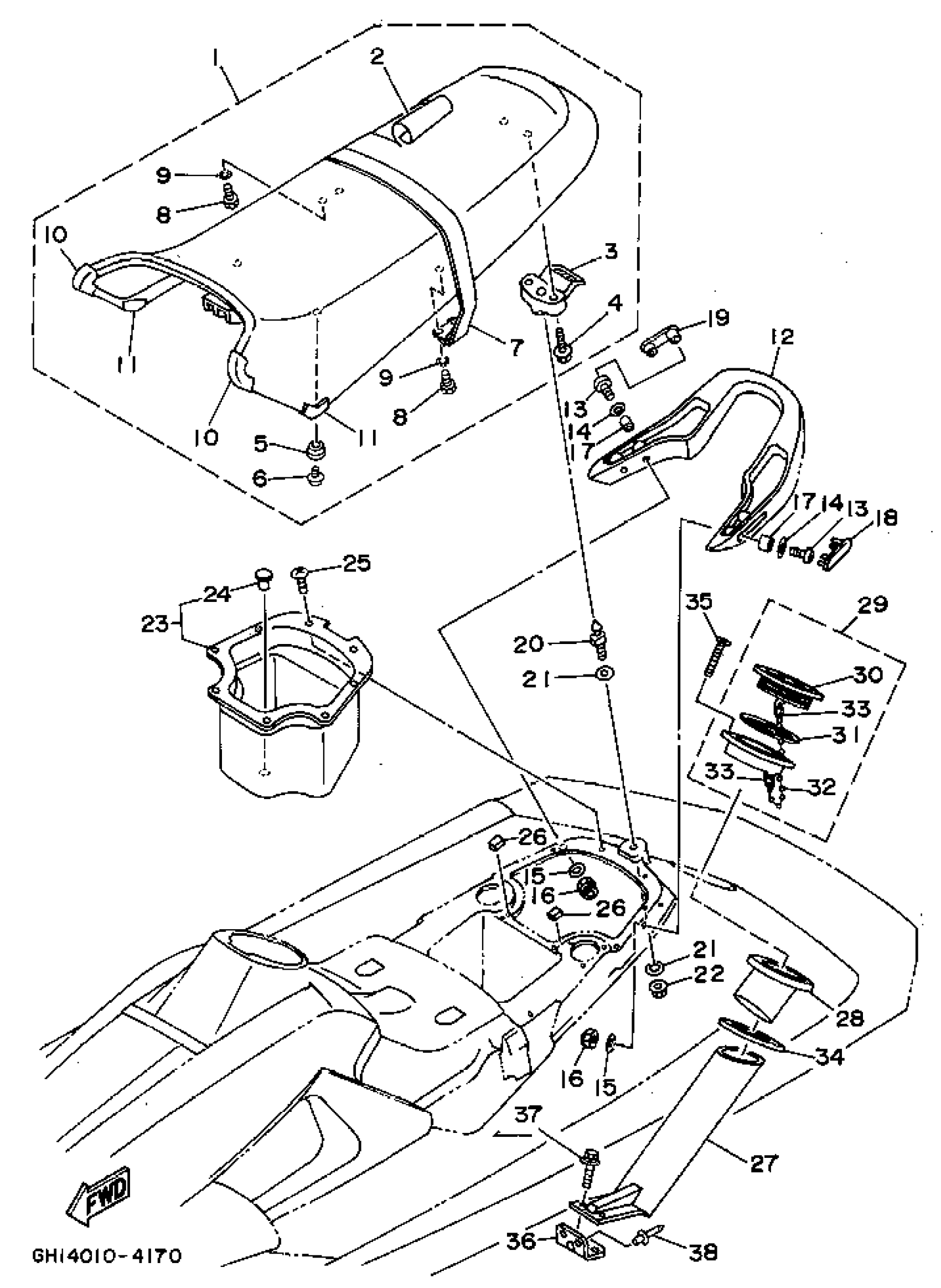

Yamaha RA700S (WAVE RAIDER) 1994 SEAT (UNDER L0CKER 1) Diagram
#
1
DOUBLE SEAT ASSEMBLY
GH1-6371A-00-00
Unavailable
2
. COVER, SEAT 1
GH1-6371B-00-00
Unavailable
3
SEAT LOCK ASSY
GH1-63850-03-00
Unavailable
4
BOLT, WITH WASHER
90119-06914-00
Unavailable
5
. STOPPER, SEAT
GH1-63729-00-00
Unavailable
6
. SCREW, WITH WASHER
97980-06116-00
Unavailable
7
. BAND, SEAT COMP
GH1-6373D-00-00
Unavailable
8
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
9
WASHER, SPRING
92995-06100-00
Unavailable
10
. PAD, SEAT 1
GH1-6375A-00-00
Unavailable
11
. PAD, SEAT 2
GH1-6375B-00-00
Unavailable
12
GRIP, HAND
GH1-6271B-00-00
Unavailable
13
SCREW, PAN HEAD(6B0)
97885-06025-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
WASHER, PLATE
90201-06020-00
$9.49
16
NUT, SELF-LOCKING
95720-06300-00
Unavailable
17
COLLAR
90387-06914-00
Unavailable
18
CAP, GRIP HAND LH
GH1-6271C-00-00
Unavailable
19
CAP, GRIP HAND RH
GH1-6271D-00-00
Unavailable
20
PIN
GH1-63774-01-00
Unavailable
21
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
22
NUT, FLANGE
95780-10300-00
Unavailable
23
UNDER LOCKER ASSEMBLY
GH1-6474A-00-00
Unavailable
24
PLUG(EU0)
90605-50201-00
Unavailable
25
SCREW
90149-04943-00
Unavailable
26
PACKING, LOCKER UNDER
GH1-6474D-00-00
Unavailable
27
BOX, FIRE EXTINGUISHER
GA7-65983-00-00
Unavailable
28
GROMMET
GA7-65984-00-00
Unavailable
29
INSPECTION CVR ASY
EU0-62720-31-00
Unavailable
30
COVER, INSPECTION
EU0-62721-31-00
Unavailable
31
. RING
93211-03902-00
Unavailable
32
. CHAIN BALL
EU0-67835-30-00
Unavailable
33
COUPLING
EU0-67839-00-00
Unavailable
34
PLATE, FIRE EXTINGUISHER
GA7-6593J-00-00
Unavailable
35
SCREW,FLAT HEAD
98780-04535-00
Unavailable
36
BRKT. FIRE EXTINGUISHER
GH1-6593H-00-00
Unavailable
37
BOLT,WITH WASHER
90119-06940-00
Unavailable
38
RIVET, BLIND
90267-48934-00
Unavailable
