REPAIR KIT 1

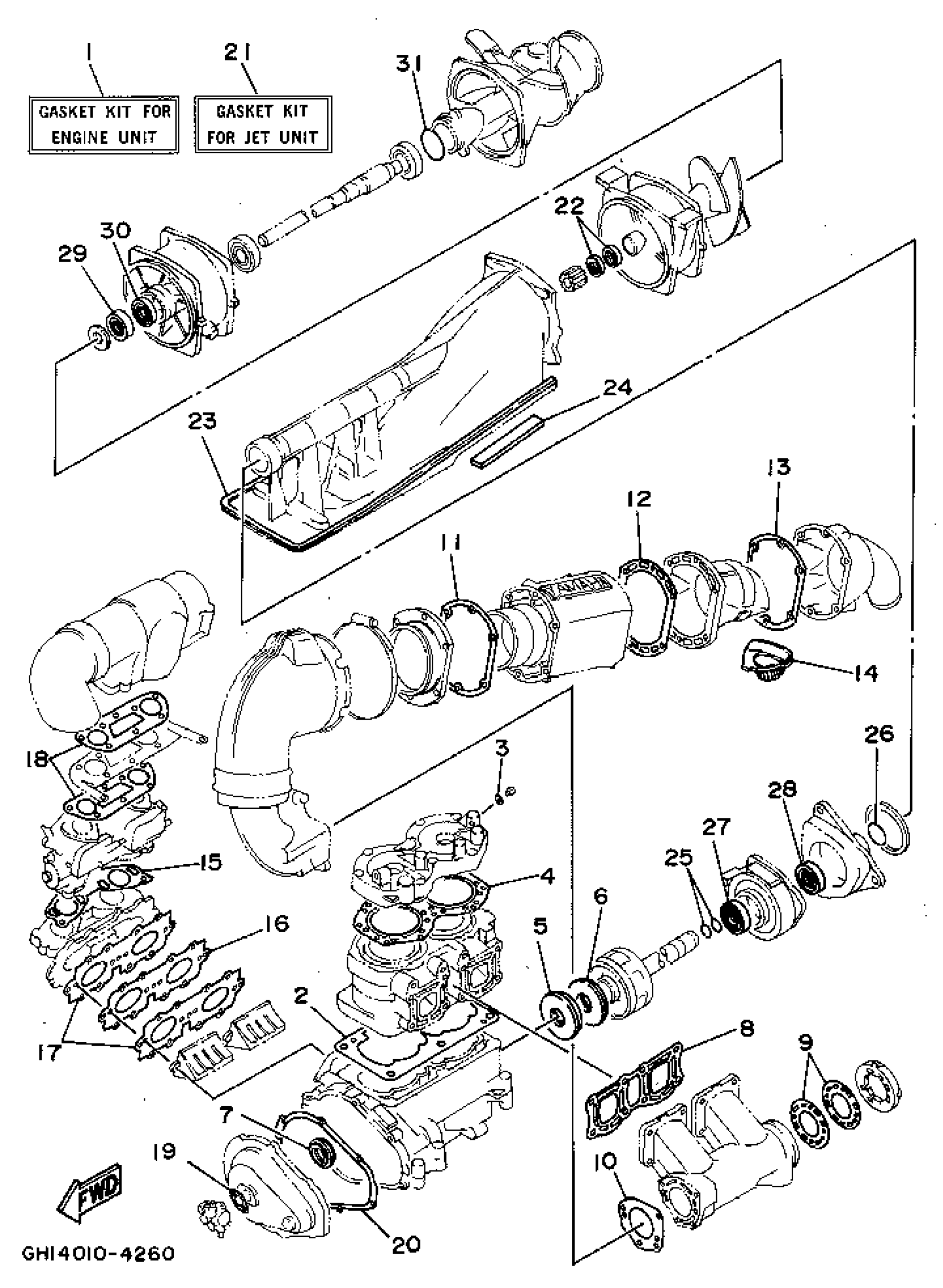

Yamaha RA700S (WAVE RAIDER) 1994 REPAIR KIT 1 Diagram
#
1
GASKET KIT FOR ENGINE UNIT
62T-W0001-01-00
Unavailable
2
GASKET, CYLINDER
6M6-11351-A2-00
Unavailable
3
GASKET
90430-08003-00
Unavailable
4
GASKET, CYLINDER HEAD 1
62T-11181-01-00
Unavailable
5
. OIL SEAL
93102-36M33-00
Unavailable
6
. OIL SEAL
93101-36M46-00
Unavailable
7
. OIL SEAL
93103-32M01-00
Unavailable
8
GASKET, EXHAUST PIPE
62T-14613-01-00
Unavailable
9
. GASKET, MUFFLER DAMPER 1
62T-14739-00-00
Unavailable
10
GASKET, MUFFLER DAMPER 2
62T-14749-02-00
Unavailable
11
GASKET, EXHAUST OUTER COVER
62T-41114-01-00
Unavailable
12
. GASKET, EXHAUST INNER COVER
62T-41122-00-00
Unavailable
13
. GASKET, EXHAUST OUTER COVER
62T-41124-00-00
Unavailable
14
. SEAL, RUBBER 1
62T-15761-00-00
Unavailable
15
. GASKET, MANIFOLD
62T-13556-00-00
Unavailable
16
. PLATE,REED VALVE
62T-13624-00-00
Unavailable
17
. GASKET
62T-13566-00-00
Unavailable
18
. GASKET, AIR COOLER COVER 1
62T-13674-00-00
Unavailable
19
. GASKET, PUMP CASE
6R8-13116-A0-00
Unavailable
20
. GASKET, HOLE COVER
6M6-81365-A0-00
Unavailable
21
GASKET KIT FOR JET UNIT
62T-W0001-20-00
Unavailable
22
OIL SEAL(6R8)
93102-18M35-00
Unavailable
23
. FELT, PACKING
6R8-51367-01-00
Unavailable
24
. FELT, PACKING
62T-51368-00-00
Unavailable
25
O-RING(6R7)
93210-17MA4-00
Unavailable
26
O-RING
93210-35M72-00
Unavailable
27
OIL SEAL(62T)
93101-25M55-00
Unavailable
28
OIL SEAL
93101-24001-00
Unavailable
29
OIL SEAL(6R7)
93102-25M34-00
Unavailable
30
OIL SEAL(6R7)
93101-25M50-00
Unavailable
31
. O-RING
93210-46M16-00
Unavailable
