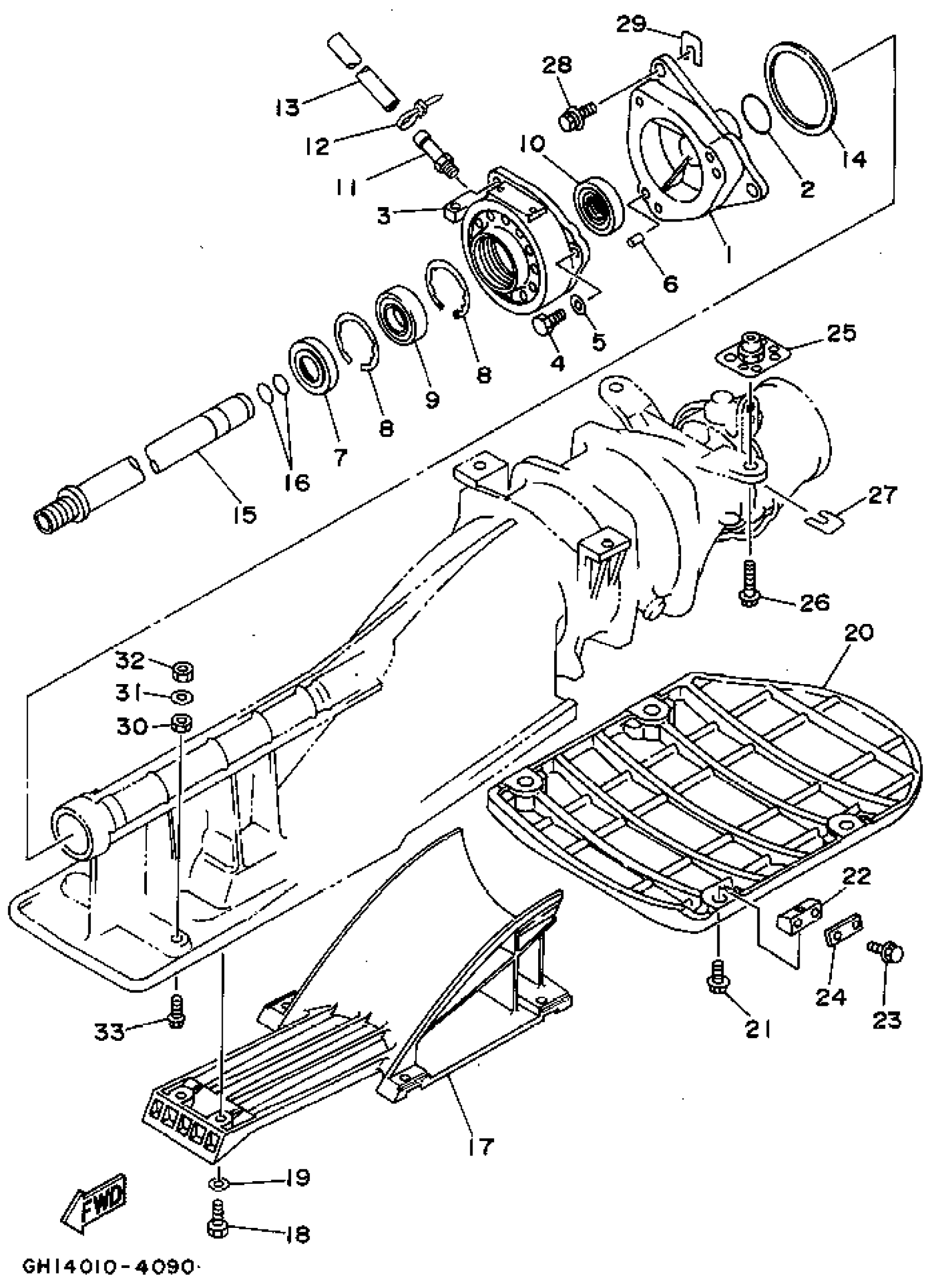

Yamaha RA700S (WAVE RAIDER) 1994 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

62G-45331-01-94

Unavailable

2

O-RING

93210-35M72-00

$14.99

3

HOUSING SET, BEARING (61X-00)

99999-02643-00

Unavailable

3

HOUSING, BEARING

61X-G5332-00-00

Unavailable

4

BOLT (62G)

97095-08025-00

$8.49

5

.. WASHER, PLATE

92990-08600-00

Unavailable

6

PIN, DOWEL(6R7)

93606-07M17-00

$9.49

6

PIN, DOWEL (614)

93606-12019-00

$4.24

7

OIL SEAL(62T)

93101-25M55-00

$30.99

8

CIRCLIP

93430-47M04-00

Unavailable

9

BEARING(62G)

93306-205U6-00

Unavailable

10

OIL SEAL

93101-24001-00

$31.99

11

NIPPLE, HOSE

61L-45378-00-00

Unavailable

12

CLAMP

90465-10098-00

Unavailable

13

HOSE (L445)

90445-09M21-00

$26.99

14

SEAL

6K8-45127-00-00

Unavailable

15

SHAFT, COUPLER

6R8-51323-02-00

Unavailable

15

SHAFT,COUPLER

6R8-51323-10-00

Unavailable

16

O-RING(6R7)

93210-17MA4-00

Unavailable

17

SCREEN INTAKE

62T-51333-01-94

Unavailable

18

BOLT (FJ0)

97080-06018-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

PLATE 2

GH1-6273B-01-00

Unavailable

21

BOLT, WITH WASHER

90119-08927-00

Unavailable

22

PACKING

FX1-62733-00-00

Unavailable

23

BOLT, WITH WASHER

90119-08038-00

Unavailable

24

PACKING

GH1-62663-01-00

Unavailable

25

NUT

90179-10957-00

Unavailable

26

BOLT

90119-10906-00

Unavailable

27

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

27

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

27

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

27

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

28

BOLT, WITH WASHER

90119-08907-00

Unavailable

29

SHIM (T=0.5)

GD0-67249-A0-00

Unavailable

29

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

30

NUT, T

90180-06900-00

Unavailable

31

WASHER, PLATE

92990-10600-00

Unavailable

32

NUT(624)

95380-10600-00

Unavailable

33

BOLT, WITH WASHER(GH1)

90119-06934-00

Unavailable
