- RA700S (WAVE RAIDER) 1994
JET UNIT 1

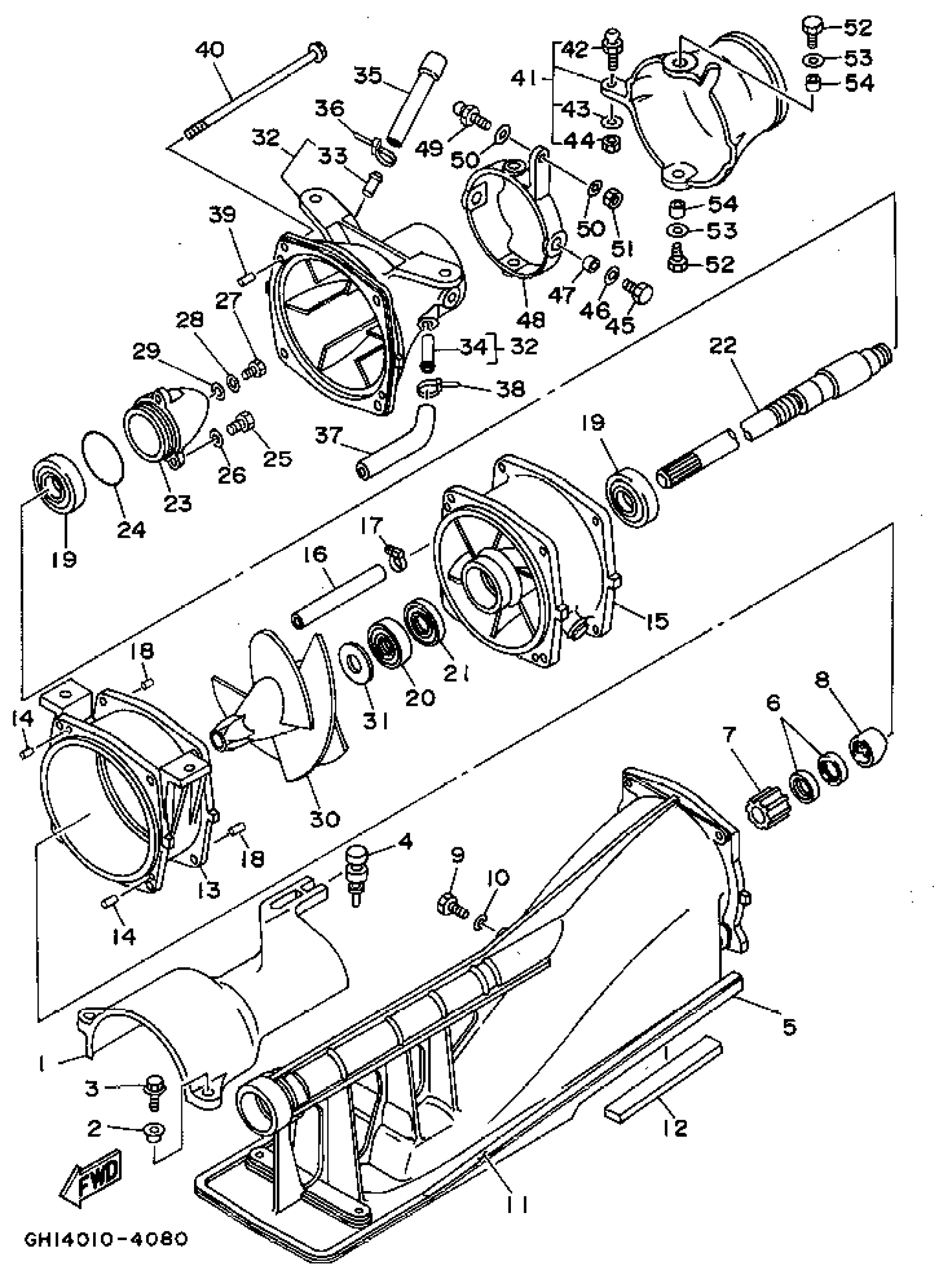

Yamaha RA700S (WAVE RAIDER) 1994 JET UNIT 1 Diagram
#
1
COVER
62T-51381-00-00
Unavailable
2
COLLAR
90387-06M60-00
Unavailable
3
BOLT, HEXAGON W/W DEEP RECESS
97E95-06525-00
Unavailable
4
GROMMET(6R7)
90480-06M46-00
$12.49
5
DUCT, INTAKE
62T-51311-03-94
Unavailable
6
OIL SEAL(6R8)
93102-18M35-00
Unavailable
7
BUSHING, DRIVE SHAFT
6R8-45318-00-00
Unavailable
8
SPACER
6R8-51348-02-94
Unavailable
9
BOLT
90101-06M27-00
Unavailable
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
. FELT, PACKING
6R8-51367-01-00
Unavailable
12
. FELT, PACKING
62T-51368-00-00
Unavailable
13
HOUSING, IMPELLER
6R8-51312-03-94
Unavailable
14
PIN, DOWEL (614)
93606-12019-00
$4.24
15
DUCT, IMPELLER
62T-51315-01-00
Unavailable
16
HOSE
90445-14M17-00
Unavailable
17
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
18
PIN, DOWEL (614)
93606-12019-00
$4.24
19
BEARING (6K8)
93306-205U1-00
Unavailable
20
OIL SEAL(6R7)
93102-25M34-00
Unavailable
21
OIL SEAL(6R7)
93101-25M50-00
Unavailable
22
SHAFT, DRIVE
6R8-45511-00-00
Unavailable
23
CAP
62T-51326-00-00
Unavailable
24
. O-RING
93210-46M16-00
Unavailable
25
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
26
WASHER, PLAIN (646)
92990-06600-00
$2.80
27
BOLT(GH1)
97080-06012-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
$2.80
29
. GASKET
90430-06M03-00
Unavailable
30
IMPELLER
62T-51321-A0-00
Unavailable
31
SPACER
62T-51348-00-00
Unavailable
32
NOZZLE
62T-51318-01-94
Unavailable
33
. NIPPLE
6K8-51129-00-00
Unavailable
34
. NIPPLE
62T-51129-00-00
Unavailable
35
PIPE 1
62T-51673-00-00
Unavailable
36
CLAMP
90465-10098-00
Unavailable
37
HOSE (L380)
90445-14M25-00
Unavailable
38
CLAMP
90465-10098-00
Unavailable
39
PIN, DOWEL (614)
93606-12019-00
$4.24
40
BOLT(6R8)
90101-06M04-00
Unavailable
41
NOZZLE, DEFLECTOR
62T-51313-02-00
Unavailable
42
. BOLT, JOINT
6R7-42316-00-00
Unavailable
43
WASHER, PLATE
90201-06M02-00
Unavailable
44
NUT(650)
95380-06700-00
Unavailable
45
BOLT, HEXAGON
97095-08018-00
Unavailable
46
.. WASHER, PLATE
92990-08600-00
Unavailable
47
COLLAR
90387-08M08-00
Unavailable
48
RING,TRIM
62T-51190-01-00
Unavailable
49
. BOLT, JOINT
6R7-42316-00-00
Unavailable
50
WASHER, PLATE
90201-06M31-00
Unavailable
51
NUT(650)
95380-06700-00
Unavailable
52
BOLT, HEXAGON
97095-08020-00
Unavailable
53
.. WASHER, PLATE
92990-08600-00
Unavailable
54
COLLAR(6R7)
90387-08M06-00
Unavailable
