Description

Price

1

HOSE (L1040)

90445-10MA9-00

$68.99

2

HOSE(6TC)

90446-14M51-00

$7.49

3

CLAMP(62T)

90465-12M56-00

$8.49

4

HOSE (L1040)

90445-10MA9-00

$68.99

5

HOSE

90446-14M28-00

Unavailable

6

CLAMP(6M7)

90464-09M31-00

$8.49

7

CLAMP

90465-10098-00

Unavailable

8

FILTER ASSY

6K8-24560-21-00

Unavailable

9

HOSE (L1700)

90445-10M87-00

Unavailable

10

CLAMP

90465-10098-00

Unavailable

11

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

12

LEVER, COCK

6K8-24524-10-00

Unavailable

13

HOSE (L1700)

90445-10M87-00

Unavailable

14

HOSE (L1700)

90445-10M87-00

Unavailable

15

CLAMP

90465-10098-00

Unavailable

16

NUT

90170-22M11-00

Unavailable

17

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

TUBE

GH1-6773D-00-00

Unavailable

20

HOLDER

EU0-67817-00-00

Unavailable

21

BRACKET, FUEL FILTER

FN8-67816-00-00

Unavailable

22

RIVET (EU0)

90267-48938-00

Unavailable

23

CLAMP COMP (EU0)

90600-91736-00

Unavailable

24

. WASHER, PLAIN

90201-05925-00

Unavailable

25

RIVET, BLIND

90267-48802-00

Unavailable

26

BAND (EU0)

90601-20009-00

Unavailable

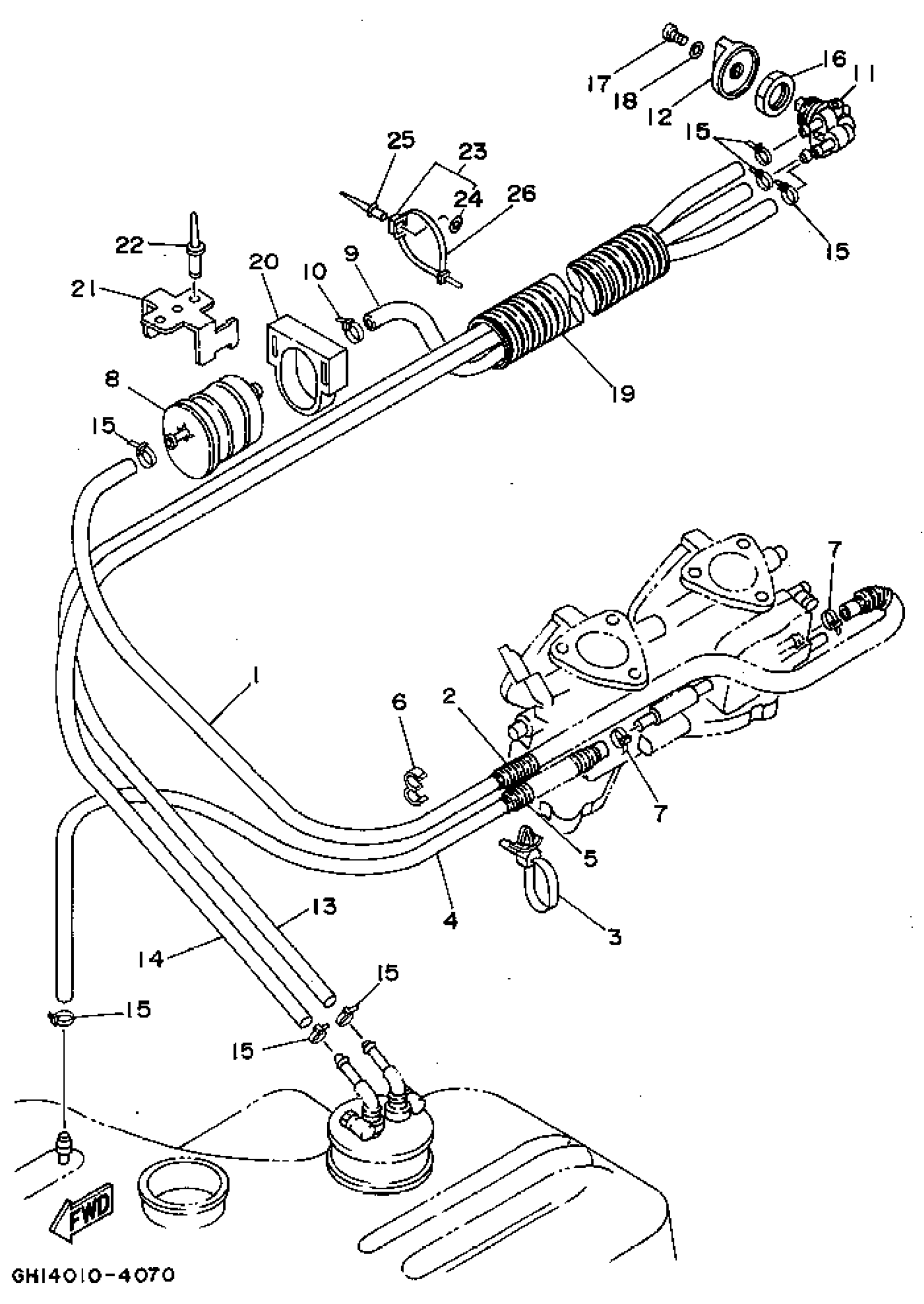

Yamaha RA700S (WAVE RAIDER) 1994 FUEL Diagram

HOSE (L1040)

HOSE(6TC)

CLAMP(62T)

HOSE (L1040)

HOSE

CLAMP(6M7)

CLAMP

FILTER ASSY

HOSE (L1700)

CLAMP

FUEL COCK ASSY 1

LEVER, COCK

HOSE (L1700)

HOSE (L1700)

CLAMP

NUT

SCREW, PAN HEAD (E56)

WASHER, PLAIN (646)

TUBE

HOLDER

BRACKET, FUEL FILTER

RIVET (EU0)

CLAMP COMP (EU0)

. WASHER, PLAIN

RIVET, BLIND

BAND (EU0)
