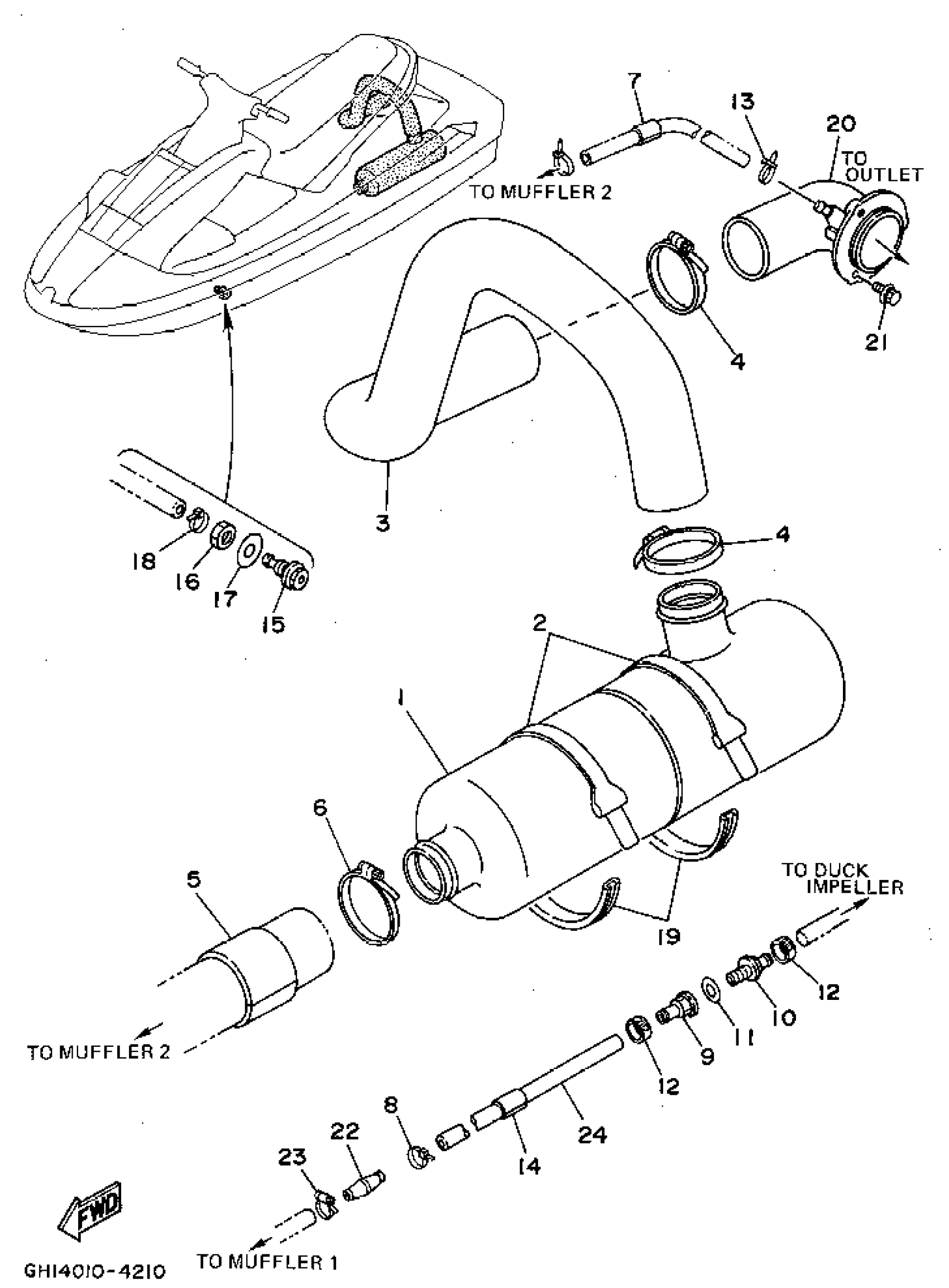

Yamaha RA700S (WAVE RAIDER) 1994 EXHAUST 2 Diagram

#

Description
Price

1

WATER LOCK COMP.

GH1-67550-03-00

Unavailable

2

BAND

FJ0-67569-00-00

Unavailable

3

HOSE

GH1-67555-00-00

Unavailable

4

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$33.99

5

PACKING, HOSE 1

GH1-67577-00-00

Unavailable

6

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$33.99

7

PACKING, HOSE 2

FJ0-67578-00-00

Unavailable

8

NYLON CLIP 1(GH1)

90601-11583-00

$8.49

9

CONNECTION, THRU-HULL 1/4

90604-80757-00

Unavailable

10

CONNECTION, THRU-HULL 1/4

90604-80758-00

Unavailable

11

GASKET

90430-13909-00

Unavailable

12

NYLON CLIP 1(GH1)

90601-11583-00

$8.49

13

CLAMP

90465-10098-00

Unavailable

14

PACKING, HOSE 2

GH1-67578-01-00

Unavailable

15

PILOT, WATER

GJ1-6753B-02-00

Unavailable

16

. NUT

95380-14700-00

Unavailable

17

WASHER, PLAIN

92990-14200-00

Unavailable

18

CLAMP

90465-10098-00

Unavailable

19

MAT 4

GH1-6759E-01-00

Unavailable

20

EXHAUST, THRU-HALL COMP.

GH1-67560-00-00

Unavailable

21

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

22

CONNECTION

6M6-51142-00-00

Unavailable

23

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

24

HOSE (L1300)

90445-14M22-00

Unavailable
