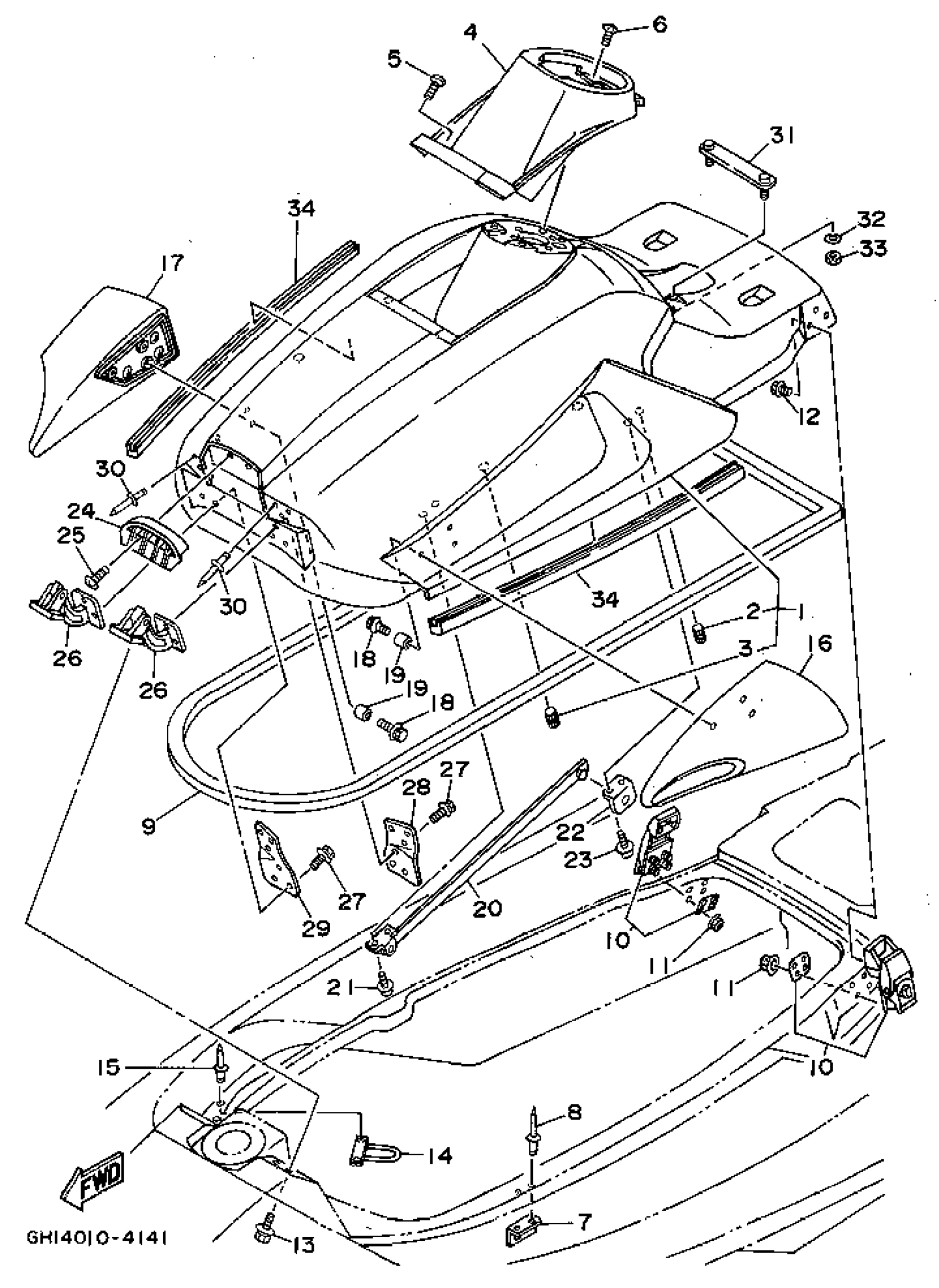

Yamaha RA700S (WAVE RAIDER) 1994 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GH1-6516A-00-P0

Unavailable

2

NUT

90179-069U4-00

Unavailable

3

. NUT

90179-08927-00

Unavailable

4

COVER, ENGINE HATCH

GH1-6516N-00-00

Unavailable

5

SCREW(GH1)

90149-05903-00

$3.28

6

SCREW

90149-05984-00

Unavailable

7

BRACKET, HATCH SUPPORT

FN8-62884-00-00

Unavailable

8

RIVET, BLIND

90267-48940-00

Unavailable

9

PACKING

GH1-62664-00-00

Unavailable

10

HATCH LOCK ASSY

FX1-62840-02-00

Unavailable

11

NUT, FLANGE

95720-05300-00

Unavailable

12

BOLT, WITH WASHER

90119-05936-00

Unavailable

13

BOLT,WITH WASHER

90119-06940-00

Unavailable

14

GUIDE, CABLE

GH1-61557-00-00

Unavailable

15

RIVET, BLIND

90267-48940-00

Unavailable

16

MIRROR (LH)

GH1-6596B-00-00

Unavailable

17

MIRROR (RH)

GH1-6596C-00-00

Unavailable

18

BOLT, HEX (MIRROR)

90119-06924-00

Unavailable

19

COLLAR

90387-06915-00

Unavailable

20

SUPPORT, HATCH

GH1-62891-01-00

Unavailable

21

SCREW, WITH WASHER

90159-06901-00

Unavailable

22

FIX, PLATE

FN8-62892-00-00

Unavailable

23

SCREW, WITH WASHER

90159-06901-00

Unavailable

24

UNIVERSAL, AIR INTAKE

GH1-62128-00-00

Unavailable

25

SCREW

90149-04902-00

Unavailable

26

HINGE, HATCH

GH1-6517G-04-00

Unavailable

27

BOLT,WITH WASHER

90119-06940-00

Unavailable

28

PLATE,HINGE (LH)

GH1-6517J-01-00

Unavailable

29

PLATE, HINGE (RH)

GH1-6517K-01-00

Unavailable

30

RIVET (EU0)

90267-48938-00

Unavailable

31

STAY, SEAT 1

GH1-6378C-00-00

Unavailable

32

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

33

NUT, SELF-LOCKING

95720-06300-00

Unavailable

34

TRIM

GH1-65162-01-00

Unavailable
