1994 Yamaha Wave Raider (RA700S) Electrical 2 Diagram

← All diagrams

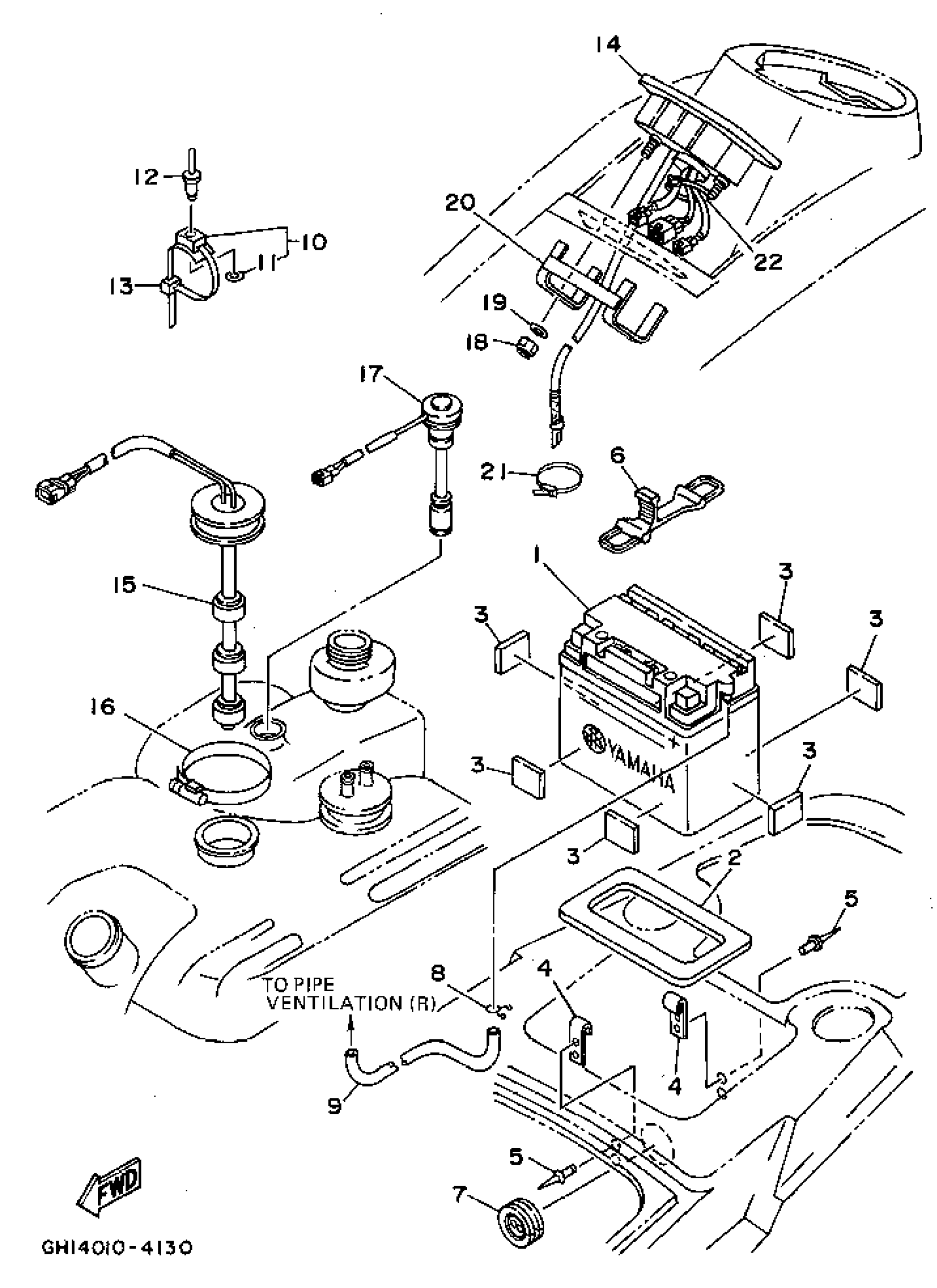

Find the part on the Electrical 2 diagram for your 1994 Yamaha Wave Raider (RA700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Raider (RA700S) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1

$180.91

In stock

2

PAD, BATTERY

F1S-U8221-00-00

1

$3.00

In stock

3

PAD, BATTERY 2

EU0-68221-30-00

1

$46.99

In stock

4

HOOK A

GA7-65772-00-00

1

$9.22

In stock

5

RIVET, BLIND

90267-48934-00

1
Out of stock

6

BAND, BATTERY

GA7-68218-00-00

1

$41.99

In stock

7

GROMMET

FJ0-68222-01-00

1
Out of stock

8

CLIP

90467-08M10-00

1
Out of stock

9

HOSE, AIR VENT 4

FJ0-67856-30-00

1
Out of stock

10

CLAMP COMP (EU0)

90600-91736-00

1

$6.68

In stock

11

. WASHER, PLAIN

90201-05925-00

1
Out of stock

12

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

13

BAND (EU0)

90601-20009-00

1

$6.46

In stock

14

METER ASSEMBLY

GH1-6820A-00-00

1
Out of stock

15

SENDER, FUEL

GH1-6824B-00-00

1
Out of stock

16

BAND, HOSE 62

90601-162U5-00

1

$6.92

In stock

17

SENDER, OIL

GH1-6824C-00-00

1
Out of stock

18

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

19

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

20

BRACKET, METER

GD0-68238-00-00

1
Out of stock

21

NYLON CLIP 1(GD0)

90601-20016-00

—

$9.17

In stock

22

BAND (EU0)

90601-20009-00

1

$6.46

In stock
