1994 Yamaha Wave Raider (RA700S) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1994 Yamaha Wave Raider (RA700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

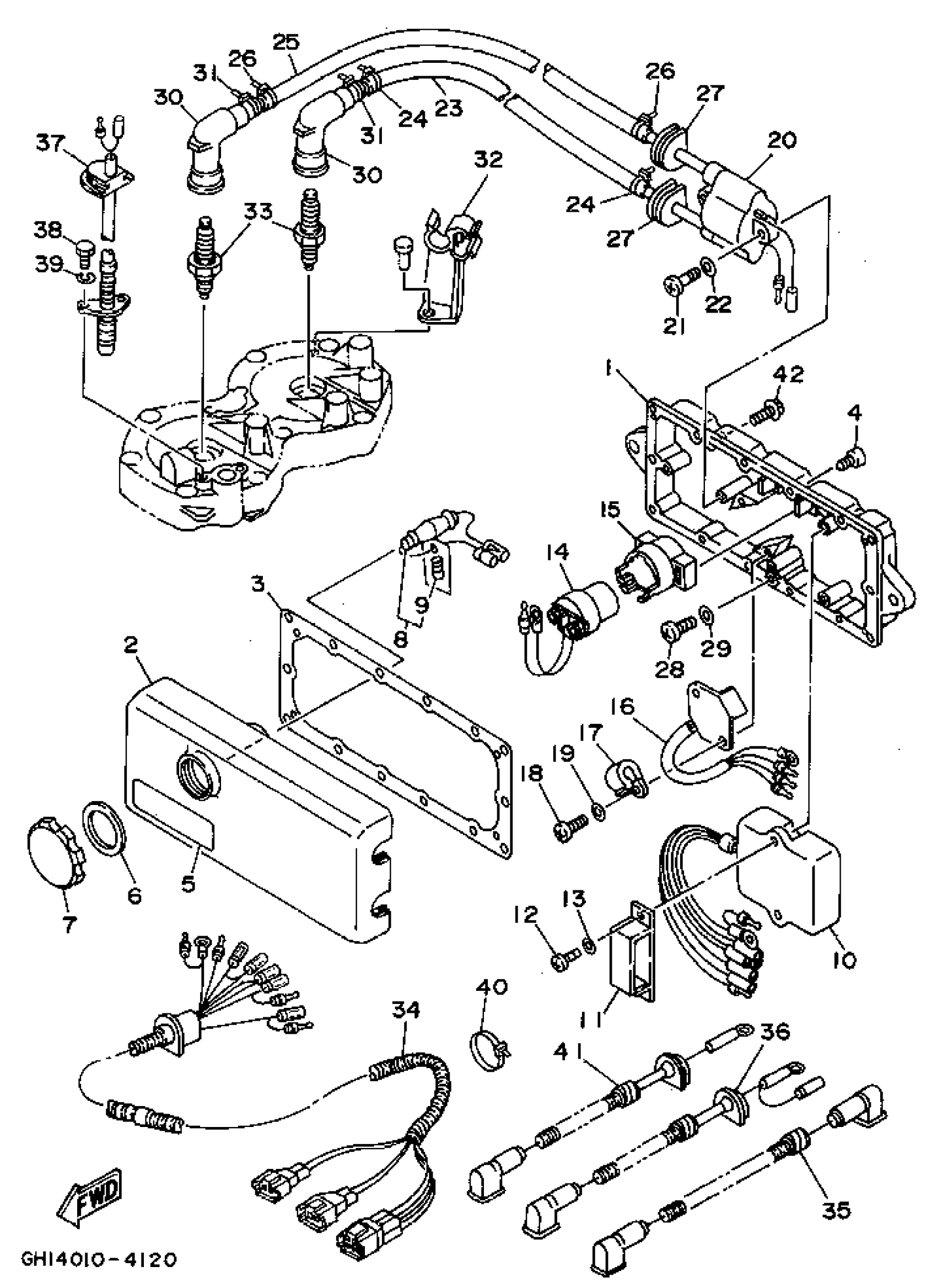

1994 Yamaha Wave Raider (RA700S) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

62L-8552A-00-8P

1
Out of stock

2

COVER, CASE

6M6-8552E-01-00

1
Out of stock

3

GASKET, TERMINAL

6M6-81921-00-00

1
Out of stock

4

SCREW, TAPPING(65J)

97780-60625-00

1
Out of stock

5

MARK 3

6R7-83623-40-00

1
Out of stock

6

GASKET

6M6-81844-00-00

1
Out of stock

7

CAP

6M6-8132W-00-00

1
Out of stock

8

FUSE HOLDER ASSY

6K8-82150-02-00

1
Out of stock

9

FUSE (10A)

1E6-82151-00-00

1
Out of stock

10

C.D.I. UNIT ASSY

62T-85540-04-00

1
Out of stock

11

CLAMP

90464-06M29-00

1
Out of stock

12

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

14

STARTER RELAY ASSY

6G1-81941-10-00

1
Out of stock

15

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

16

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

1
Out of stock

17

CLAMP

90465-08028-00

1
Out of stock

18

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

19

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

20

IGNITION COIL ASSY

62E-85570-00-00

1
Out of stock

20

IGNITION COIL ASSY

62E-85570-11-00

1
Out of stock

21

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

22

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

23

TUBE, CORD 2

6R8-82352-00-00

1
Out of stock

24

CLAMP

90465-10098-00

1
Out of stock

25

TUBE, CORD 2

6R8-82352-00-00

1
Out of stock

26

CLAMP

90465-10098-00

1
Out of stock

27

GROMMET

90480-06M43-00

1
Out of stock

28

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

29

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

30

. CAP, PLUG

62E-82371-10-00

1
Out of stock

30

PLUG CAP ASSY

63M-82370-00-00

1
Out of stock

31

CLAMP

90465-10098-00

1
Out of stock

32

CLAMP, CORD

62T-82361-00-00

1
Out of stock

33

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

1
Out of stock

34

EXTENSION, WIRE LEAD

62T-82553-00-00

1
Out of stock

35

WIRE,LEAD

62T-82117-01-00

1
Out of stock

36

WIRE, LEAD

62T-82117-11-00

1
Out of stock

37

THERMOSWITCH ASSY

62T-82560-01-00

1
Out of stock

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

39

WASHER, SPRING

92995-06100-00

1
Out of stock

40

CLAMP

90465-10098-00

1
Out of stock

41

WIRE, LEAD

6M6-82117-21-00

1
Out of stock

42

BOLT, WITH WASHER

90119-08903-00

1
Out of stock
