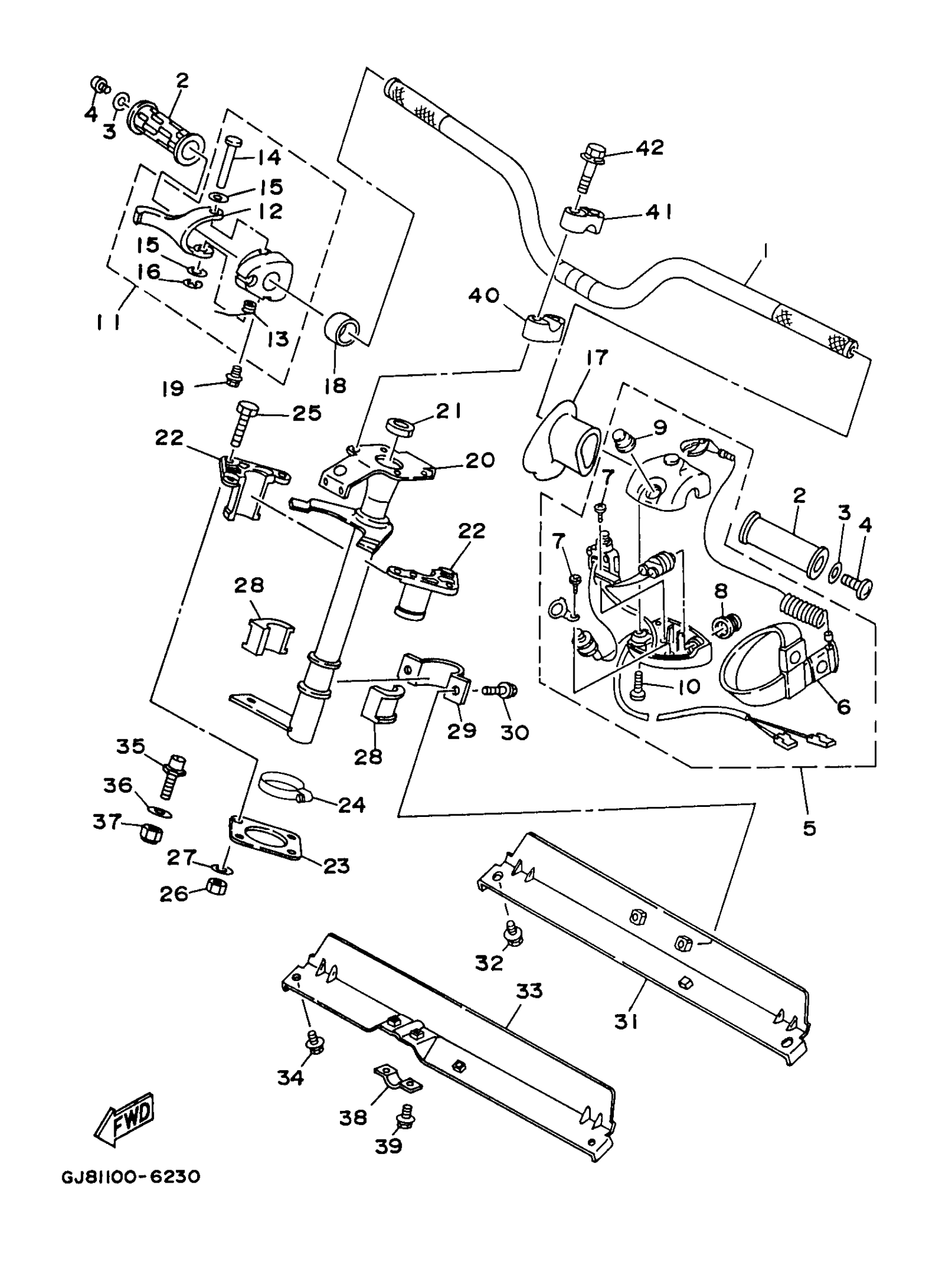

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 STEERING 1 Diagram

#

Description
Price

1

HANDLE

GJ1-U1552-03-00

Unavailable

2

GRIP, HANDLE 1

EW2-61553-00-00

$14.81

3

WASHER, PLATE

90201-05800-00

$0.65

4

SCREW,TRASS HEAD (FJ0)

90149-05959-00

$5.23

5

SWITCH BOX ASSY

GJ1-68310-01-00

Unavailable

6

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

7

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

8

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

9

. START BUTTON COMP

FK7-68313-02-00

$11.31

10

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

11

THROTTLE LEVER ASSY

EW2-67250-02-00

$104.53

12

. LEVER, THROTTLE

EW2-67255-00-00

$21.48

13

. SPRING

EW2-67256-00-00

$6.36

14

. SHAFT

EW2-67257-01-00

$13.99

15

WASHER, PLAIN (646)

92990-05600-00

Unavailable

16

CIRCLIP (EU0)

99080-04600-00

$1.70

17

SPACER

GJ3-6143G-00-00

Unavailable

18

SPACER(1LX)

90560-22281-00

Unavailable

19

SCREW, WITH WASHER

90159-05900-00

$2.17

20

COLUMN, STEERING

GP2-61541-00-00

Unavailable

21

PACKING, STEERING COLUMN

GH1-61469-00-00

Unavailable

22

BEARING, COLUMN

GH1-6141B-00-00

$20.37

23

SEAL, RUBBER

GH1-6143C-30-00

Unavailable

24

BAND, HOSE 42

90601-142U6-00

Unavailable

25

BOLT(JF7)

97080-06030-00

Unavailable

26

NUT, SELF-LOCKING

95720-06300-00

$1.82

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

BEARING, STEERING

GH1-6141D-01-00

$17.40

29

JOINT, BEARING

EU0-61588-00-00

Unavailable

30

BOLT, WITH WASHER

90119-08903-00

Unavailable

31

BRACKET, BEARING

GH1-61433-00-00

Unavailable

32

BOLT, WITH WASHER

90119-08903-00

Unavailable

33

BRACKET, STOPPER CABLE

GH1-61467-01-00

Unavailable

34

BOLT, WITH WASHER

90119-08903-00

Unavailable

35

PIN, STOPPER

FN8-6131B-00-00

$77.26

36

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

37

NUT, NYLON (FN8)

95720-10300-00

Unavailable

38

STOPPER, CABLE

GH1-61468-01-00

$8.32

39

BOLT, WITH WASHER

90119-06908-00

$2.57

40

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

41

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

42

BOLT, WITH WASHER

90119-08925-00

Unavailable
