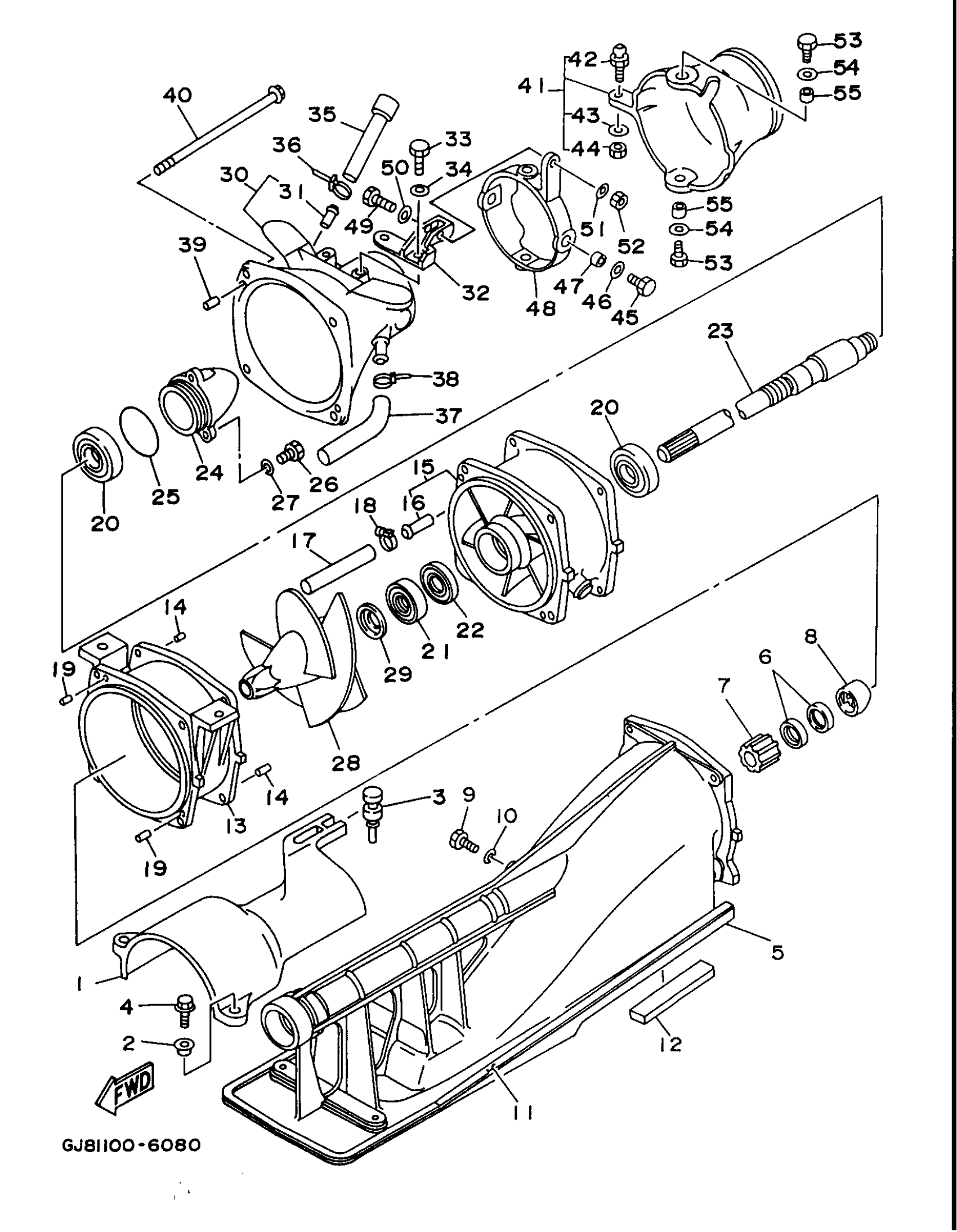

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 JET UNIT 1 Diagram
#
1
COVER
62T-51381-00-00
Unavailable
2
COLLAR
90387-06M60-00
Unavailable
3
GROMMET(6R7)
90480-06M46-00
$12.49
4
BOLT, HEXAGON W/W DEEP RECESS
97E95-06525-00
Unavailable
5
DUCT, INTAKE
62T-51311-03-94
Unavailable
6
OIL SEAL(6R8)
93102-18M35-00
Unavailable
7
BUSHING, DRIVE SHAFT
6R8-45318-00-00
Unavailable
8
SPACER
6R8-51348-02-94
Unavailable
9
BOLT
90101-06M27-00
Unavailable
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
. FELT, PACKING
6R8-51367-01-00
Unavailable
12
. FELT, PACKING
63N-51368-00-00
Unavailable
13
HOUSING, IMPELLER
6R8-51312-03-94
Unavailable
14
PIN, DOWEL (614)
93606-12019-00
$4.24
15
DUCT, IMPELLER
62T-51315-01-00
Unavailable
16
. NIPPLE
6K8-51129-00-00
Unavailable
17
HOSE
90445-14M17-00
Unavailable
18
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
19
PIN, DOWEL (614)
93606-12019-00
$4.24
20
BEARING (6K8)
93306-205U1-00
Unavailable
21
OIL SEAL(6R7)
93102-25M34-00
Unavailable
22
OIL SEAL(6R7)
93101-25M50-00
Unavailable
23
SHAFT, DRIVE
6R8-45511-00-00
Unavailable
24
CAP
62T-51326-00-00
Unavailable
25
. O-RING
93210-46M16-00
Unavailable
26
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
27
WASHER, PLAIN (646)
92990-06600-00
$2.80
28
IMPELLER
6R7-51321-00-8S
Unavailable
29
SPACER
62T-51348-00-00
Unavailable
30
NOZZLE
64R-51318-01-00
Unavailable
31
. NIPPLE
6K8-51129-00-00
Unavailable
32
STAY
64R-51387-01-94
Unavailable
33
BOLT(7U8)
97080-06020-00
Unavailable
34
WASHER, PLAIN (646)
92990-06600-00
$2.80
35
PIPE 1
62T-51673-00-00
Unavailable
36
CLAMP
90465-10098-00
Unavailable
37
HOSE (L380)
90445-14M25-00
Unavailable
38
CLAMP
90465-10098-00
Unavailable
39
PIN, DOWEL (614)
93606-12019-00
$4.24
40
BOLT(6R8)
90101-06M04-00
Unavailable
41
NOZZLE, DEFLECTOR
62T-51313-02-00
Unavailable
42
. BOLT, JOINT
6R7-42316-00-00
Unavailable
43
WASHER, PLATE
90201-06M02-00
Unavailable
44
NUT(650)
95380-06700-00
Unavailable
45
BOLT, HEXAGON
97095-08018-00
Unavailable
46
.. WASHER, PLATE
92990-08600-00
Unavailable
47
COLLAR
90387-08M08-00
Unavailable
48
RING,TRIM
62T-51190-01-00
Unavailable
49
BOLT(J52)
97080-06035-00
Unavailable
50
WASHER, PLAIN (646)
92990-06600-00
$2.80
51
WASHER, PLATE
90201-06M31-00
Unavailable
52
NUT(650)
95380-06700-00
Unavailable
53
BOLT, HEXAGON
97095-08020-00
Unavailable
54
.. WASHER, PLATE
92990-08600-00
Unavailable
55
COLLAR(6R7)
90387-08M06-00
Unavailable
