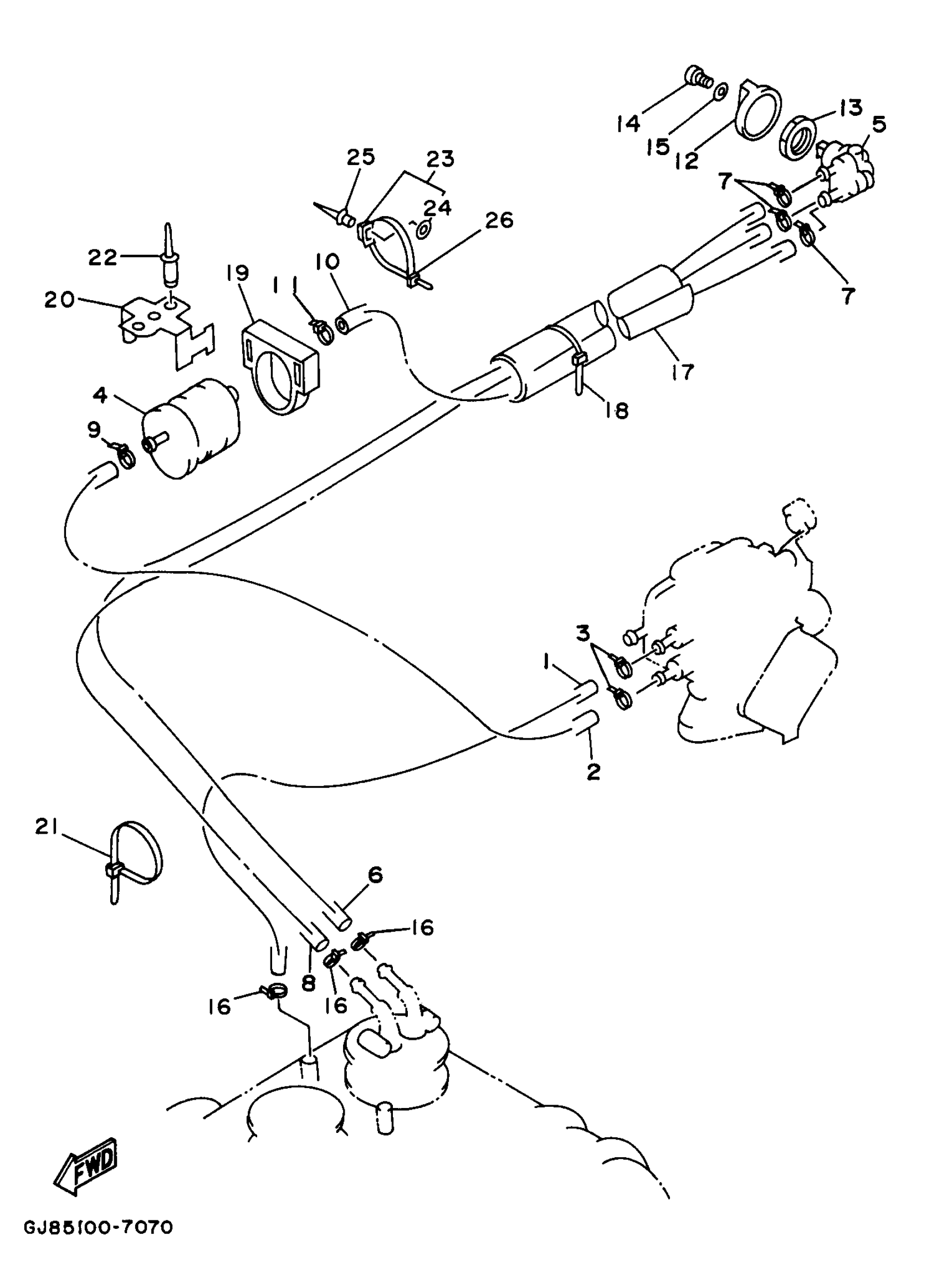

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 FUEL Diagram

#

Description

Price

1

HOSE (L1040)

90445-10MA9-00

$68.99

2

HOSE (L590)

90445-10020-00

Unavailable

3

CLAMP

90465-10098-00

Unavailable

4

FILTER ASSY

6K8-24560-21-00

Unavailable

5

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

6

HOSE (L1700)

90445-10M87-00

Unavailable

7

CLAMP

90465-10098-00

Unavailable

8

HOSE (L1700)

90445-10M87-00

Unavailable

9

CLAMP

90465-10098-00

Unavailable

10

HOSE (L1700)

90445-10M87-00

Unavailable

11

CLAMP

90465-10098-00

Unavailable

12

LEVER, COCK

6K8-24524-10-00

Unavailable

13

NUT

90170-22M11-00

Unavailable

14

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

CLAMP

90465-10098-00

Unavailable

17

PROTECTOR, HOSE

GJ1-U773J-00-00

Unavailable

18

BAND

90601-20024-00

Unavailable

19

HOLDER

EU0-67817-00-00

Unavailable

20

BRACKET, FUEL FILTER

FN8-67816-00-00

Unavailable

21

BAND

90601-200U1-00

Unavailable

22

RIVET (EU0)

90267-48938-00

Unavailable

23

CLAMP COMP (EU0)

90600-91736-00

Unavailable

24

. WASHER, PLAIN

90201-05925-00

Unavailable

25

RIVET, BLIND

90267-48802-00

Unavailable

26

BAND (EU0)

90601-20009-00

Unavailable
