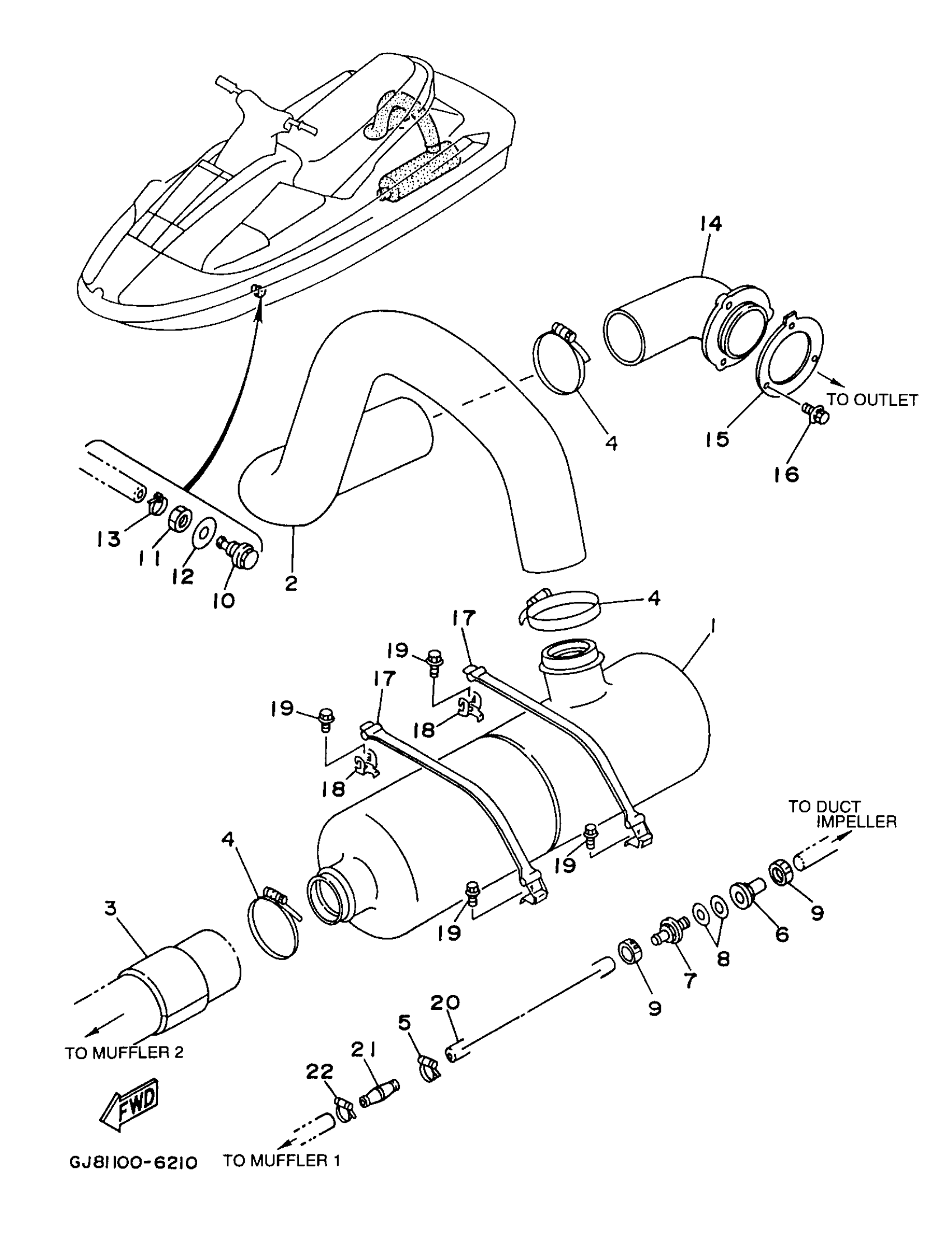

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 EXHAUST 2 Diagram

#

Description

Price

1

WATER LOCK

GH1-U7550-00-00

Unavailable

2

HOSE

GH6-U7555-00-00

Unavailable

3

PACKING, HOSE 1

GH6-67577-01-00

Unavailable

4

BAND, HOSE 70

90601-170UG-00

Unavailable

5

BAND, HOSE 11

90601-110UC-00

Unavailable

6

THROUGH HULL CONNECTION 3/8-12

90604-80795-00

Unavailable

7

THROUGH HULL CONNECTION 3/8-12

90604-80796-00

Unavailable

8

GASKET(GJ1)

90430-16910-00

Unavailable

9

BAND, HOSE 18

90601-118UF-00

Unavailable

10

PILOT, WATER

GJ1-6753B-02-00

Unavailable

11

. NUT

95380-14700-00

Unavailable

12

WASHER, PLAIN

92990-14200-00

$5.49

13

CLAMP

90465-10098-00

Unavailable

14

THRU-HULL, EXHAUST

GA9-67565-00-00

Unavailable

15

PACKING

GA9-U7525-00-00

Unavailable

16

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

17

HOOK C

GJ1-U7570-00-00

Unavailable

18

HOOK A

EW2-65772-00-00

Unavailable

19

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

20

HOSE (L1300)

90445-14M22-00

Unavailable

21

CONNECTION

6M6-51142-00-00

Unavailable

22

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable
