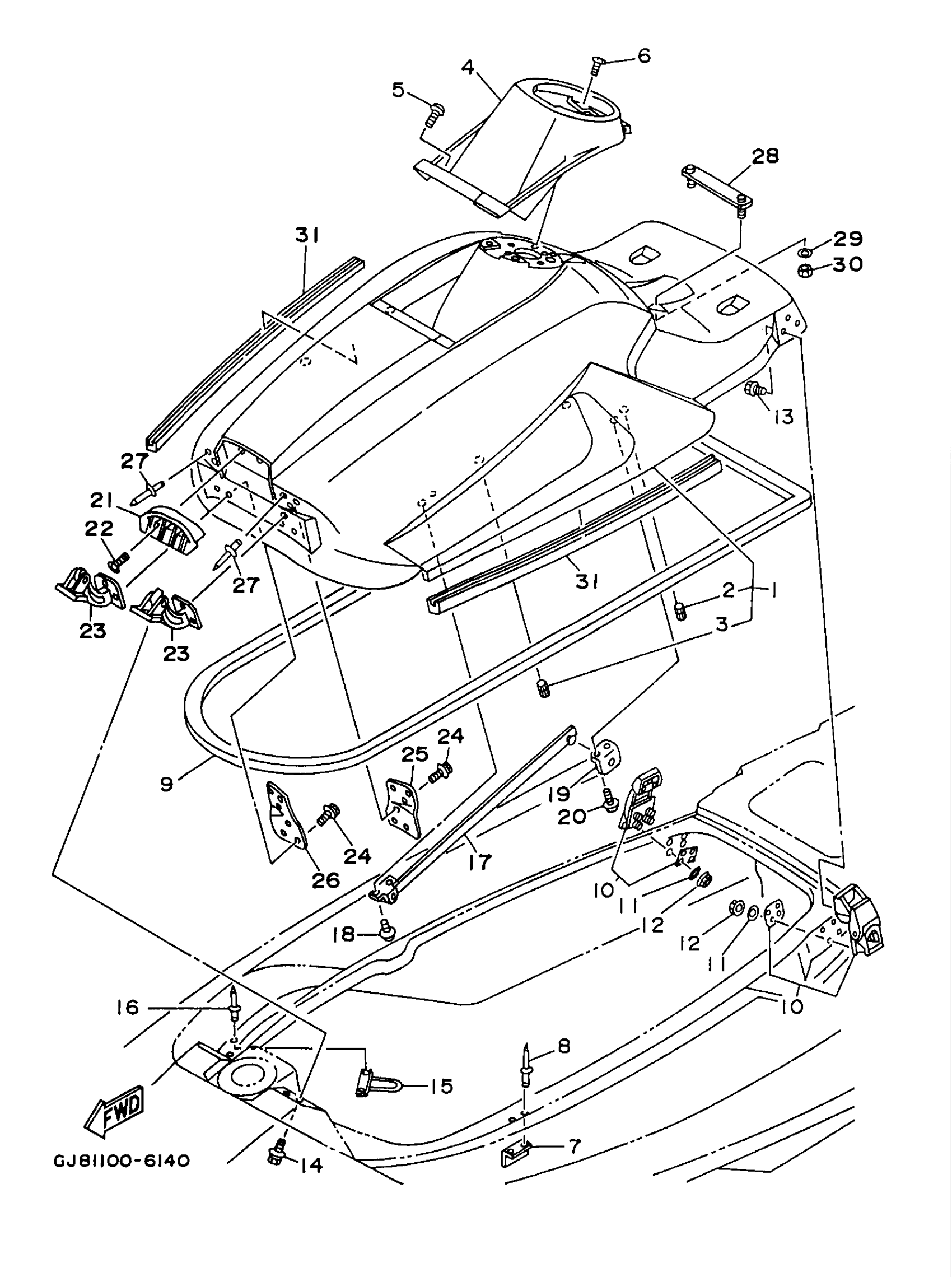

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GJ8-U516A-00-P0

Unavailable

2

NUT

90179-069U4-00

Unavailable

3

. NUT

90179-08927-00

Unavailable

4

COVER, ENGINE HATCH

GH1-6516N-30-00

Unavailable

5

SCREW(GH1)

90149-05903-00

$3.28

6

SCREW

90149-05984-00

Unavailable

7

BRACKET, HATCH SUPPORT

FN8-62884-00-00

Unavailable

8

RIVET, BLIND

90267-489U2-00

Unavailable

9

PACKING

GJ1-U2664-00-00

Unavailable

10

HATCH LOCK ASSY

GJ1-62840-01-00

Unavailable

11

WASHER, PLAIN (646)

92990-05600-00

$0.80

12

NUT, FLANGE

95720-05300-00

Unavailable

13

BOLT, WITH WASHER

90119-05935-00

Unavailable

14

BOLT,WITH WASHER

90119-06940-00

Unavailable

15

GUIDE, CABLE

GH1-61557-00-00

Unavailable

16

RIVET, BLIND

90267-489U2-00

Unavailable

17

SUPPORT, HATCH

GH1-62891-01-00

Unavailable

18

SCREW, WITH WASHER

90159-06901-00

Unavailable

19

FIX, PLATE

FN8-62892-00-00

Unavailable

20

SCREW, WITH WASHER

90159-06901-00

Unavailable

21

UNIVERSAL, AIR INTAKE

GH1-62128-30-00

Unavailable

22

SCREW

90149-04902-00

Unavailable

23

HINGE, HATCH

GH1-6517G-04-00

Unavailable

24

BOLT,WITH WASHER

90119-06940-00

Unavailable

25

PLATE,HINGE (LH)

GH1-6517J-01-00

Unavailable

26

PLATE, HINGE (RH)

GH1-6517K-01-00

Unavailable

27

RIVET (EU0)

90267-48938-00

Unavailable

28

STAY, SEAT 1

GH1-6378C-00-00

Unavailable

29

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

30

NUT, SELF-LOCKING

95720-06300-00

Unavailable

31

TRIM

GH1-65162-01-00

Unavailable
