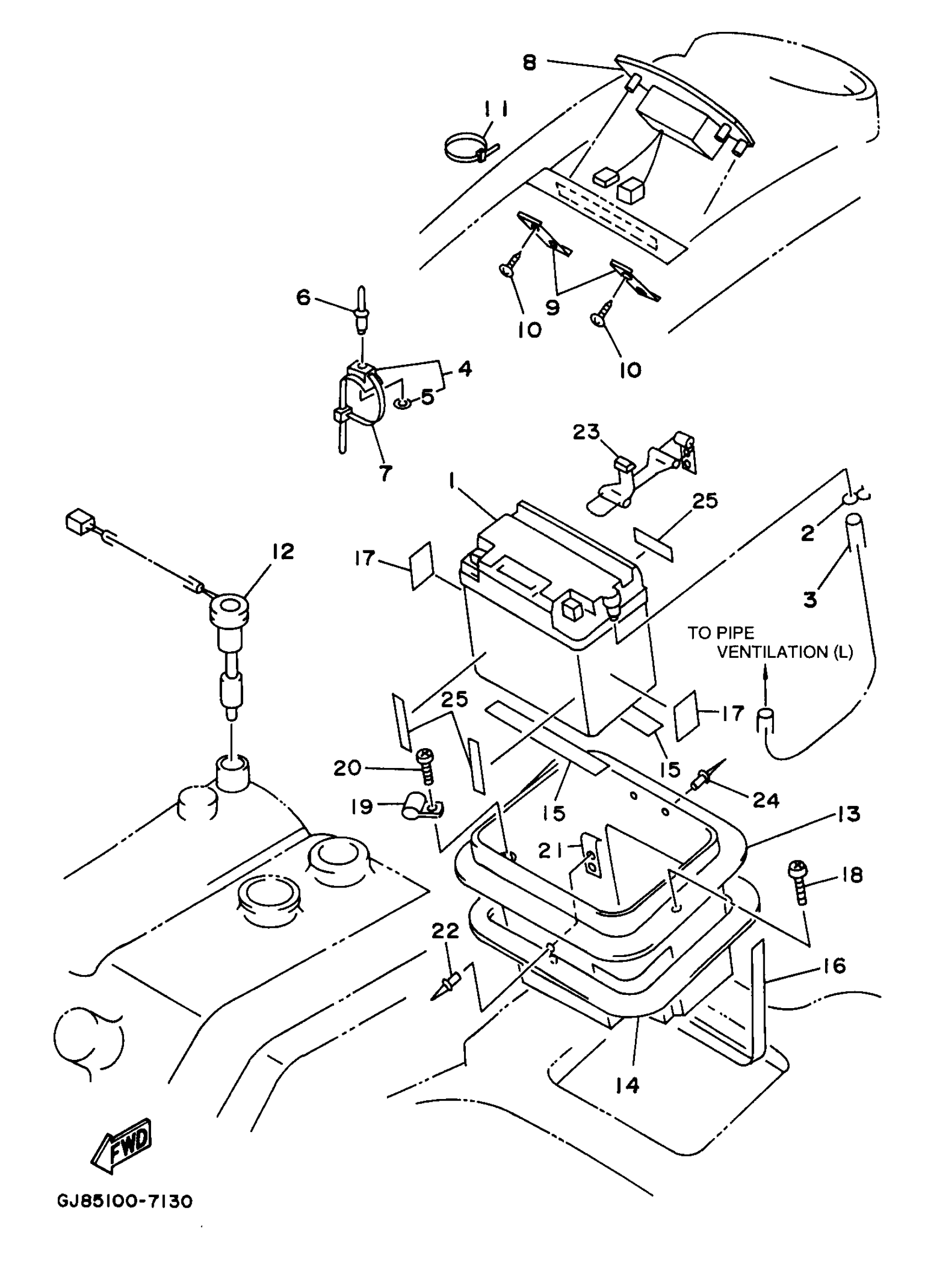

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 ELECTRICAL 2 Diagram

#

Description

Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

2

CLIP

90467-08M10-00

Unavailable

3

HOSE, AIRVENT 3

GE1-U7856-30-00

Unavailable

4

CLAMP COMP (EU0)

90600-91736-00

$8.49

5

. WASHER, PLAIN

90201-05925-00

Unavailable

6

RIVET, BLIND

90267-48802-00

Unavailable

7

BAND (EU0)

90601-20009-00

Unavailable

8

METER, ASSEMBLY

GJ8-6820A-00-00

Unavailable

9

BRACKET, METER

GJ8-68238-00-00

Unavailable

10

SCREW, TAPPING

97780-50620-00

Unavailable

11

BAND (EU0)

90601-20009-00

Unavailable

12

SENDER,OIL

GJ8-6824C-01-00

Unavailable

13

BATTERY CASE COMP.

GP2-U8211-00-00

Unavailable

14

PACKING 3

GJ1-6266B-00-00

Unavailable

15

PAD, BATTERY 1

FJ0-68221-00-00

Unavailable

16

PAD, BATTERY 2

FJ0-68221-30-00

Unavailable

17

PAD, BATTERY

GJ1-U8221-00-00

Unavailable

18

SCREW

90149-05984-00

Unavailable

19

CLAMP

90600-913U2-00

Unavailable

20

SCREW, TAPPING

97780-40116-00

Unavailable

21

HOOK A

GA7-65772-00-00

Unavailable

22

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

23

HOOK COMP

GJ1-66607-00-00

Unavailable

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

25

MAT 3

EU0-67593-40-00

Unavailable
