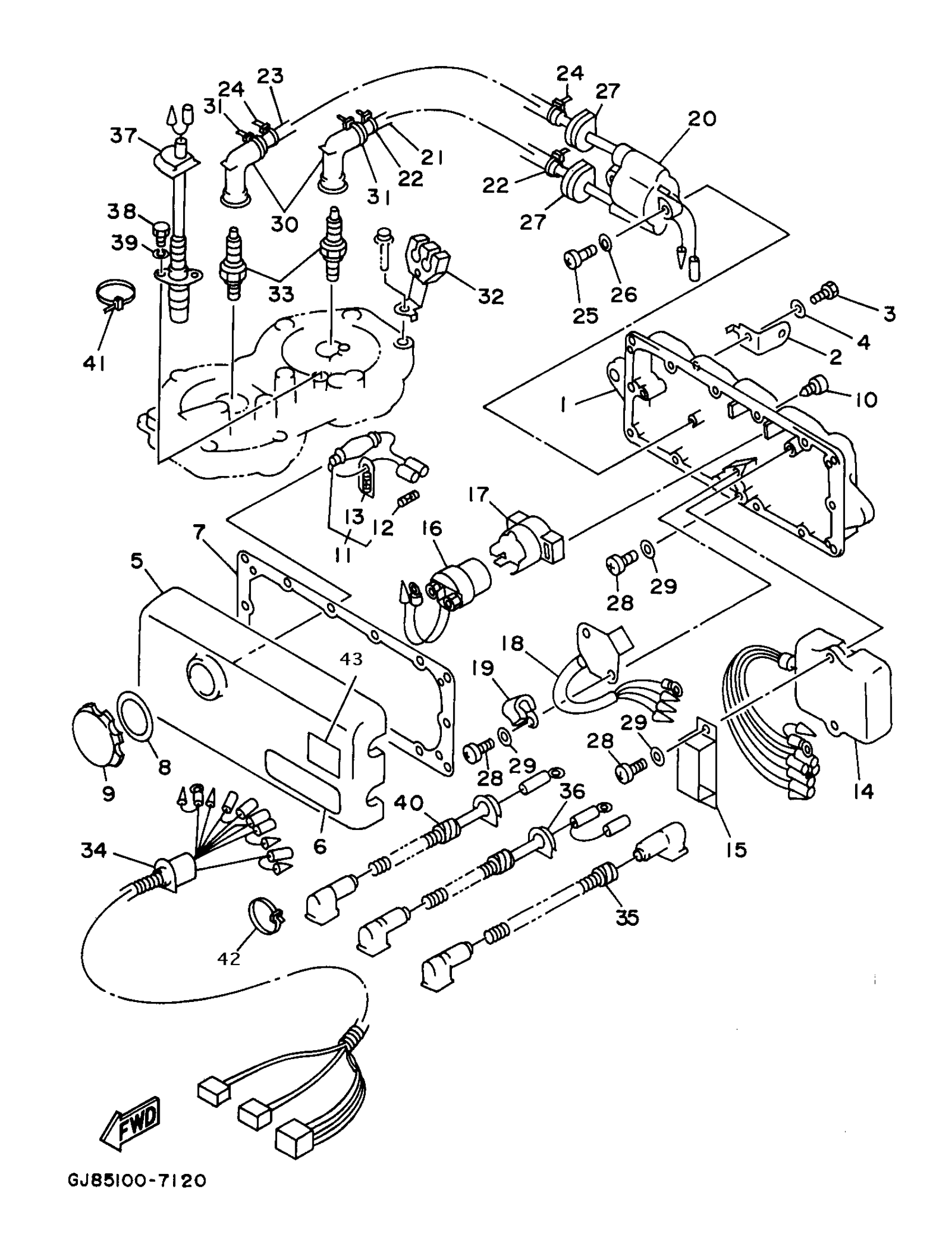

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

62L-8552A-00-8P

Unavailable

2

BRACKET

64X-85542-00-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-08016-00

Unavailable

4

.. WASHER, PLATE

92990-08600-00

Unavailable

5

COVER, CASE

6M6-8552E-01-00

Unavailable

6

MARK 3

6R7-83623-40-00

Unavailable

7

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

8

GASKET

6M6-81844-00-00

Unavailable

9

CAP

6M6-8132W-00-00

Unavailable

10

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

11

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

12

FUSE (10A)

1E6-82151-00-00

$7.99

13

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

14

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

15

CLAMP

90464-06M29-00

Unavailable

16

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

17

HOLDER, RELAY

6M6-81952-01-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

19

CLAMP

90465-08028-00

Unavailable

20

IGNITION COIL ASSY

62E-85570-00-00

Unavailable

21

TUBE, CORD 2

6R8-82352-00-00

Unavailable

22

CLAMP

90465-10098-00

Unavailable

23

TUBE, CORD 2

6R8-82352-00-00

Unavailable

24

CLAMP

90465-10098-00

Unavailable

25

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

GROMMET

90480-06M43-00

Unavailable

28

SCREW, PAN HEAD

98580-06016-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

31

CLAMP

90465-10098-00

Unavailable

32

CLAMP, CORD

6R8-82361-00-00

Unavailable

33

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

34

EXTENSION, WIRE LEAD

62T-82553-01-00

Unavailable

35

WIRE,LEAD

62T-82117-01-00

Unavailable

36

WIRE, LEAD

62T-82117-11-00

Unavailable

37

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

WIRE, LEAD

6M6-82117-21-00

Unavailable

41

CLAMP (6E5)

90465-13M11-00

Unavailable

42

CLAMP (6E5)

90465-13M11-00

Unavailable

43

MARK,EC

4GB-2155A-00-00

Unavailable
