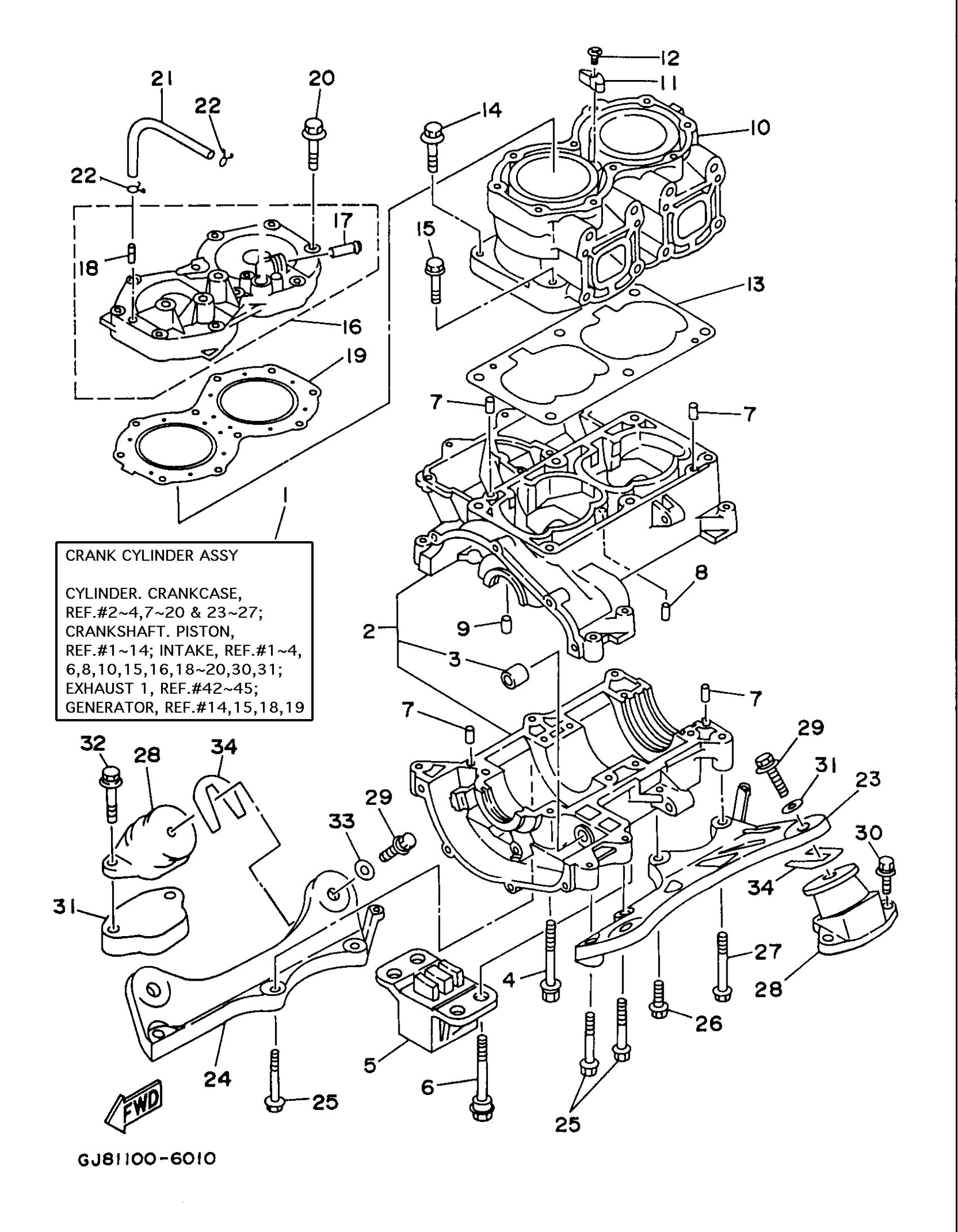

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

61X-W0090-03-8S

Unavailable

2

CRANKCASE ASSY

61X-15100-00-8S

Unavailable

3

. BUSH, SOLID

90380-12M29-00

Unavailable

4

BOLT, WITH WASHER

90119-08M55-00

Unavailable

5

STOPPER, UPPER MOUNT

62T-44532-10-00

Unavailable

6

BOLT

90109-08M56-00

Unavailable

7

PIN, DOWEL (614)

93606-12019-00

$4.24

8

PIN (2H7)

93603-10049-00

Unavailable

9

PIN, DOWEL (8H1)

93604-07141-00

$2.17

10

CYLINDER 1

61X-11311-01-8S

Unavailable

11

ANODE

6E5-11325-00-00

Unavailable

12

SCREW, FLAT HEAD(GA5)

98780-04014-00

$3.29

13

GASKET, CYLINDER

6M6-11351-A2-00

Unavailable

14

BOLT, WITH WASHER

90119-10M56-00

Unavailable

15

BOLT (6F5)

90119-10M07-00

$4.82

16

HEAD, CYLINDER 1

61X-11111-09-8S

Unavailable

17

. NIPPLE

6K8-51129-00-00

Unavailable

18

. PIPE, JOINT

6R7-14485-00-00

Unavailable

19

GASKET, CYLINDER HEAD 1

61X-11181-A1-00

Unavailable

20

BOLT, WITH WASHER

90119-08019-00

Unavailable

21

HOSE (L200)

90445-07M19-00

Unavailable

22

CLIP

90467-06016-00

Unavailable

23

BRACKET, FRONT UPPER 1

6R7-21415-01-00

Unavailable

24

BRACKET, REAR UPPER 1

6R7-21425-01-00

Unavailable

25

BOLT, WITH WASHER

90119-10M23-00

Unavailable

26

BOLT, WITH WASHER

90119-10M00-00

Unavailable

27

BOLT, WITH WASHER

90119-10M03-00

Unavailable

28

MOUNT RUBBER

6M6-44517-A2-94

Unavailable

29

BOLT, WITH WASHER

90119-08904-00

Unavailable

30

BOLT, WITH WASHER

90119-08038-00

Unavailable

31

SPACER, ENGINE MOUNT

GJ1-6721B-00-00

Unavailable

32

BOLT, WITH WASHER

90119-089U1-00

Unavailable

33

PLATE

EU0-67324-00-00

Unavailable

34

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

34

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

34

SHIM (T=0.3)

EU0-67354-B0-00

Unavailable

34

SHIM (T=0.3)

EU0-67354-B0-00

Unavailable

34

SHIM (T=0.5)

EU0-67354-C0-00

Unavailable

34

SHIM (T=0.5)

EU0-67354-C0-00

Unavailable

34

SHIM (T=1.0)

EU0-67354-D0-00

Unavailable

34

SHIM (T=1.0)

EU0-67354-D0-00

Unavailable

34

SHIM (T=2.0)

EU0-67354-E0-00

Unavailable

34

SHIM (T=2.0)

EU0-67354-E0-00

Unavailable
