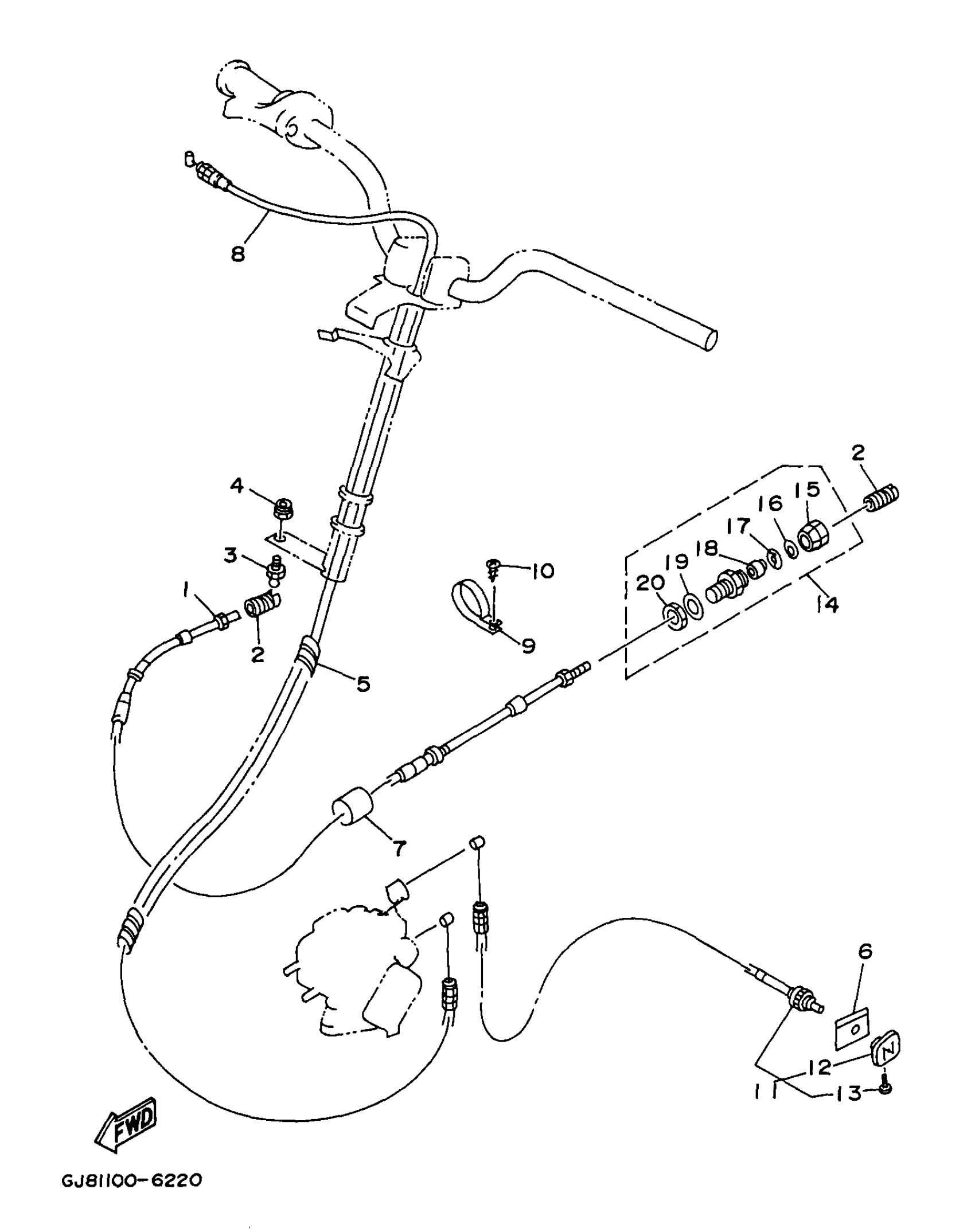

Yamaha RA700BV (WAVE RAIDER 700) GJ85 1997 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

GH6-U1481-00-00

Unavailable

2

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

3

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

4

NUT, SELF-LOCKING

95720-06300-00

$1.82

5

SPIRAP 11

90699-36U01-00

Unavailable

6

PLATE,CHOKE

GJ1-6824D-01-00

$13.99

7

PACKING, HOSE 2

GJ1-67578-20-00

$8.32

8

CABLE, THROTTLE 1

EU0-U7252-01-00

$120.63

9

CLIP, NYLON 18

90600-918U3-00

Unavailable

10

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

11

CABLE, CHOKE

FN8-U7242-02-00

Unavailable

12

KNOB, CHOKE

GP7-U724C-00-00

Unavailable

13

SCREW, KNOB

GP7-U724D-00-00

Unavailable

14

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

15

. CAP

EU0-62694-00-00

$10.74

16

. WASHER 30

EU0-61446-00-00

$4.55

17

. STOPPER

EU0-61486-00-00

$6.82

18

. SEAL, PIPE 30

EU0-61435-00-00

$10.99

19

. PACKING (C)

EU0-61438-00-00

$8.32

20

. NUT, DRAIN 1

EU0-62241-30-00

$10.49
