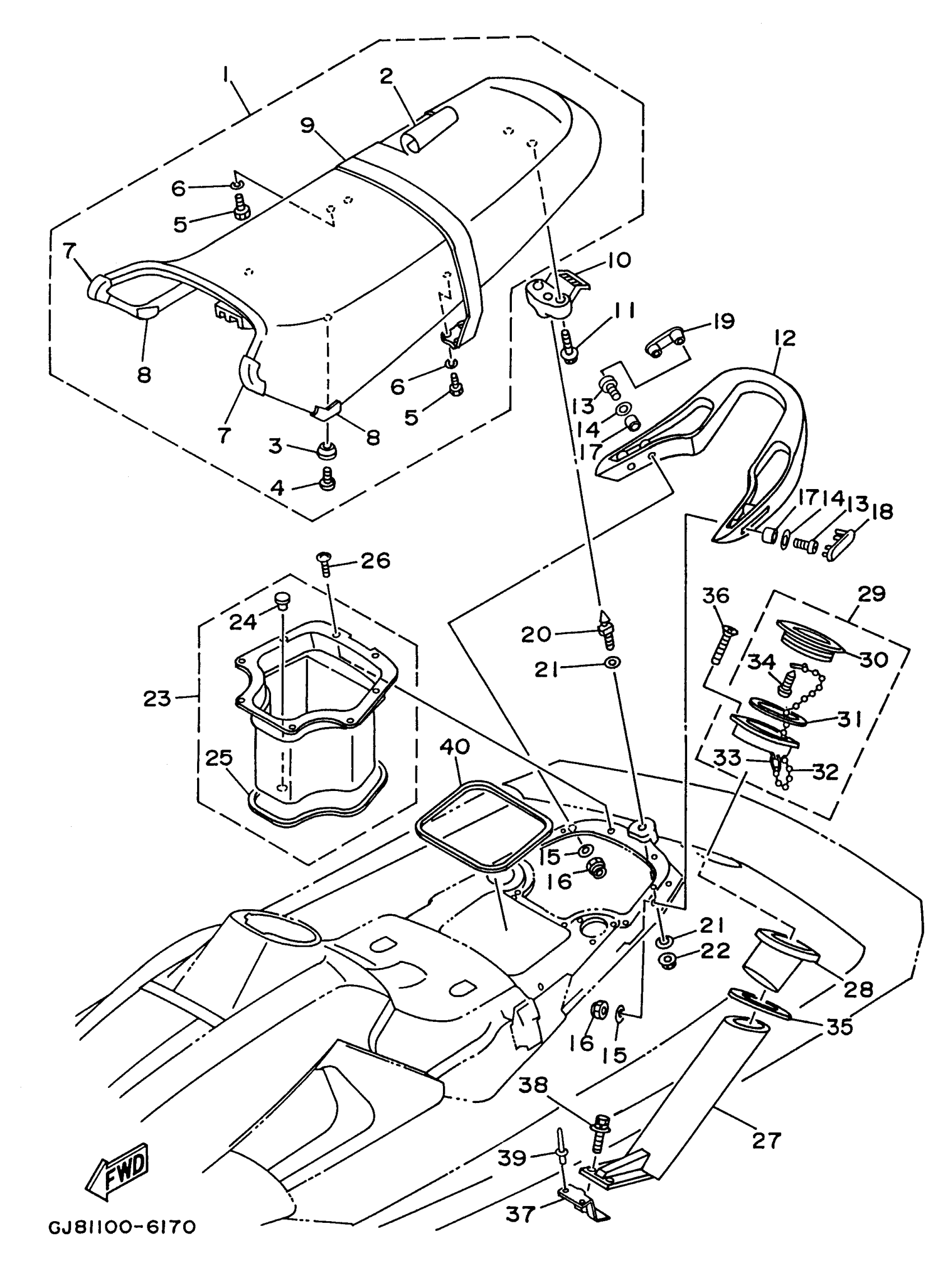

Yamaha RA700BU (WAVE RAIDER 700) 1996 SEAT UNDER LOCKER 1 Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

GJ1-U371A-10-00

Unavailable

2

. COVER, SEAT 1

GJ1-U371B-10-00

Unavailable

3

. STOPPER, SEAT

GH1-63729-00-00

Unavailable

4

. SCREW, WITH WASHER

97980-06116-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

6

WASHER, SPRING

92995-06100-00

$2.95

7

. PAD, SEAT 1

GJ1-U375A-10-00

Unavailable

8

. PAD, SEAT 2

GJ1-U375B-20-00

Unavailable

9

. BAND, SEAT COMP

GJ1-U373D-10-00

Unavailable

10

SEAT LOCK ASSY

GH1-63850-03-00

Unavailable

11

BOLT, WITH WASHER

90119-06914-00

$2.73

12

GRIP, HAND

GH1-6271B-20-00

$262.11

13

SCREW, PAN HEAD(6B0)

97885-06025-00

$4.79

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

15

WASHER, PLATE

90201-06020-00

$5.86

16

NUT, SELF-LOCKING

95720-06300-00

$1.82

17

COLLAR

90387-06914-00

Unavailable

18

CAP, GRIP HAND (L.H)

GH1-6271C-20-00

Unavailable

19

CAP, GRIP HAND (R.H)

GH1-6271D-20-00

$19.68

20

PIN

GH1-63774-01-00

$22.71

21

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

22

NUT, NYLON (FN8)

95720-10300-00

Unavailable

23

UNDER LOCKER 2

GJ1-U4742-00-00

Unavailable

24

PLUG(EU0)

90605-50201-00

Unavailable

25

. PACKING 3

GH1-6266B-00-00

Unavailable

26

SCREW

90149-04943-00

Unavailable

27

BOX, FIRE EXTINGUISHER

GA7-65983-00-00

Unavailable

28

GROMMET

GA7-65984-00-00

$101.50

29

INSPECTION CVR ASY

EU0-62720-31-00

Unavailable

30

COVER, INSPECTION

EU0-62721-31-00

Unavailable

31

. RING

93211-03902-00

Unavailable

32

. CHAIN BALL

EU0-67835-30-00

Unavailable

33

COUPLING

EU0-67839-00-00

$6.36

34

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

35

PLATE, FIRE EXTINGUISHER

GA7-6593J-00-00

Unavailable

36

SCREW,FLAT HEAD

98780-04535-00

Unavailable

37

BRKT, FIRE EXTINGUISHER

GJ1-6593H-00-00

Unavailable

38

BOLT, WITH WASHER

90119-06908-00

$2.57

39

RIVET (EU0)

90267-48938-00

$5.00

40

PACKING 5

GJ1-U266D-01-00

Unavailable
