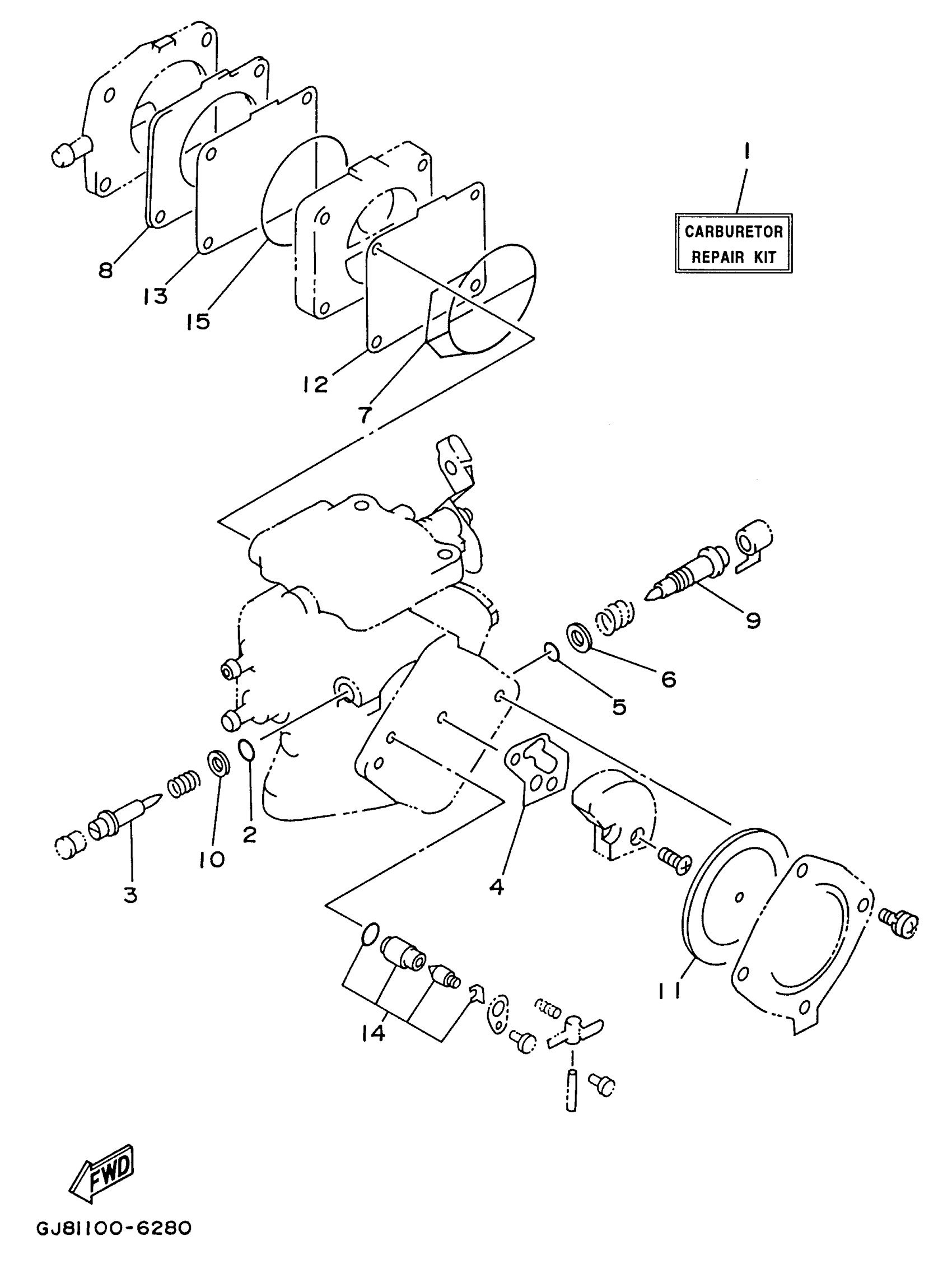

Yamaha RA700BU (WAVE RAIDER 700) 1996 REPAIR KIT 2 Diagram

#

Description

Price

1

CARBURETOR REPAIR KIT

6M6-W0093-12-00

Unavailable

2

. O-RING

6K8-14562-00-00

Unavailable

3

. PLATE, NEEDLE FITTING

6K8-14946-10-00

Unavailable

4

. GASKET

6K8-14536-11-00

Unavailable

5

O-RING

583-14561-00-00

$5.49

6

. WASHER

6K8-14537-00-00

Unavailable

7

. O-RING

6K8-14564-00-00

Unavailable

8

. GASKET, FUEL PUMP 1

6K8-24431-20-00

Unavailable

9

. SCREW, PILOT

6M6-14923-10-00

Unavailable

10

WASHER,NEEDLE

812-14235-00-00

Unavailable

11

. DIAPHRAGM, PUMP

6R7-14541-00-00

Unavailable

12

. DIAPHRAGM

6K8-24411-20-00

Unavailable

13

. VALVE, CHECK

6K8-24421-10-00

Unavailable

14

NEEDLE

61X-14916-16-00

Unavailable

15

. O-RING

6K8-14563-00-00

Unavailable
