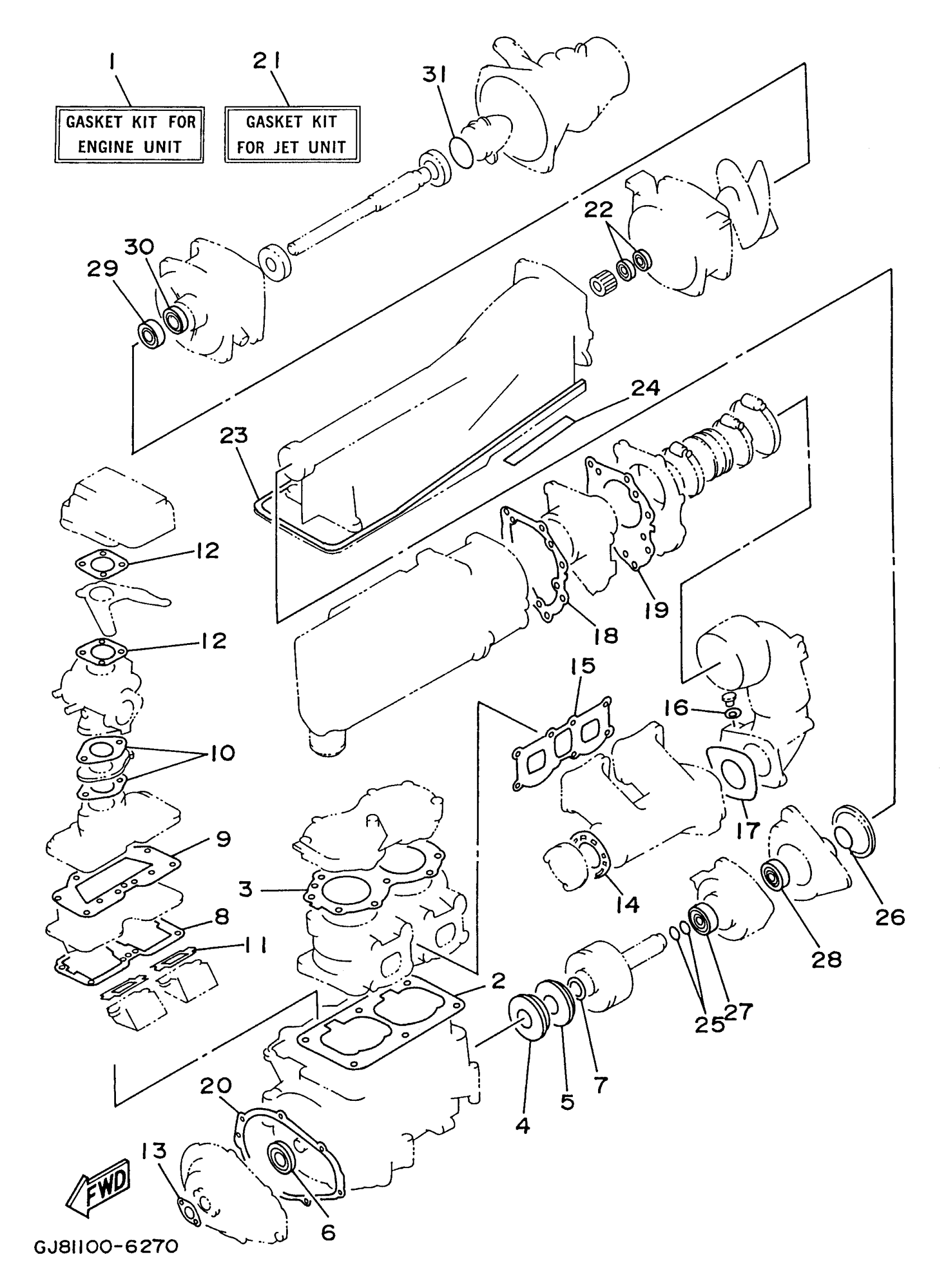

Yamaha RA700BU (WAVE RAIDER 700) 1996 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT

61X-W0001-02-00

Unavailable

2

GASKET, CYLINDER

6M6-11351-A2-00

Unavailable

3

GASKET, CYLINDER HEAD 1

61X-11181-A1-00

Unavailable

4

. OIL SEAL

93102-36M33-00

Unavailable

5

. OIL SEAL

93101-36M46-00

Unavailable

6

. OIL SEAL

93103-32M01-00

Unavailable

7

SEAL

62T-45127-01-00

Unavailable

8

GASKET

61X-13566-A1-00

Unavailable

9

GASKET

61X-13563-A1-00

Unavailable

10

GASKET, MANIFOLD

6M6-13556-A1-00

Unavailable

11

. GASKET, VALVE SEAT

61X-13621-A0-00

Unavailable

12

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

Unavailable

13

. GASKET, PUMP CASE

6R8-13116-A0-00

Unavailable

14

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

Unavailable

15

GASKET, EXHAUST PIPE

61X-14613-A1-00

Unavailable

16

GASKET

90430-08003-00

Unavailable

17

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

Unavailable

18

. GASKET, SILENCER

6R7-14755-A0-00

Unavailable

19

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

Unavailable

20

. GASKET, HOLE COVER

6M6-81365-A0-00

Unavailable

21

GASKET KIT FOR JET UNIT

63N-W0001-20-00

Unavailable

22

OIL SEAL(6R8)

93102-18M35-00

Unavailable

23

. FELT, PACKING

6R8-51367-01-00

Unavailable

24

. FELT, PACKING

63N-51368-00-00

Unavailable

25

O-RING(6R7)

93210-17MA4-00

Unavailable

26

O-RING

93210-35M72-00

Unavailable

27

OIL SEAL(62T)

93101-25M55-00

Unavailable

28

OIL SEAL

93101-24001-00

Unavailable

29

OIL SEAL(6R7)

93102-25M34-00

Unavailable

30

OIL SEAL(6R7)

93101-25M50-00

Unavailable

31

. O-RING

93210-46M16-00

Unavailable
