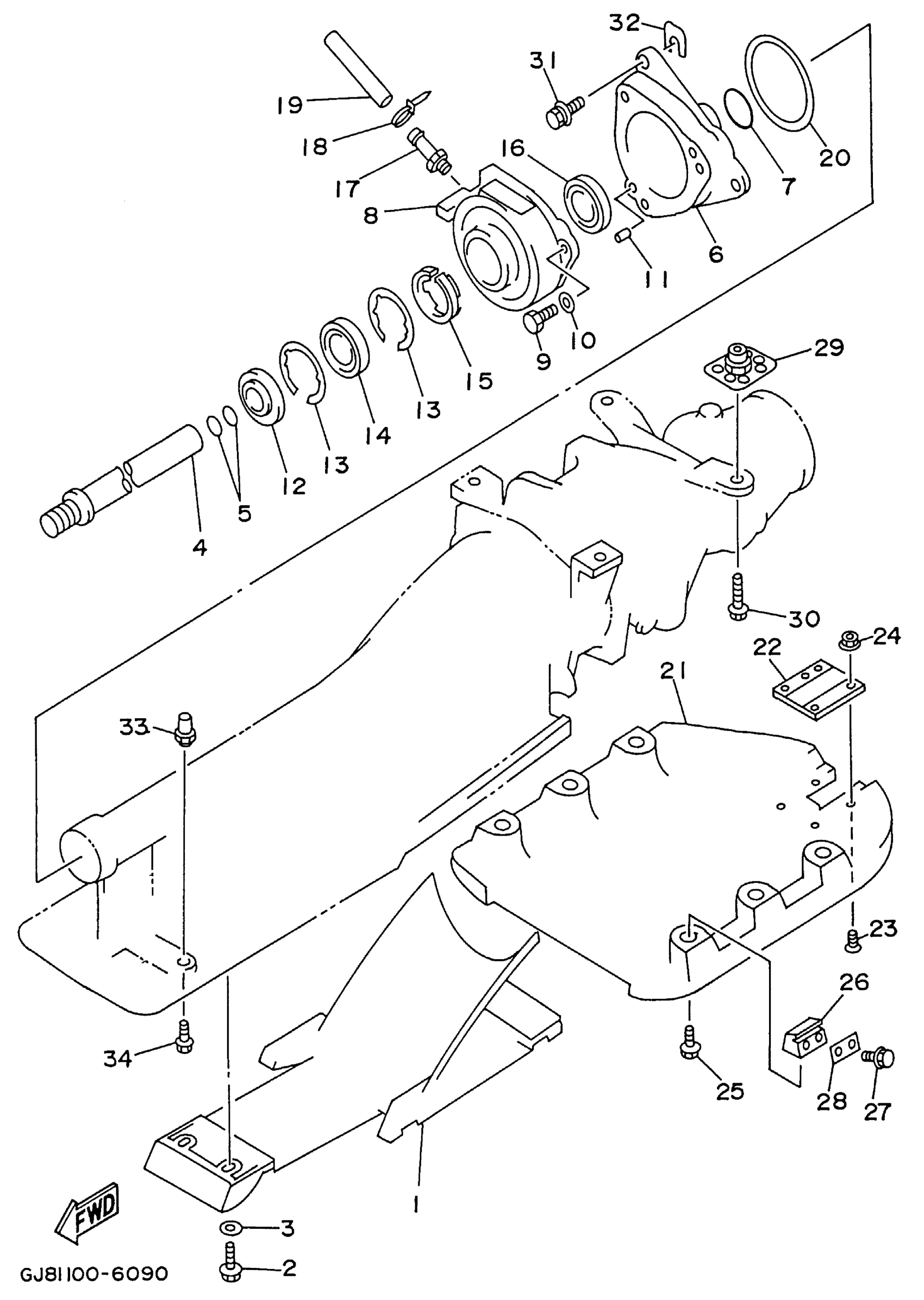

Yamaha RA700BU (WAVE RAIDER 700) 1996 JET UNIT 2 Diagram
#
1
SCREEN, INTAKE
63N-51333-02-94
Unavailable
2
BOLT (FJ0)
97080-06018-00
Unavailable
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
SHAFT,COUPLER
6R8-51323-10-00
Unavailable
5
O-RING(6R7)
93210-17MA4-00
$7.49
6
HOUSING, BEARING
62G-45331-01-94
Unavailable
7
O-RING
93210-35M72-00
$14.99
8
HOUSING, BEARING
61X-G5332-00-00
Unavailable
9
BOLT (62G)
97095-08025-00
$8.49
10
.. WASHER, PLATE
92990-08600-00
Unavailable
11
PIN, DOWEL (614)
93606-12019-00
$4.24
12
OIL SEAL(62T)
93101-25M55-00
$30.99
13
CIRCLIP
93430-47M04-00
Unavailable
14
BEARING(62G)
93306-205U6-00
Unavailable
15
SPACER
63M-51348-00-00
Unavailable
16
OIL SEAL
93101-24001-00
Unavailable
17
NIPPLE, HOSE
61L-45378-00-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
HOSE (L445)
90445-09M21-00
Unavailable
20
SEAL
6K8-45127-00-00
Unavailable
21
PLATE 2
GJ1-U273B-00-00
Unavailable
22
COVER, PLATE
GJ8-6273C-00-00
Unavailable
23
SCREW(617)
98780-05012-00
Unavailable
24
NUT, FLANGE
95720-05300-00
Unavailable
25
BOLT, WITH WASHER
90119-08829-00
Unavailable
26
PACKING
GJ1-62733-00-00
Unavailable
27
BOLT, WITH WASHER
90119-08907-00
Unavailable
28
PACKING
GH1-62663-01-00
Unavailable
29
NUT
90179-10925-00
Unavailable
30
BOLT, WITH WASHER
90119-109U8-00
Unavailable
31
BOLT, WITH WASHER
90119-08907-00
Unavailable
32
SHIM (T=0.5)
GD0-67249-A0-00
Unavailable
32
SHIM (T=1.0)
GD0-67249-00-10
Unavailable
32
SHIM (0.5)
GD0-U7249-00-05
Unavailable
32
SHIM (0.5)
GD0-U7249-00-05
Unavailable
33
NUT(FJ0)
90179-06947-00
Unavailable
34
BOLT, WITH WASHER
90119-06896-00
Unavailable
